- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- POS Terminal

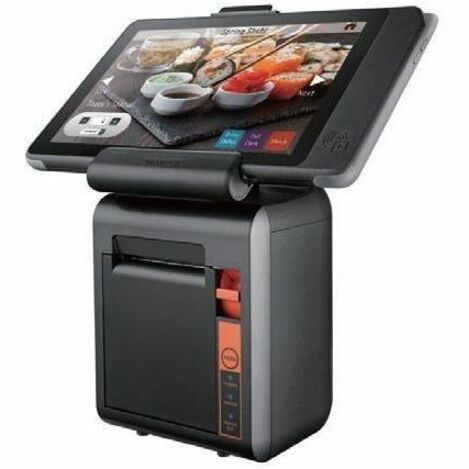

AIM-37 is an industrial-grade mobile point-of-sale (mPOS) system with a built-in barcode scanner and HD Corning® Gorilla® Glass display. The system design is surprisingly thin (17 mm) with an IP54-rated front panel protection from water and dust, as well as a directly bonded touchscreen with water tolerance and palm rejection for enhanced operation. AIM-37 also supports multiple OS and optional modules configurations for flexible operations. Additionally, AIM-37 can be integrated with various peripherals and flexible installation mounts to support diverse applications.
- Technical Information
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 4.2
- Features
- Anti-glare
- Anti-fingerprint Coating
- Gorilla Glass 3
- Anti-reflective
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Type
- Atom
- Processor Core
- Quad-core (4 Core)
- Maximum Turbo Speed
- 1.92 GHz
- Processor Model
- x5-Z8350
- Memory
- Standard Memory
- 4 GB
- Memory Technology
- DDR3L SDRAM
- Memory Card Slot
- Yes
- Memory Card Supported
- microSD
- Maximum Memory Card Size Supported
- 128 GB
- Storage
- Flash Memory Capacity
- 64 GB
- Flash Memory Type
- Embedded MultiMediaCard (e.MMC)
- Display & Graphics
- Screen Size
- 10.1"
- Display Screen Type
- LED
- Screen Mode
- WXGA
- Panel Technology
- In-plane Switching Technology (IPS)
- Touchscreen
- Yes
- Touchscreen Technology
- Projected Capacitive
- Multi-touch Screen
- Yes
- Network & Communication
- Wireless LAN
- Yes
- Interfaces/Ports
- USB
- Yes
- Powered USB
- Yes
- Number of Micro USB 2.0 Ports
- 1
- Built-in Devices
- Number of Speakers
- 1
- Speaker Power
- 2 W
- Software
- Operating System
- Android 6.0 Marshmallow
- Power Description
- Power Source
- DC Power
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Black
- Cool Gray
- Height
- 0.7"
- Width
- 11.4"
- Depth
- 6.9"
- Weight (Approximate)
- 1.98 lb
- Miscellaneous
- Package Contents
- AIM-37 10.1" Industrial Tablet-Based Mini POS System
- Barcode Reader
- Adapter Plug
- Durability
- Dust Resistant
- Liquid Resistant
- Ingress Protection (IP) Rating
- IP54
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
