Introduction

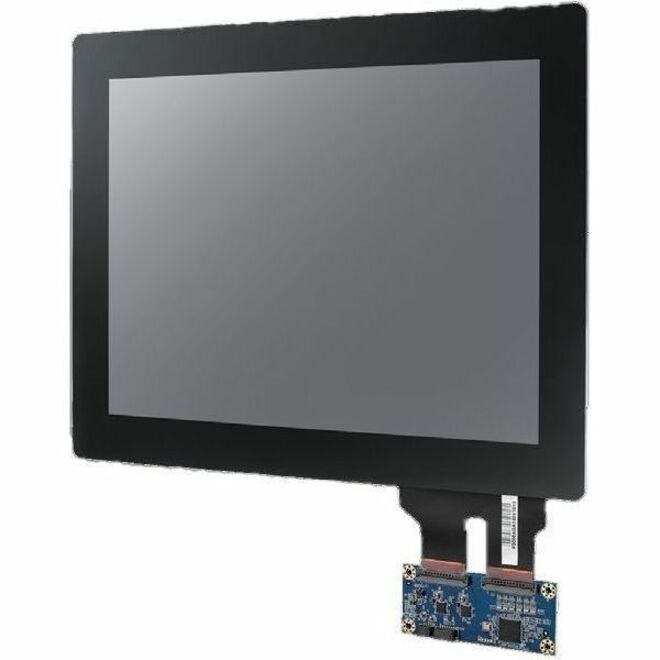

The Advantech IDK-1110P series comes with a 10.4" industrial grade LCD display with P-cap touch. The series is with touch with edge to edge design. IDK-1110P series supports P-cap touch with low power consumption at the maximum of 10 W. IDK-1110P series is ideal for embedded applications which customers have maximum flexibility for mechanical design.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDK-1110P
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 10"
- Viewable Screen Size
- 10.4"
- Screen Mode
- XGA
- Response Time
- 25 ms
- Horizontal Viewing Angle
- 176°
- Vertical Viewing Angle
- 176°
- Backlight Technology
- LED
- Features
- Edge-to-Edge Glass Design
- Video
- Maximum Resolution
- 1024 x 768
- Color Supported
- 16.2 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 500 Nit
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touchpoints
- 5
- Interfaces/Ports
- USB
- Yes
- Environmental Conditions
- Operating Temperature Range
- -4°F (-20°C) to 158°F (70°C)
- Power Description
- Maximum Power Consumption
- 10 W
- Physical Characteristics
- Height
- 8"
- Width
- 9.9"
- Depth
- 0.4"
- Weight (Approximate)
- 1.10 lb
- Miscellaneous
- Package Contents
- 10.4" XGA Industrial Display Kit With Touch Solution
- 1 x Touch controller
- A cable USB 4P/1*4P-1.0 180cm
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
