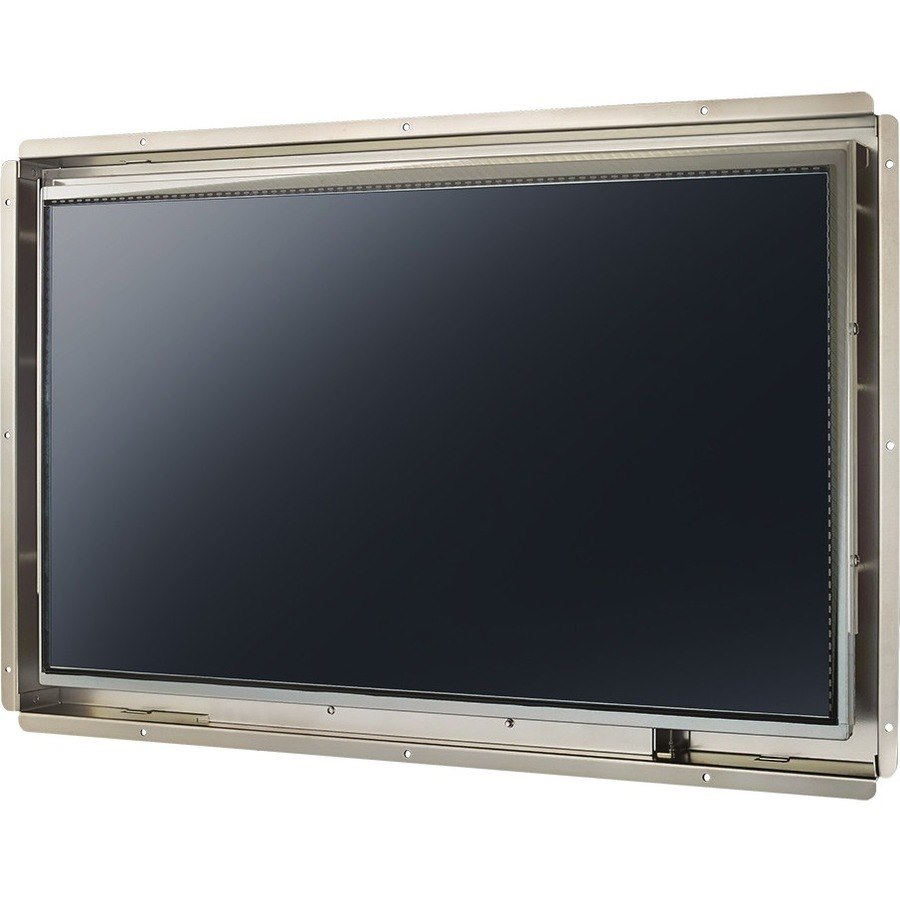

The Advantech IDS-3118W Open Frame Monitor Series offer ultra slim design supporting a 18.5" 1366 x 768 pixels TFT LCD screen, with 0 ~ 55° C operating temperature, and optional resistive and projective capacitive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDS-3118W
- Product Type
- Open-frame LCD Touchscreen Monitor
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Screen Size Class
- 19"
- Viewable Screen Size
- 18.5"
- Screen Mode
- HD
- Response Time
- 5 ms
- Mount Type
- Rear Mount
- Backlight Technology
- LED
- Video
- Maximum Resolution
- 1366 x 768
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 300 Nit
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive

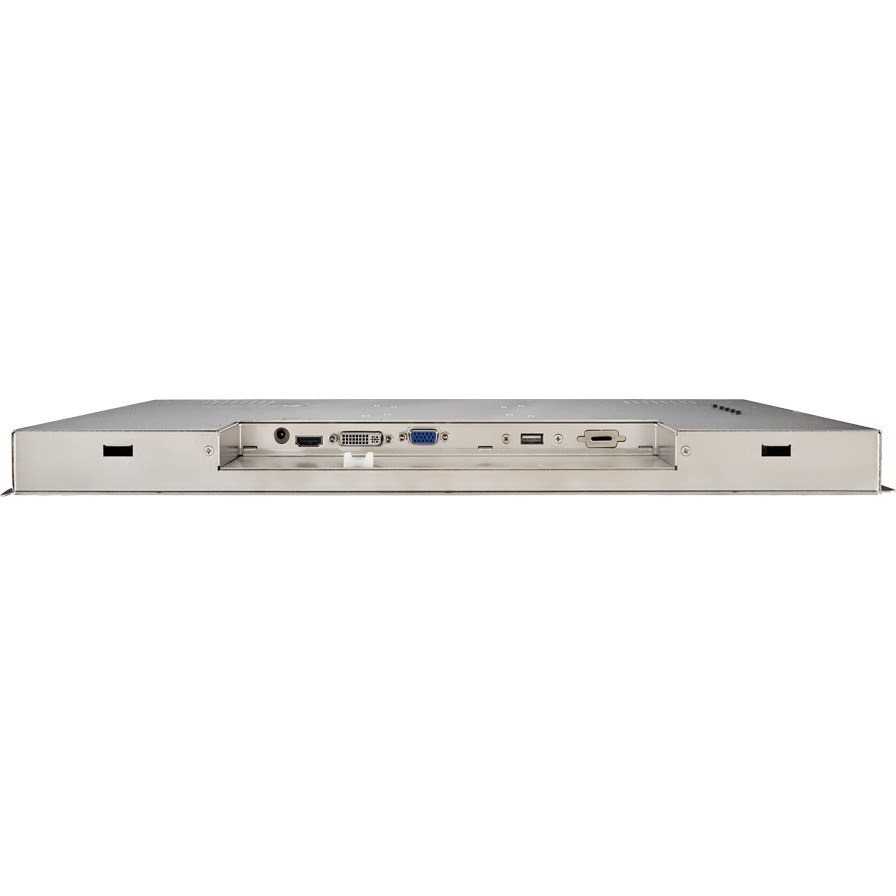

- Interfaces/Ports
- DVI
- Yes
- HDMI
- Yes
- USB
- Yes
- VGA
- Yes
- Number of USB Ports
- 1
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Height
- 12"
- Width
- 18.8"
- Depth
- 1.4"
- Weight (Approximate)
- 10.36 lb
- Miscellaneous
- Package Contents
- IDS-3118WP-30HDA1E Open Frame LCD Touchscreen Monitor
- 1 x M Cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA cable 15P(M) 1.8 meter
- 8 x Clamper
- 8 x Screw of clamper M4_25L
- 1 x Cable clamp
- 1 x Screw of cable clamp
- 1 x cable tie
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
