- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Packaged Quantity
- 1
- Product Type
- RAM Module

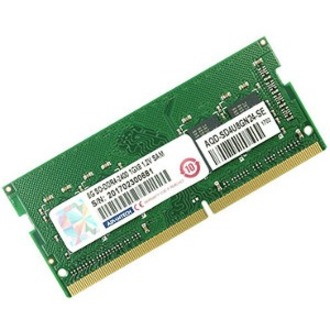

DDR4 1.2V SO-DIMM is high-speed, low power memory module that use 1Gx8bits DDR4 SDRAM in FBGA package and a 4096 bits serial EEPROM on a 260-pin printed circuit board. DDR4 1.2V SO-DIMM is a Dual In-Line Memory Module and is intended for mounting into 260-pin edge connector sockets.
Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
- Technical Information
- Memory Size
- 8 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Memory Speed
- 2400 MHz
- Memory Standard
- DDR4-2400/PC4-19200
- Error Checking
- Non-ECC
- Signal Processing
- Unbuffered
- Physical Characteristics
- Number of Pins
- 260-pin
- Form Factor
- SODIMM
- Thickness
- 145.7 mil
- Width
- 1.2"
- Length
- 2.7"
- Miscellaneous
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
