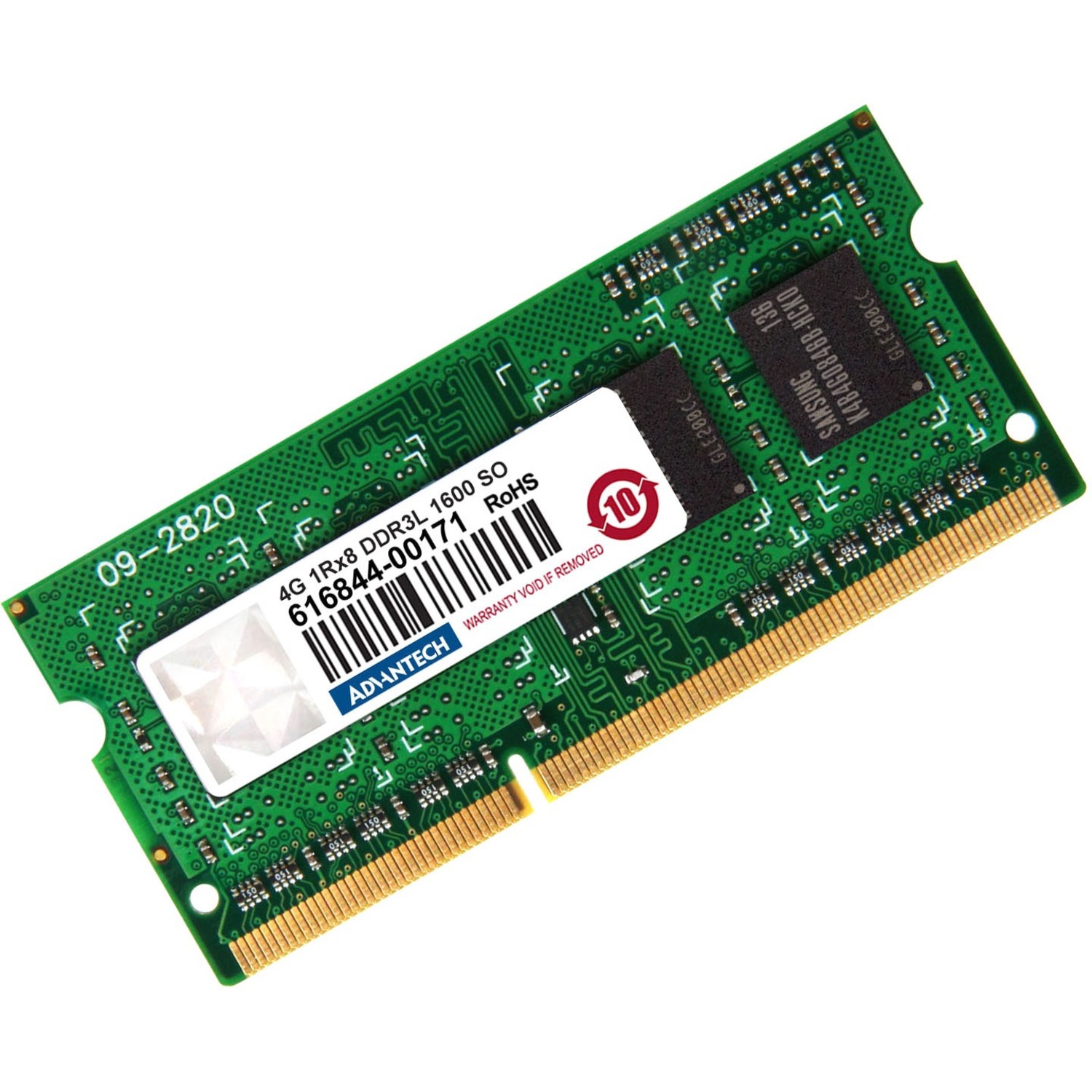

AQD-SD3L4GN16-SG is DDR3 Unbuffered SO-DIMM,non-ECC,high-speed, low power memory module that use 8 pcs of 512Mx8bits DDR3 low voltage SDRAM in FBGA package and a 2048 bits serial EEPROM on a 204-pin printed circuit board. AQD-SD3L4GN16-SG is a Dual In-Line Memory Module and is intended for mounting into 204-pin edge connector sockets. Synchronous design allows precise cycle control with the use of system clock. Data I/O transactions are possible on both edges of DQS. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- RAM Module
- Technical Information
- Memory Size
- 4 GB
- Memory Technology
- DDR3 SDRAM
- Memory Voltage
- 1.35 V
- Memory Speed
- 1600 MHz
- Memory Standard
- DDR3-1600/PC3-12800
- Error Checking
- Non-ECC
- Signal Processing
- Unbuffered
- Physical Characteristics
- Number of Pins
- 204-pin
- Form Factor
- SODIMM
- Width
- 1.2"
- Length
- 2.7"
- Miscellaneous
- Environmentally Friendly
- Yes
