- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Packaged Quantity
- 1
- Product Type
- Digital Signage Appliance

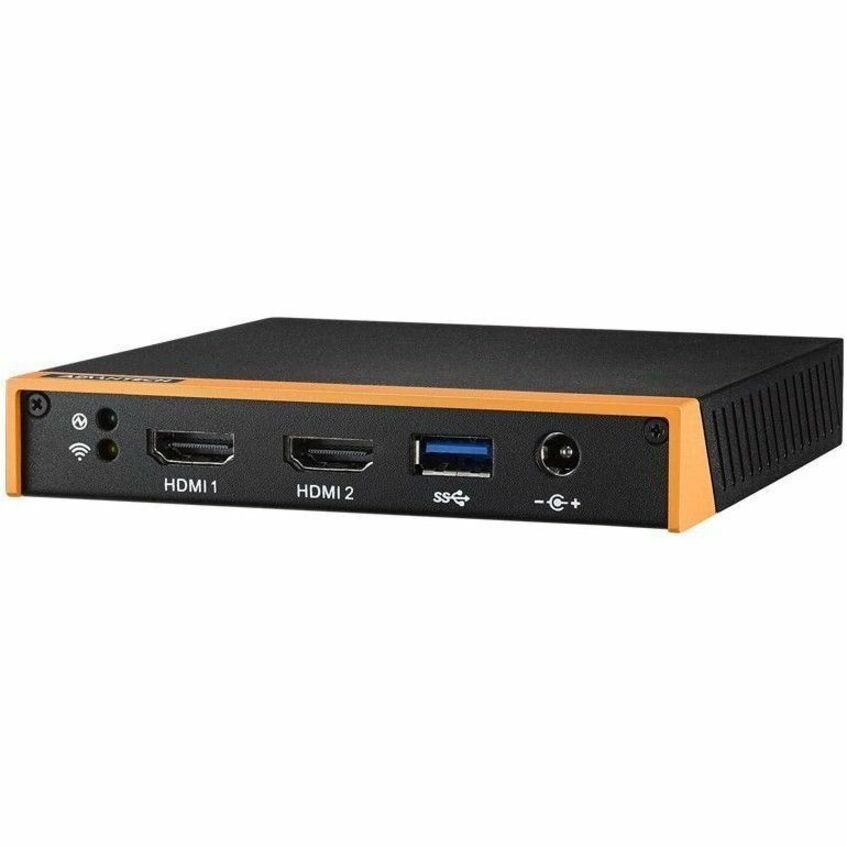

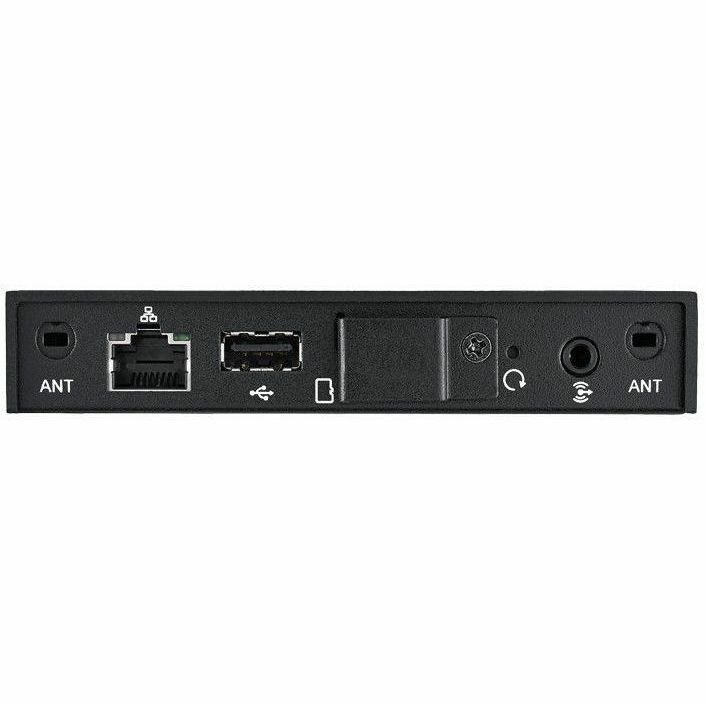

DS-100 is an ultra-compact signage player in the smallest possible palm size for optimized graphics experience. It's powered by the latest ARM dual-core Cortex-A72 and quad-core Cortex-A53 processor, low power but not giving in to performance. It's on the cutting edge in terms of the display capability among Android signage players to enable dual HDMI outputs, maximum resolution up to UHD 4K 60Hz + FHD 1080P. With dual LAN to enable interconnectivity, DS-100 simplifies deployment, maintenance, and management of remote devices. Design with 4K graphics, as well as connectivity and manageability, DS-100 is your ideal digital signage player for retail, QSR application in the IoT era.
- Processor & Chipset
- Combined Processor Core
- Hexa-core
- Processor Type
- Cortex A72
- Processor Core
- Dual-core (2 Core)
- 2nd Processor Type
- Cortex A53
- 2nd Processor Core
- Quad-core (4 Core)
- Memory
- Standard Memory
- 2 GB
- Memory Technology
- LPDDR3
- Display & Graphics
- Graphics Controller Model
- Mali-T860MP4
- Video
- Scan Format
- 2160p
- Network & Communication
- Ethernet
- Yes
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- Number of USB 2.0 Ports
- 1
- Number of USB 3.0 Ports
- 1
- Number of HDMI Outputs
- 2
- Number of Network (RJ-45) Ports
- 2
- Software
- Operating System
- Android 7.1.2 Nougat
- Power Description
- Input Voltage
- 12 V DC
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 113°F (45°C)
- Minimum Storage Temperature
- -4°F (-20°C)
- Maximum Storage Temperature
- 158°F (70°C)
- Maximum Operating Humidity
- 95%
- Minimum Storage Humidity
- 5%
- Maximum Storage Humidity
- 80%
- Physical Characteristics
- Mount Type
- Wall Mountable
- Height
- 1.1"
- Width
- 5.3"
- Depth
- 5.1"
- Weight (Approximate)
- 1.61 lb
- Miscellaneous
- Package Contents
- DS-100 Digital Signage Appliance
- 1 x 12V Power Adapter
- 2 x Wall Mount Brackets
- 4 x Rubber Feet with Screws
- 1 x User Quick Guide
- Application/Usage
- Retail
