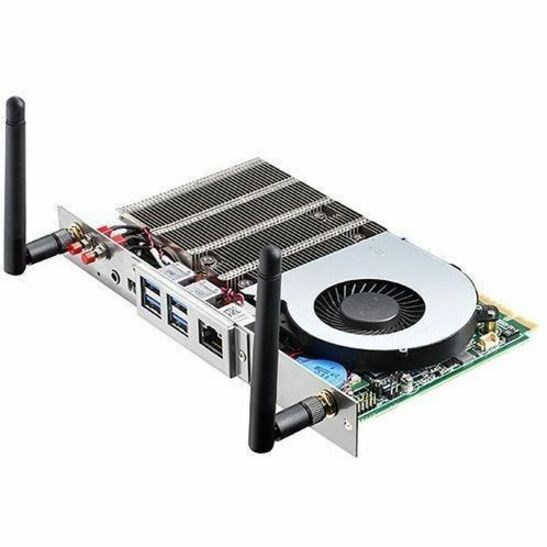

The DS-200 design is based on the Intel SDM specification and is powered by 8th Gen. Intel® CoreTM processors. DS-200 delivers 4K UHD output and smooth content streaming via a card edge connector, while maintaining high-energy efficiency (45 watts). DS-200 allows slot-in integration that reduces space requirements and lowers deployment and field maintenance costs. It also features built-in I/O such as HDMI, mini DP++, USB 3.1, and a single LAN (RJ-45). DS-200 enables media playback and display and is ideal for all-in-one signage applications with space constraints.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- DS-200
- Packaged Quantity
- 1
- Product Type
- Digital Signage Appliance
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Model
- i5-8400H
- Chipset Manufacturer
- Intel
- Chipset Model
- QM370
- Memory
- Standard Memory
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- Graphics 630
- Video
- Scan Format
- 2160p
- Network & Communication
- Ethernet
- Yes
- Wireless LAN
- Yes
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Serial
- Yes
- Number of DisplayPorts
- 1
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI 2.0 Ports
- 1
- Number of DisplayPort 1.2 Ports
- 1
- Software
- Operating System
- Windows 10
- Power Description
- Input Voltage
- 12 V DC
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 131°F (55°C)
- Maximum Operating Humidity
- 95%
- Physical Characteristics
- Height
- 4.6"
- Width
- 7.7"
- Depth
- 1"
- Weight (Approximate)
- 2.20 lb
- Miscellaneous
- Package Contents
- DS-200 DS-200GB-U5A1E Digital Signage Appliance
- 1 x English Manual
- 1 x China RoHS
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
