NetWay1X is a single port midspan PoE/PoE+ compliant power injector which provides power and passes data (e.g. video) for PoE/PoE+ compliant devices. Devices may be located up to 100m (328 ft.) from NetWay1X. A NetWayXTX repeater module can be utilized to extend the distance an additional100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on device port requirement. NetWay1X is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Line
- NetWay
- Packaged Quantity
- 1
- Product Type
- PoE Injector
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 24 V AC
- 24 V DC
- Maximum Input Current
- 1.50 A
- Maximum Output Power
- 30 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100Base-TX
- Output Ports
- 1 x 10/100Base-TX
- Physical Characteristics
- Height
- 1"
- Width
- 3.5"
- Depth
- 3.5"
- Weight (Approximate)
- 1.50 lb
- Miscellaneous
- Package Contents

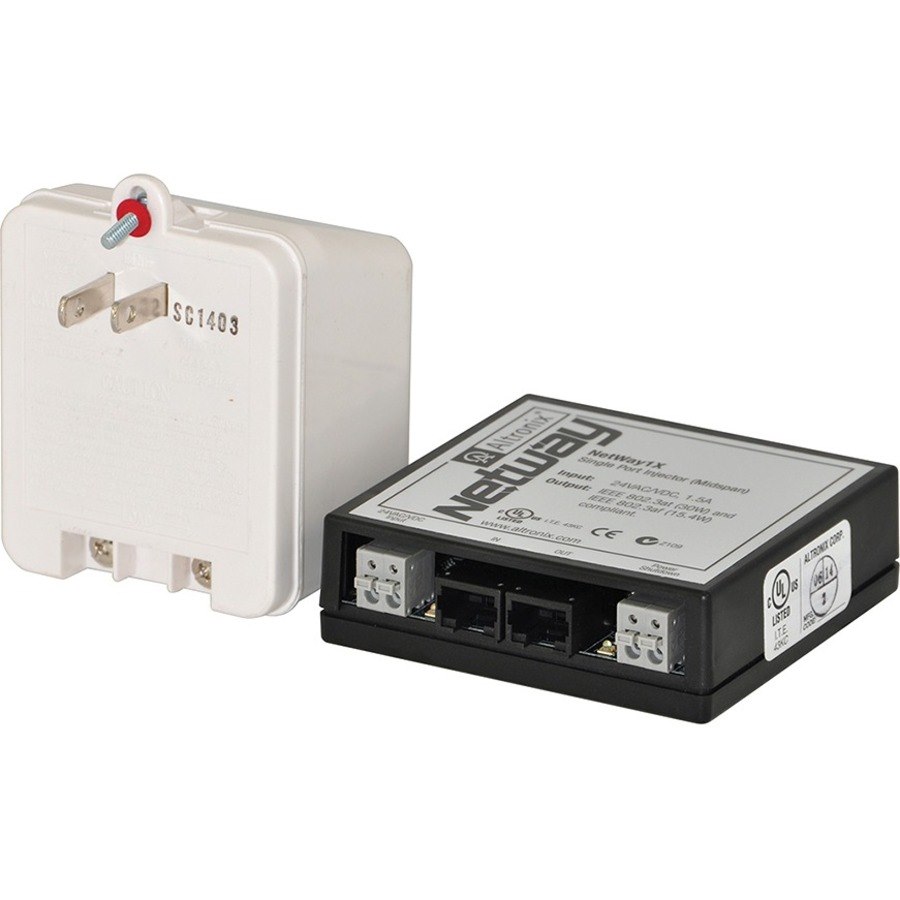

- NetWay1XP Power over Ethernet Injector

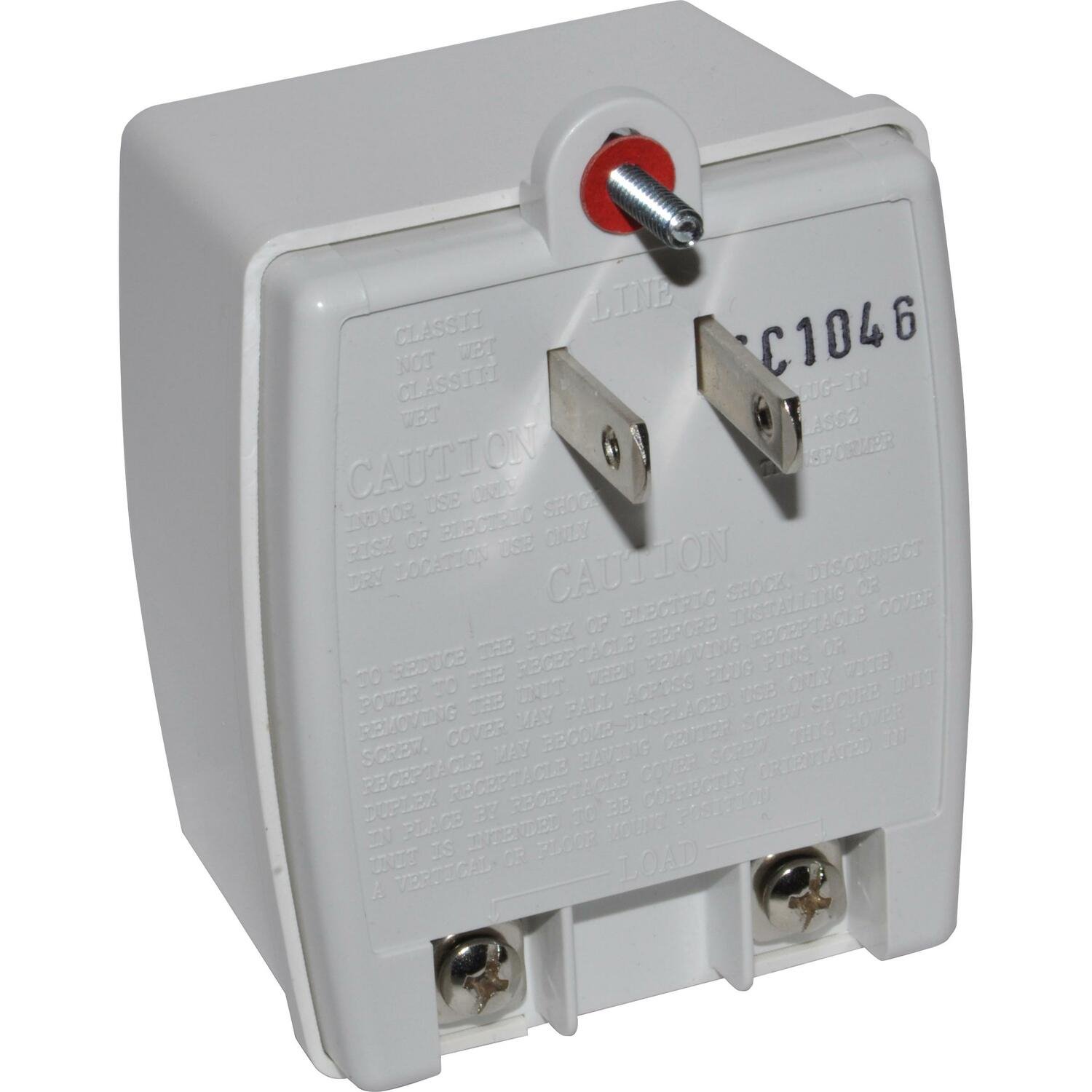

- 1 x TP2440 Plug-in Transformer
- Additional Information
- Port Status LEDs
- Compatibility
- IP Cameras
- Certifications & Standards
- IEEE 802.3at
- IEEE 802.3af
- UL
- cULus
- CE
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United States
- NDAA Compliant
- Yes
