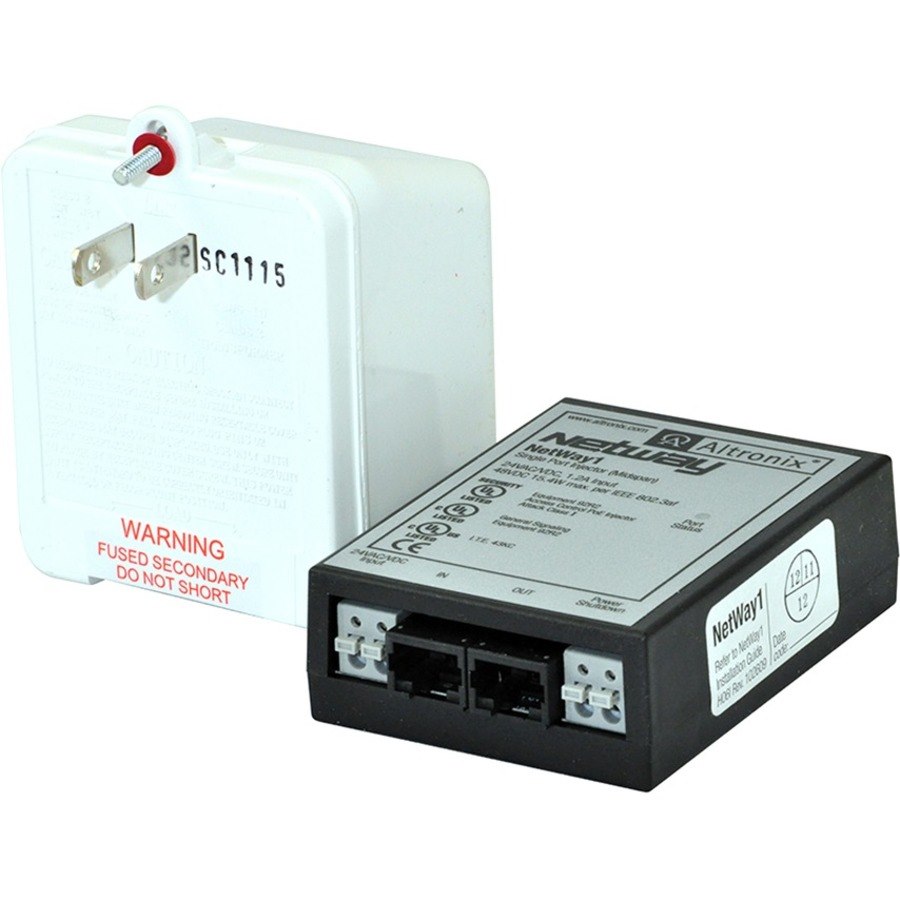

Altronix NETWAY1P Power over Ethernet Injector

  • Part: 1253587
  • Model: NETWAY1P
$66.00

Availability

Out of Stock

Altronix NetWay1P is a single port midspan PoE compliant power injector which provides power and passes data(e.g. video) for PoE compliant devices. Devices may be located up to 100m (328 ft.) from NetWay1P. A NetWayXT repeater module can be utilized to extend the distance an additional100m (328 ft.) for a total range of up to 200m (656 ft.). A maximum range of 600m (1968 ft.) is possible using multiple repeaters, based on device port requirement. NetWay1 is capable of supporting non-PoE compliant fixed IP cameras by utilizing NetWay1512 adapter.

  • General Information
    • Manufacturer
    • Altronix Corporation
    • Manufacturer Website Address
    • http://www.altronix.com
    • Brand Name
    • Altronix
    • Product Line
    • NetWay
    • Packaged Quantity
    • 1
    • Product Type
    • PoE Injector
  • Warranty
    • Limited Warranty
    • Lifetime

  • Power Description
    • Input Voltage
    • 24 V AC
    • 24 V DC
    • Maximum Output Voltage
    • 48 V DC
    • Maximum Input Current
    • 1.20 A
    • Maximum Output Power
    • 15.40 W
  • Interfaces/Ports
    • Input Ports
    • 1 x 10/100Base-TX
    • Output Ports
    • 1 x 10/100Base-TX
  • Physical Characteristics
    • Height
    • 1"
    • Width
    • 2.5"
    • Length
    • 3.8"
    • Weight (Approximate)
    • 3.15 lb
  • Miscellaneous
    • Package Contents
      • NETWAY1P Power over Ethernet Injector
      • TP2440 Plug-in Transformer
    • Compatibility
    • IP Cameras

    • Certifications & Standards
      • UL Listed for Information Technology Equipment (UL 60950-1)
      • Access Control Systems (UL294)
      • CUL Listed for Information Technology Equipment (UL 60950-1)
      • CUL Listed - CSA Standard C22.2 No.205-M1983
      • CE Approved
      • IEEE 802.3af compliant
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Country of Origin
    • United States
    • NDAA Compliant
    • Yes
