- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- M30-VE
- Product Type
- Network Camera

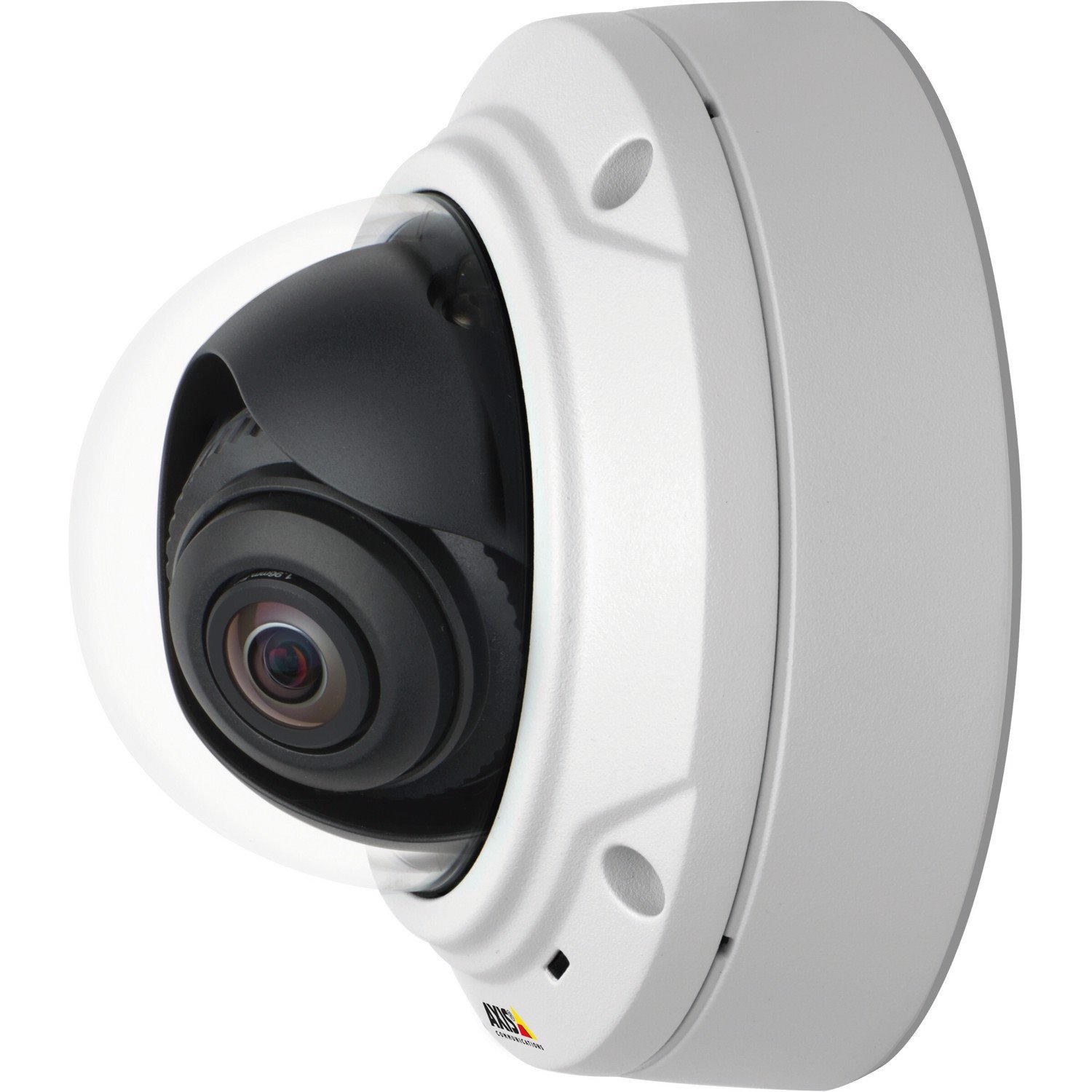

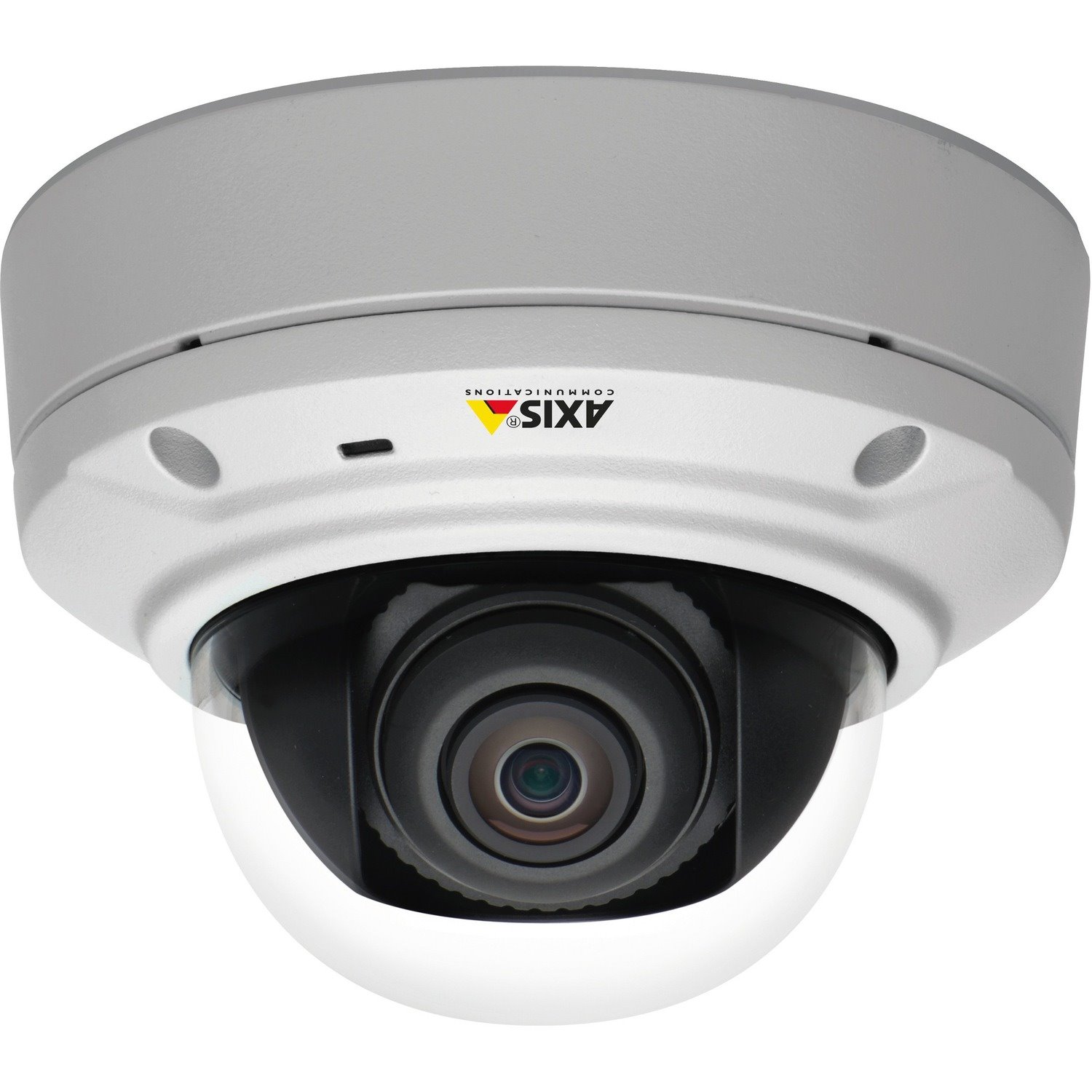

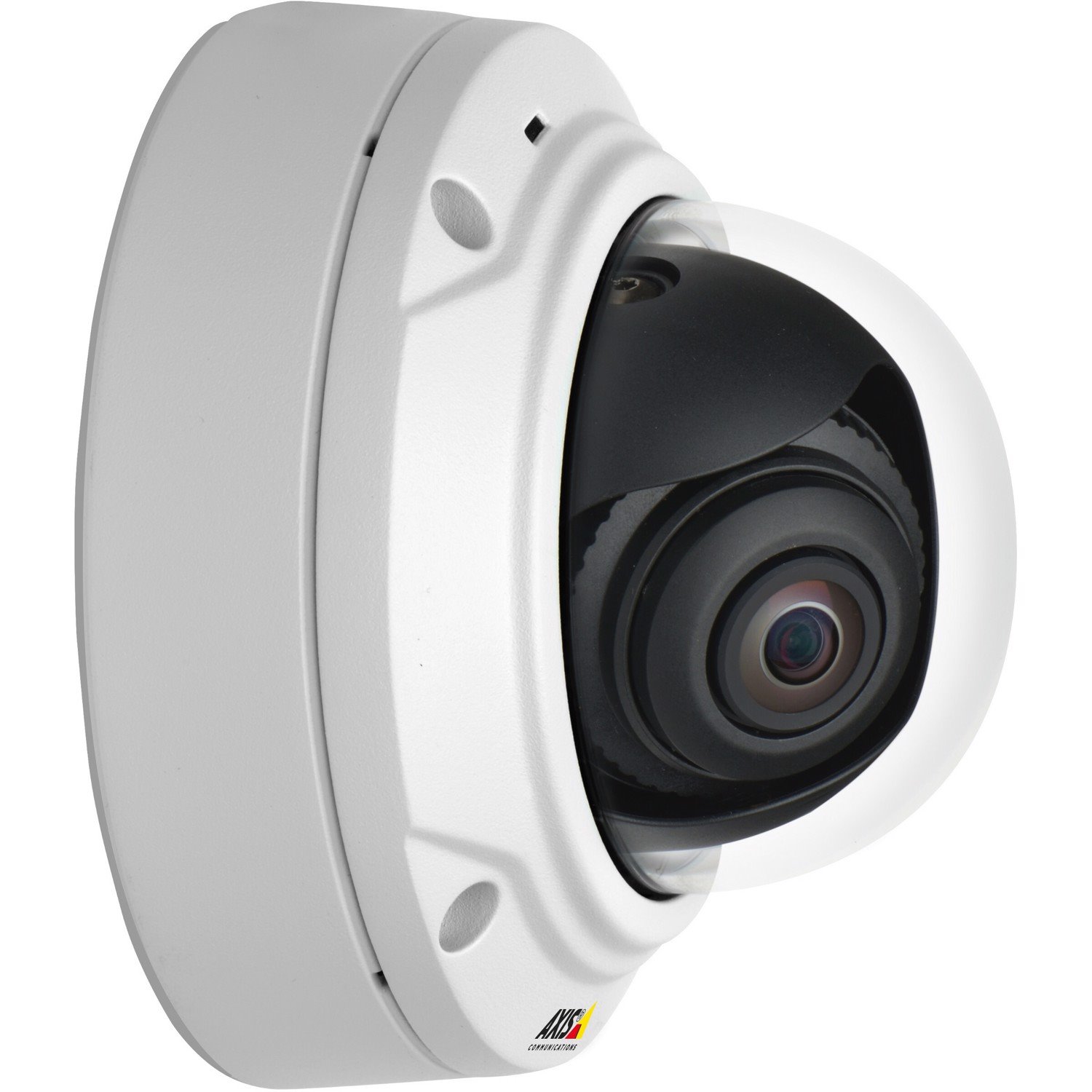

AXIS M30 - VE Network Cameras, which are part of the AXIS M30 Series, are affordably priced vandal - resistant HDTV fxed mini domes for excellent video during day and night - time condi- tions in indoor or outdoor environments. They are ideal for installation inside or outside the entrance of a hotel, boutique, restaurant, offce or school.
- Warranty
- Limited Warranty
- 1 Year
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/3.6"
- Color Supported
- Color
- Monochrome
- Field of View
- 106°
- Effective Camera Resolution
- 3 Megapixel
- Video
- Video Formats
- H.264
- MJPEG
- MPEG-4
- Maximum Video Resolution
- 2048 x 1536
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2 mm
- Lens Included
- Yes
- Lens Mount Type
- M12-mount
- Wide Angle
- Yes
- Maximum Aperture
- f/2
- Exposure
- Shortest Shutter Speed
- 1/30500 Second
- Longest Shutter Speed
- 2 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- IPv4
- IPv6
- HTTP
- HTTPS
- SSL/TLS
- DiffServ (QoS)
- FTP
- SMB/CIFS
- SMTP
- Bonjour
- UPnP
- SNMP (v1/v2c/v3)
- SNMP (MIB-2)
- DNS
- DynDNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SOCKS
- Storage
- Flash Memory Capacity
- 128 MB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 4.50 W
- Physical Characteristics
- Form Factor
- Dome
- Durability
- Vandal Resistant
- Impact Resistant
- Color Family
- White
- Product Color
- White
- Height
- 3.7"
- Diameter
- 5.2"
- Weight (Approximate)
- 1.60 lb
- Miscellaneous
- Features
- Day/Night
- SD Card Local Storage
- Indoor/Outdoor
- Indoor/Outdoor
- Package Contents
- M3026-VE Network Camera
- Drill Hole Template
- Resitorx L - Key
- Terminal Block Connector
- Installation Guide
- Installation and Management Software CD
- Windows Decoder 1 - User License
- Certifications & Standards
- EN 55022 Class B
- EN 55024
- EN 61000 - 6 - 1
- EN 61000 - 6 - 2
- FCC Part 15 Subpart B Class B
- ICES - 003 Class B, VCCI Class B
- AS/NZS CISPR 22 Class B
- KCC KN22 Class B
- KN24
- IEC/EN/UL 60950 - 22
- EN 50581
- IEC 60529 IP66
- NEMA 250 Type 4X
- IEC 62262 IK10
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- Security Features
- Password protection
- IP address fltering
- HTTPS encryption,
- IEEE 802.1X b network access control
- Digest authentication
- User access log
