- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- P12
- Product Type
- Network Camera

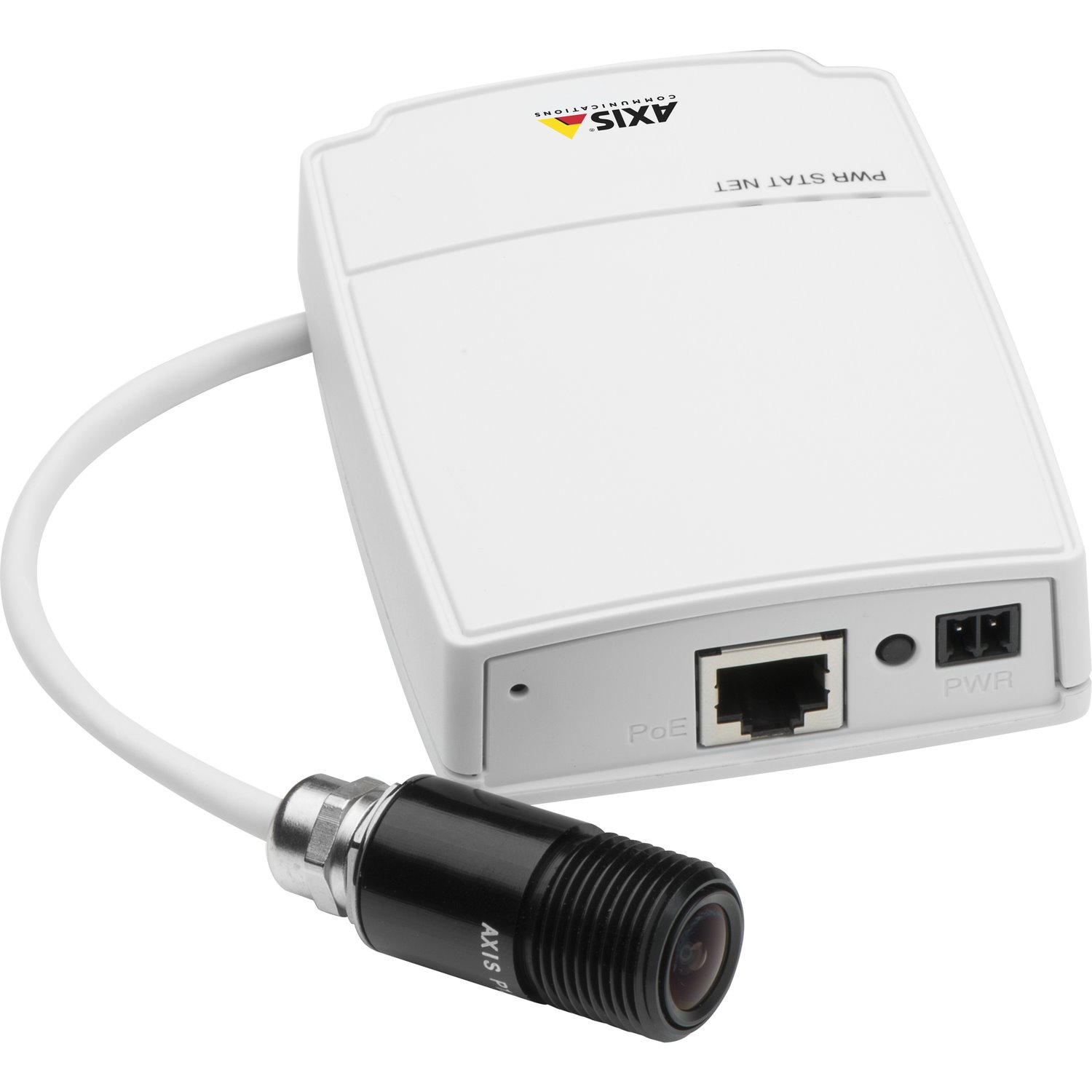

AXIS P12 Network Camera Series offers small-sized, high-performance cameras for exceptionally discreet indoor and outdoor surveillance. These cameras are perfect for covert installations or where a discreet and compact surveillance solution is required.
AXIS P12 Network Cameras is a series of uniquely designed cameras for exceptionally discreet surveillance. The series comprises three models; two pinhole models, AXIS P1204 and AXIS P1214, which are ideal for indoor installations, and AXIS P1214-E, which is an IP66-rated model that can be installed both indoors and outdoors.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Display & Graphics
- Image Sensor Type
- RGB CMOS
- Image Sensor Size
- 1/4"
- Maximum Illumination
- 10000 lux
- Color Supported
- Color
- Field of View
- 81°
- Effective Camera Resolution
- 1.3 Megapixel
- Video
- Video Formats
- H.264
- MJPEG
- MPEG-4
- Maximum Video Resolution
- 1280 x 720
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Lens Included
- Yes
- Maximum Aperture
- f/2
- Focus Modes
- Fixed Focus
- Exposure
- Shortest Shutter Speed
- 1/24500 Second
- Longest Shutter Speed
- 1/6 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Ethernet Technology
- Fast Ethernet
- Protocols
- IPv4
- IPv6
- HTTP
- HTTPS
- SSL/TLS
- QoS
- FTP
- SMB/CIFS
- SMTP
- Bonjour
- UPnP
- SNMP (MIB-2)
- SNMP
- DNS
- DynDNS
- NTP
- RTSP
- RTP
- TCP
- UDP
- IGMP
- RTCP
- ICMP
- DHCP
- ARP
- SOCKS
- Storage
- Flash Memory Capacity
- 128 MB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 6.49 W
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Height
- 2"
- Width
- 0.8"
- Miscellaneous
- Features
- Motion Detection
- Indoor/Outdoor
- Outdoor
- Package Contents
- P1214-E Network Camera
- Mounting Kit
- Installation Guide
- Axis Warranty Document
- AVHS Authentication Key
- Installation and Management Software CD
- Windows Decoder 1-user License
- Certifications & Standards
- EN 55022 Class B
- EN 61000-3-2
- EN 61000-3-3
- EN 61000-6-1
- EN 55024
- FCC Part 15 Subpart B Class B
- ICES-003 Class B
- VCCI Class B
- C-tick AS/NZS CISPR 22
- KCC Class B
- EN/IEC 60950-1
- IEC 60068-2-6 (Vibration) Class 4M4
- IEC 60068-2-27 (shock) Class 4M3
- IEC 60068-2-1
- IEC 60068-2-2
- IEC 60068-2-78 Class 3K3
- EN/IEC 60950-22
- IEC 60529 IP66
- NEMA 250 Type 4X
- IEC 60068-2-78 Class 4K3
- IEC 60068-2-14
- IEC 60068-2-30
- Security Features
- Password Protection
- IP Address Filtering
- HTTPS Encryption
- IEEE 802.1X Network Access Control
- Digest Authentication
- User Access Log
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
