- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Type
- Isolation/Step-Down Transformer

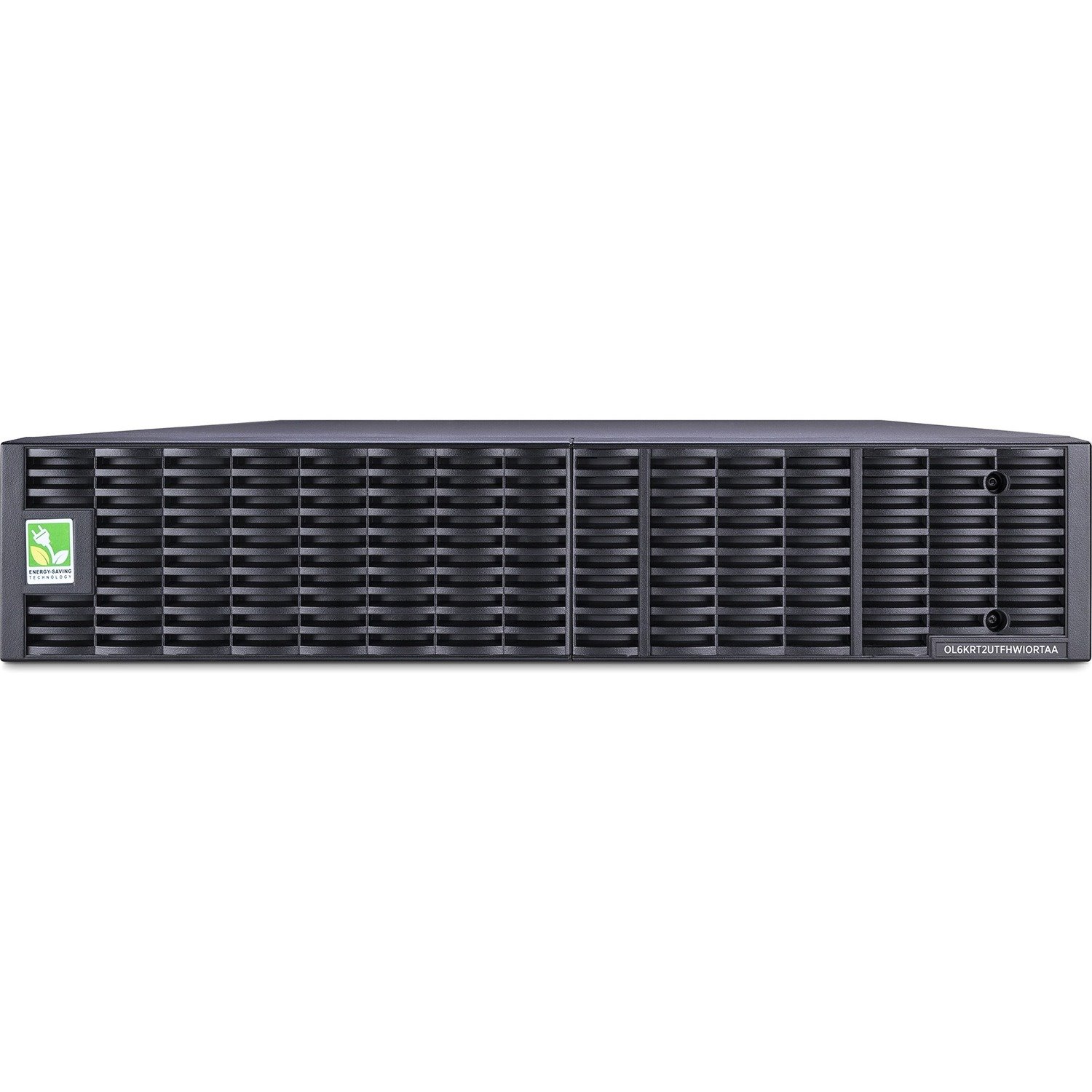

The CyberPower Smart App Online OL6KRT2UTFHWIORTAA rack/tower step-down isolation transformer converts 208VAC input voltage from utility power, UPS's, and generators to 120VAC output. The OL6KRT2UTFHWIORTAA has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R outlets that can support output to NEMA 5-15P and 5-20P plug power cords, and over temperature protection to safeguard against heat damage.
The OL6KRT2UTFHWIORTAA complies with the U.S. Trade Agreement Act (TAA), and comes with a three-year warranty.
- Step-Down Transformer
The step-down transformer provides IT managers the ability to support both 120VAC and 208VAC output requirements with a single UPS solution. With six (6) NEMA 5-20R outlets available, users will have sufficient outlets to connect multiple 120V devices running at 15A and/or 20A. If additional outlets are needed, CyberPower manufactures a number of different Power Distribution Units (PDU) making it easy to address your specific outlet needs. - NEMA L6-30P Plug

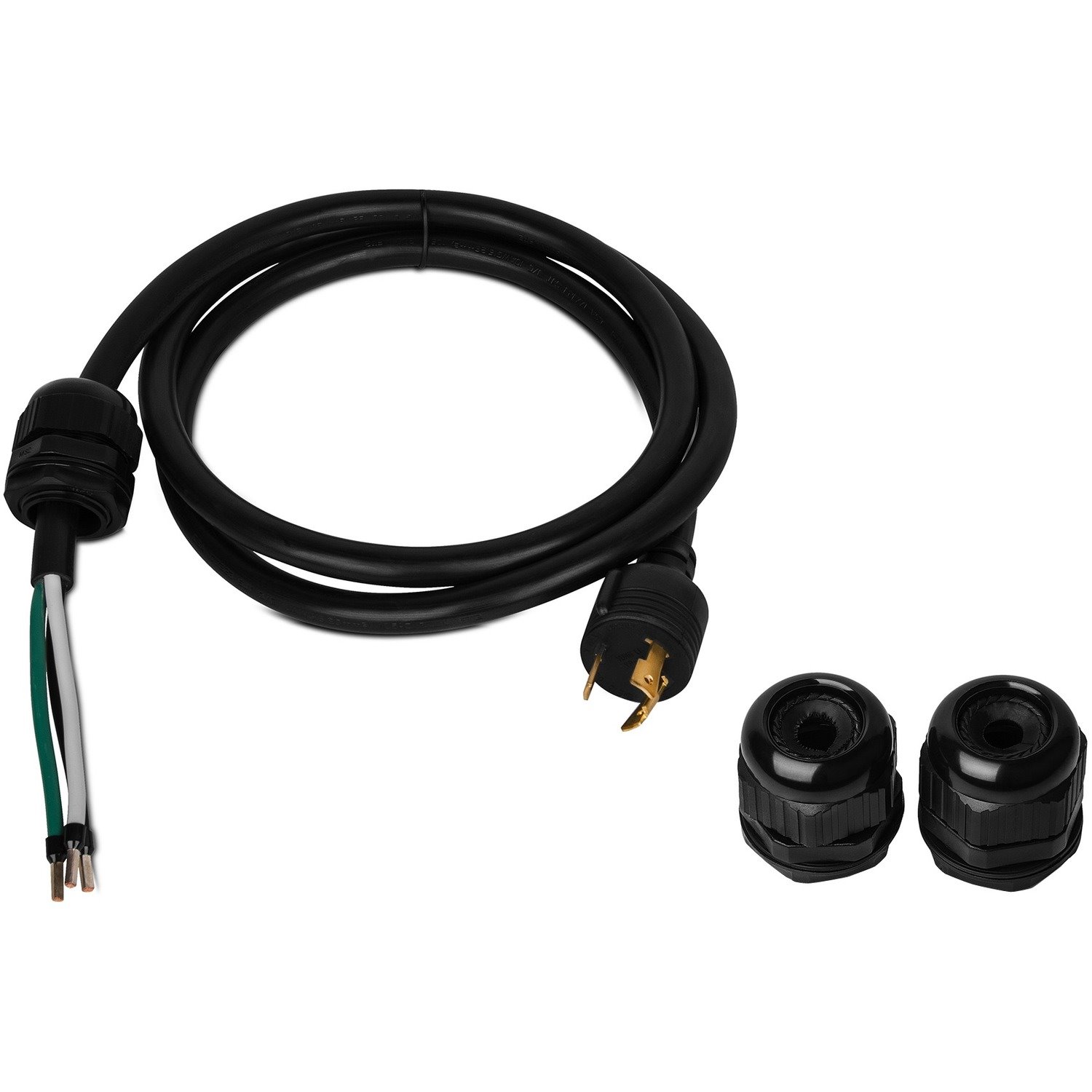

A 6-foot, 3-wire power cord with a NEMA L6-30P plug to ROJ (removed outer jacket) is included. - Frequency Supported
The OL6KRT2UTFHWIORTAA has the flexibility to support both 50Hz and 60Hz output. - Over Temperature Protection
Protects the OL6KRT2UTFHWIORTAA from damage if the internal heat exceeds safe operating parameters. - Resettable Input and Output Circuit Breakers
Convenient, resettable switches that provide protection from an input or output overload and faults. - Three-Year Warranty
CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details. - Technical Support
CyberPower will assist customers with any product, installation, or warranty concerns. - ISO and Safety Certifications
CyberPower manufacturing facilities are state-of-the-art and ISO-9001 Quality Tested. Our products are certified by the CE, UL, and cUL.
What's In The Box
OL6KRT2UTFHWIORTAA isolation step-down transformer, user manual, rack mount hardware, installation hardware, and L630PHW6FT power cord.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Power Rating
- 6000 VA
- Input Receptacle Type
- Hardwired
- NEMA L6-30P
- Output Receptacle Type
- Hardwired
- NEMA 5-20R
- Output Receptacle Detail
- 6 x NEMA 5-20R
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 100 V AC
- 110 V AC
- 115 V AC
- 120 V AC
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Physical Characteristics
- Form Factor
- Tower/Rack Mountable
- Rack Height
- 2U
- Height
- 3.5"
- Width
- 17"
- Depth
- 24"
- Weight (Approximate)
- 95.50 lb
- Miscellaneous
- Additional Information
- Over Temperature Protection: Yes
- Input Frequency Range: 50/60Hz
- Input Current Rating: 30A
- Cord Length: 6 ft
- Output Frequency: 50/60Hz
- Overload Protection: Output Circuit Breakers
- Enclosure Contruction: Steel
- Shipping Dimensions (WxHxD) (in.): 23.6 x 13 x 35.4
- Shipping Weight (lbs): 128.2
- Operating Temperature: 32 °F to 104°F / 0°C to 40 °C
- Operating Humidity: 0% - 90% non condensing
- Operating Elevation: 0-10000 feet (0-3000 meters)
- Storage Temperature: -4°F to 113 °F (-20°C to 45 °C)
- Storage Relative Humidity: 0% - 95% non condensing
- Storage Elevation: 0-50000 feet (0-15000 meters)
- Package Contents
- OL6KRT2UTFHWIORTAA Isolation/Step Down Transformer
- User manual
- Rack mount hardware
- Installation hardware
- L630phw6ft power cord
- Compatibility
- Enterprise Installations
- TAA Compliant
- Corporate Servers
- Network Devices
- VoIP Installations
- Certifications & Standards
- UL
- cUL
- CE
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
