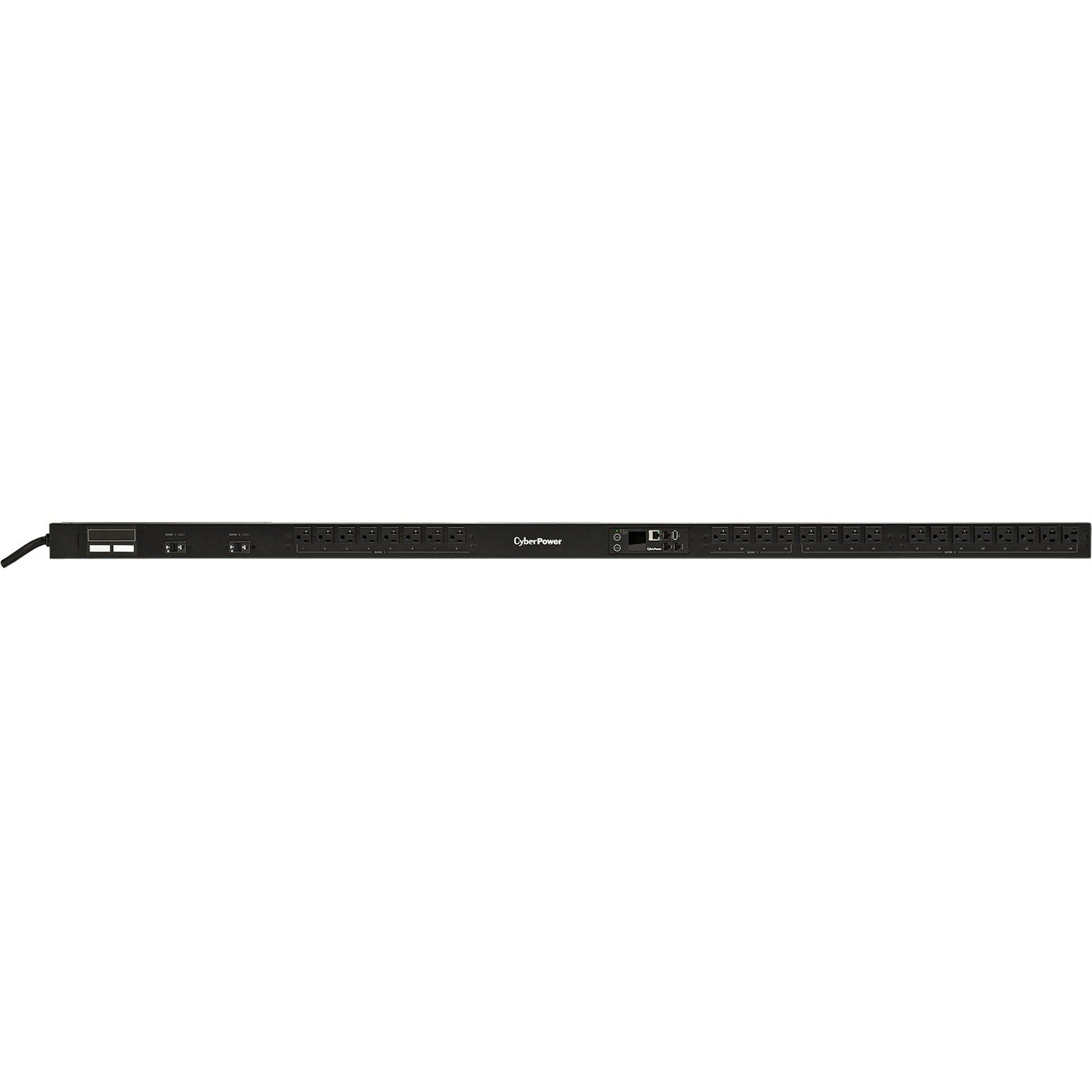

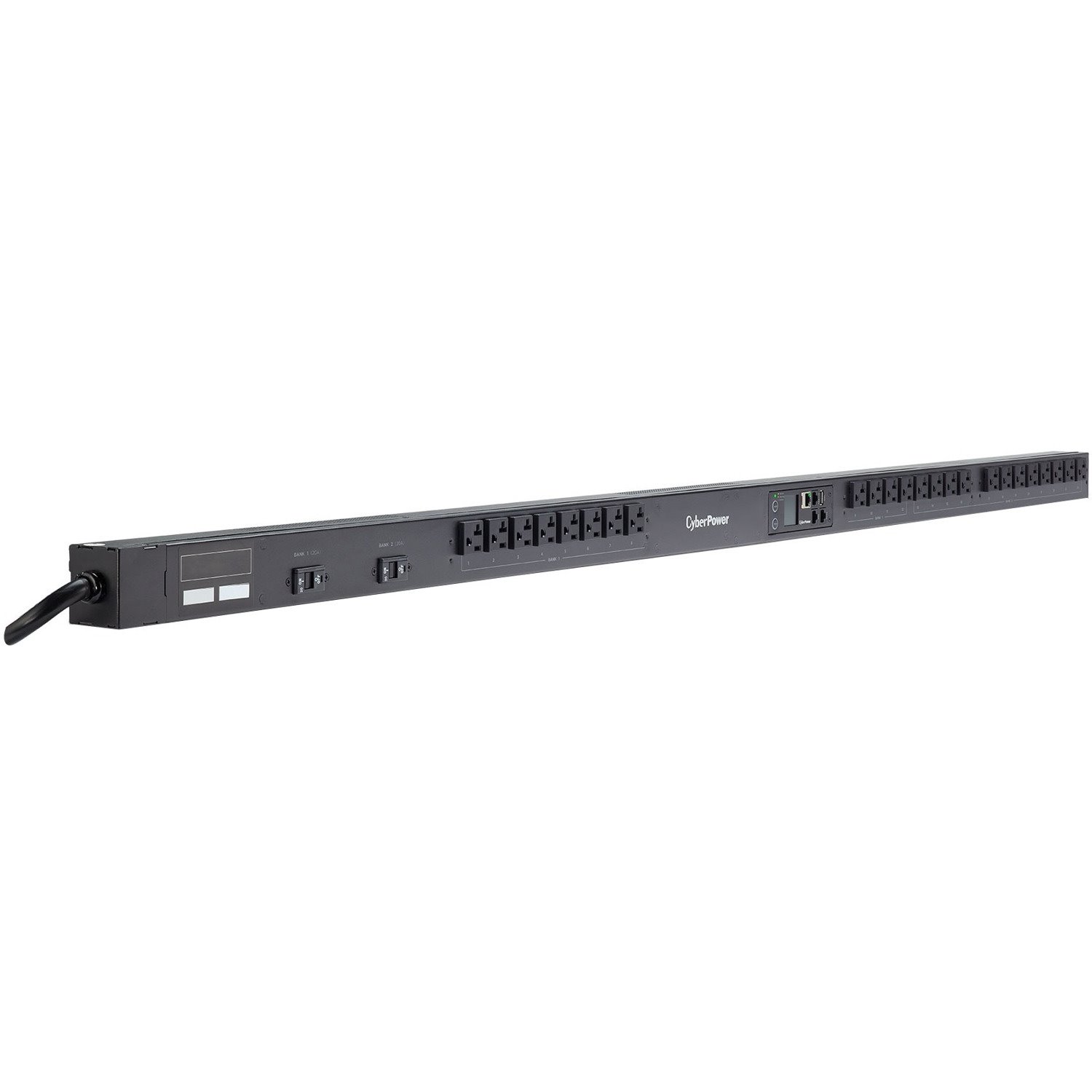

The CyberPower PDU31102, a 24-outlet (front), 0U rackmount monitored power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally using the LCD.
The PDU31102 comes with a three-year limited warranty and covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Monitored PDU
- Product Condition
- New
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Monitored
- Phase
- Single Phase
- Plug/Connector Type
- NEMA L5-30P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 24 x NEMA 5-20R
- Protection Type
- Overload Protection
- Power Description
- Input Voltage
- 120 V AC
- Input Voltage Range
- 100 V AC - 120 V AC
- Output Voltage Range
- 100 V AC - 120 V AC
- Input Current
- 30 A
- Circuit Breaker
- Yes
- Management
- Management
Protocols:
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- Remote Outlet Switching
- No
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Horizontal/Vertical
- Mount Type
- Rack-mountable
- Wall-mountable
- Rack Height
- 0U
- Cord Length
- 10 ft
- Height
- 65.5"
- Width
- 2.2"
- Depth
- 1.9"
- Weight (Approximate)
- 15 lb
- Miscellaneous
- Additional Information
- Derated Input Current: 24 A
- Input Frequency Range: 50 Hz - 60 Hz
- Outlets - # of Banks: 2
- Overload Protection: 20A x 2
- Environmental Sensor: Optional, via RJ45
- LCD: Multifunction LCD
- LED Indicators: Tx/Rx
- Modular Expandability (Cascading): Yes, via RJ45
- Monitoring Level: Input
- Software (Free Download): PowerPanel® Business
- Upgradeable firmware: Yes
- Adjustable Mounting Brackets: 1 set
- Cord Retention Tray/Cord Organizers: Yes
- External Site Ground Pin: Yes
- Form Factors Supported: Horizontal or Vertical Wallmount
- Material of Construction: Metal
- Operating Elevation: 0 - 11480 ft (0 - 3499 m)
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Operating Temperature: 32 - 140 °F (0 - 60 °C)
- Storage Elevation: 0 - 50000 ft (0 - 15239 m)
- Storage Temperature: 5 - 113 °F (-15 - 45 °C)
- Certifications & Standards
- UL 60950-1
- FCC Class A
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
