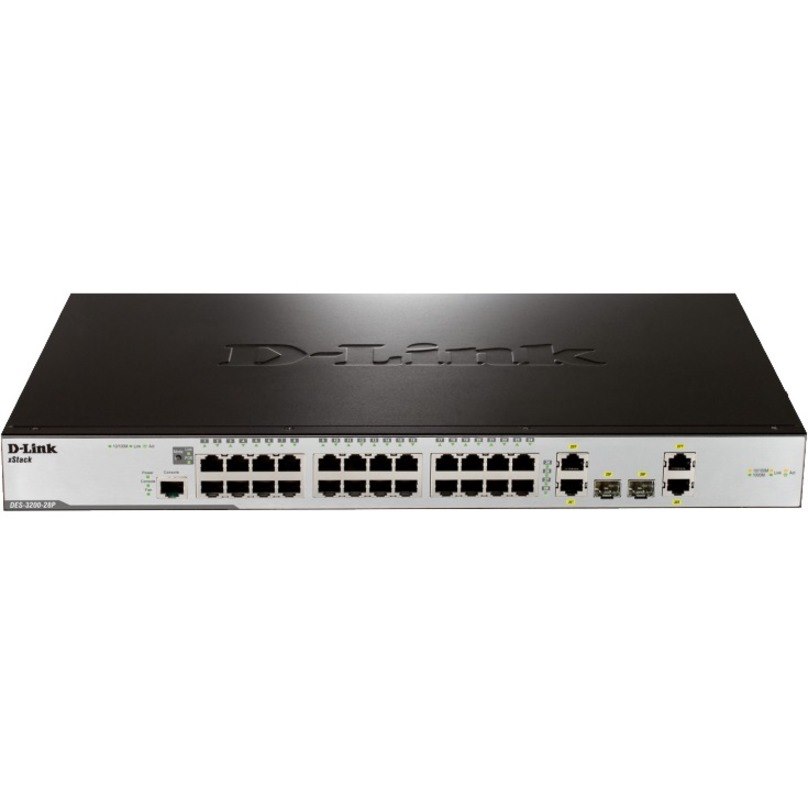

The DES3200-28P, DES3200-52 and DES3200-52P are all members of the D-Link Switch family. These Switches provide unsurpassed performance, fault tolerance, scalable flexibility, robust security, standard-based interoperability and impressive technology to future-proof departmental and enterprise network deployments with an easy migration path.
- General Information
- Manufacturer
- D-Link Systems, Inc
- Manufacturer Website Address
- http://www.dlink.com
- Brand Name
- D-Link
- Product Line
- xStack
- Product Series
- DES-3200
- Product Type
- Ethernet Switch
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Token Ring Port
- No
- LRE Port
- No
- Bypass
- No
- Modular
- No
- Management Port
- Yes
- Number of PoE (RJ-45) Ports
- 24
- Number of Network (RJ-45) Ports
- 2
- Port/Expansion Slot Details
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Twisted Pair Cable Standard
- Category 5
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- Network Technology
- 10/100Base-T
- 1000Base-T
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- SFP
- Shared SFP Slot
- Yes
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- Yes
- Management
- CLI
- DHCP
- GUI
- SNMP v1,v2c and v3
- MIB
- Telnet
- IGMP
- VLAN
- Reliability
- MTBF
- 216780 Hour
- Power Description
- PoE (RJ-45) Port
- Yes
- Power Source
- Power Supply
- Redundant Power Supply Supported
- No
- Physical Characteristics
- Form Factor
- Desktop
- Rack-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 12.1"
- Weight (Approximate)
- 9.44 lb
- Miscellaneous
- Certifications & Standards
- CE Class A
- FCC Class A
- C-Tick
- VCCI
- CB Report
- UL
- Class 1 Laser Product
- EN60825-1+A2:2001 or later, European Laser standard
- FCC 21 CFR Chapter 1, Subchapter J in accordance with FDA & CDRH Requirements
- EEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3af
- IEEE 802.3at
