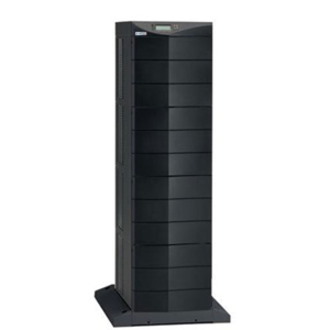

With a scaleable, modular and redundant design, the Powerware 9170+ Rackmount UPS provides advanced backup power and power quality management and offers the highest level of power protection and power quality of any Rackmount UPS power supply in the 3-18 kVA range.
- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Eaton
- Product Type
- Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Plug/Connector Type
- Hardwired
- Receptacle Type
- NEMA L14-30R
- NEMA L6-30R
- NEMA 5-20R
- Receptacle Detail
- 3 x NEMA L14-30R
- 3 x NEMA L6-30R
- 12 x NEMA 5-20R
- Power Description
- Load Capacity (VA)
- 12 kVA
- Input Voltage
- 110 V AC
- 220 V AC
- Output Voltage
- 120 V AC
- 208 V AC
- 240 V AC
- Input Frequency
- 60 Hz
- Output Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Management
- Alarm
- Low Battery
- High Battery
- Low AC Output
- High AC Output
- High AC Input
- Output Overload
- Overload Shutdown
- High Heatsink Temperature
- Emergency Power Off
- Module Failure
- Excessive Transfer
- Precharge Failure
- Incompatible Module
- Fan Failure
- Low Runtime
- Check Memory
- Check Battery Open Cell
- Check Battery Weak Battery
- Low Redundancy Insufficient Battery
- Low Redundancy Insufficient Module
- Check Battery
- Phase Error
- Bypass Switch
- Automatic
- Emergency Power OFF
- Yes
- Controls/Indicators
- Status Indicators
- Battery Test Failed
- Interfaces/Ports
- Modular Slots
- 2 x Communications Slot
- Battery Information
- Battery Characteristics
- Maintenance-free
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 8 Minute
- Backup/Run Time (Half Load)
- 24 Minute
- Typical Battery Recharge Time
- 4 Hour
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Sound Emission (A-Weighted)
- 50 dB(A)
- Miscellaneous
- Additional Information
- Eliminates single point-of-failure with N+X power and logic redundancy
- Grows with changing IT environments by incorporating scalable design of 3 kVA power modules and batteries
- Certifications & Standards
- UL
- CUL
- FCC class A
- IEEE/ANSI C62.41
- Country of Origin
- United States
