- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- Smart
- Product Type
- Network Camera

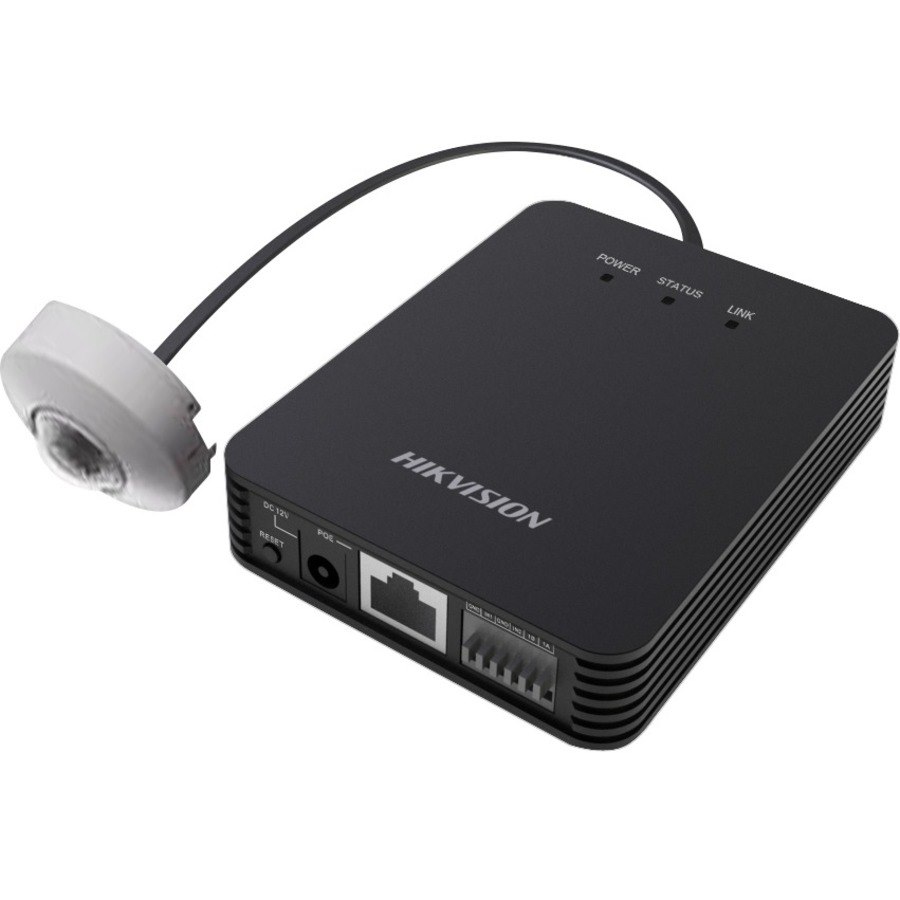

DS-2CD6424FWD-xx is a covert camera for ATM surveillance. Options include single or dual lens camera body; cylindrical, L-shaped, and tube shaped lens; 26 ft (8 m) cable between lens and camera body for flexible installation.
- Minimum Illumination: 0.01 lux @ ?/1.2, AGC on, 0 lux with IR; 0.028 lux @ ?/2.0, AGC on, 0 lux with IR
- 1920 × 1080 @ 30 fps Real-Time Output
- 2.8 mm @ ?/2.0, angle of view: 115°
- H.264/MJPEG
- Frame Rate: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 12 VDC ±10%/PoE (802.3af)
- Warranty
- Limited Warranty
- 36 Month
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- MJPEG
- H.264
- Maximum Video Resolution
- 1920 x 1080
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 4 mm
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Weight (Approximate)
- 7.40 oz
- Miscellaneous
- Package Contents
- Network Camera
- Ball Head Lens
