- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- DeepinView
- Product Type
- Network Camera

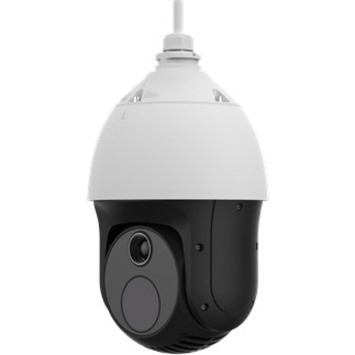

Hikvision DS-2TD4237-25/V2 Thermal & Optical Bi-spectrum Network Speed Dome equipped with built-in GPU which support intelligent behavior analysis algorithm, can realize high precision VCA detection and real-time alarm. It is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as: airport, railway, prison, power station, 4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you from property loss.
Smart Function (Thermal Imaging)
?Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mK(25°C), F#=1.0
?Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
?Smart tracking linkage: thermal view and optical view
?Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
?Reliable temperature exception alarm function
?Advanced fire detection algorithm
Thermal Imaging Module Function
?384 × 288 (the resolution of output image is 1280 × 720) resolution sensor, high sensitivity sensor, support contrast adjustment
?Shutter adjustment in various modes
?3D DNR, 15 palettes of color adjustable, image detail enhancement
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 328.08 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.264
- H.265
- Maximum Video Resolution
- 1920 x 1080
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 4.80 mm
- Maximum Focal Length
- 153 mm
- Optical Zoom
- 31.9x
- Maximum Thermal Focal Length
- 0.98"
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Form Factor
- Dome
- Height
- 12"
- Width
- 7.3"
- Weight (Approximate)
- 8.60 lb
