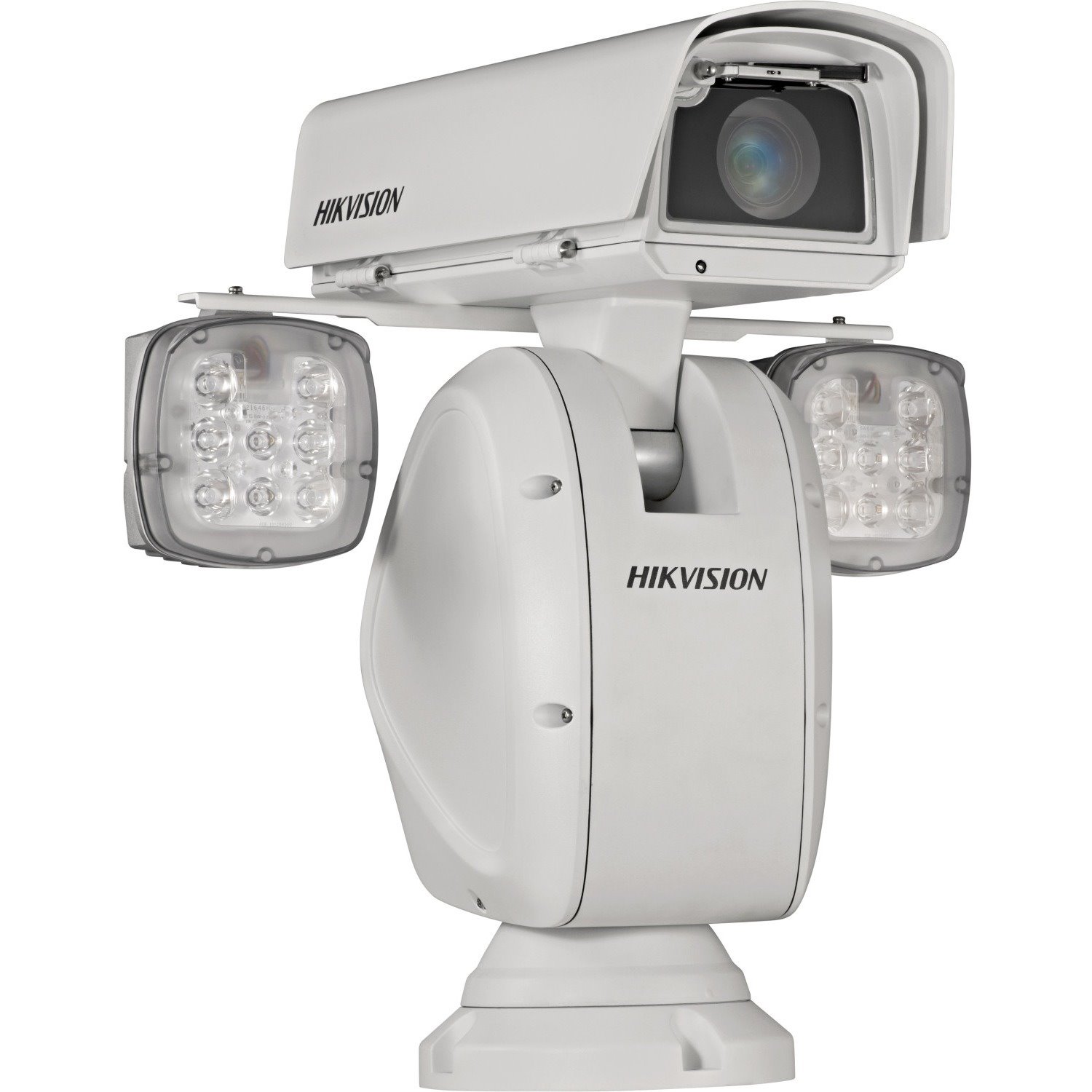

Hikvision DS-2DY9236IX-A 2 MP 36× IR Network Positioning System adopts 1/1.8" progressive scan CMOS chip. With the 36 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.
- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- Special
- Product Type
- Network Camera
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 1312.34 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Field of View
- Horizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele)
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.265+
- H.265
- H.264
- H.264+
- MJPEG
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 60 fps
- Video Signal Format
- NTSC
- PAL
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 6 mm
- Maximum Focal Length
- 216 mm
- Lens Included
- Yes
- Maximum Aperture
- f/1.3
- Optical Zoom
- 36x
- Exposure
- Shortest Shutter Speed
- 1/30000 Second
- Longest Shutter Speed
- 1/1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 24 V AC
- Physical Characteristics
- Mount Type
- Wall Mount
- Form Factor
- Dome
- Durability
- Vandal Proof
- Weight (Approximate)
- 33.07 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Features
- 3D Digital Noise Reduction
- Highlight Compensation (HLC)
- Back Light Compensation (BLC)
- Face Detection
- Day/Night
- Privacy Masking
- Password Protection
- PTZ
- Region of Interest
- Audio Compression
- Motion Detection
- Tampering Alarm
- Cross Line Detection
- Audio Detection
- Auto Tracking
- HTTPS Encryption
- SD Card Local Storage
- Surge Protection
- Indoor/Outdoor
- Outdoor
- Ingress Protection Rating
- IP66
