- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Type
- Ethernet Switch

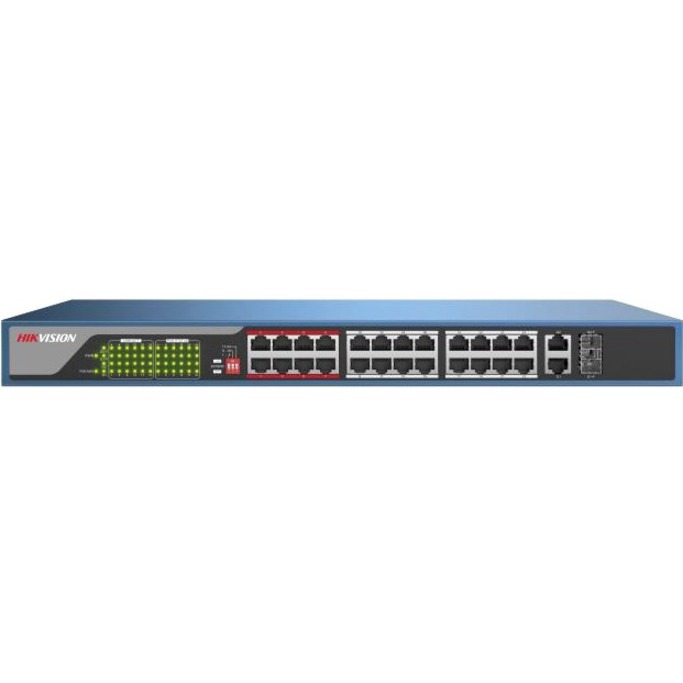

DS-3E0326P-E is an 24 10/100Mbps ports unmanaged switch that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc.
- Interfaces/Ports
- Total Number of Network Ports
- 26
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- No
- Port/Expansion Slot Details
- 24 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- Network Technology
- 10/100Base-TX
- 10/100/1000Base-TX
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 2.0
- Expansion Slot Type
- SFP
- Shared SFP Slot
- Yes
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- No
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- No
- Physical Characteristics
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 11.2"
- Weight (Approximate)
- 9.46 lb
