- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Series
- DS-7200HGHI-SH
- Product Type
- Video Surveillance Station

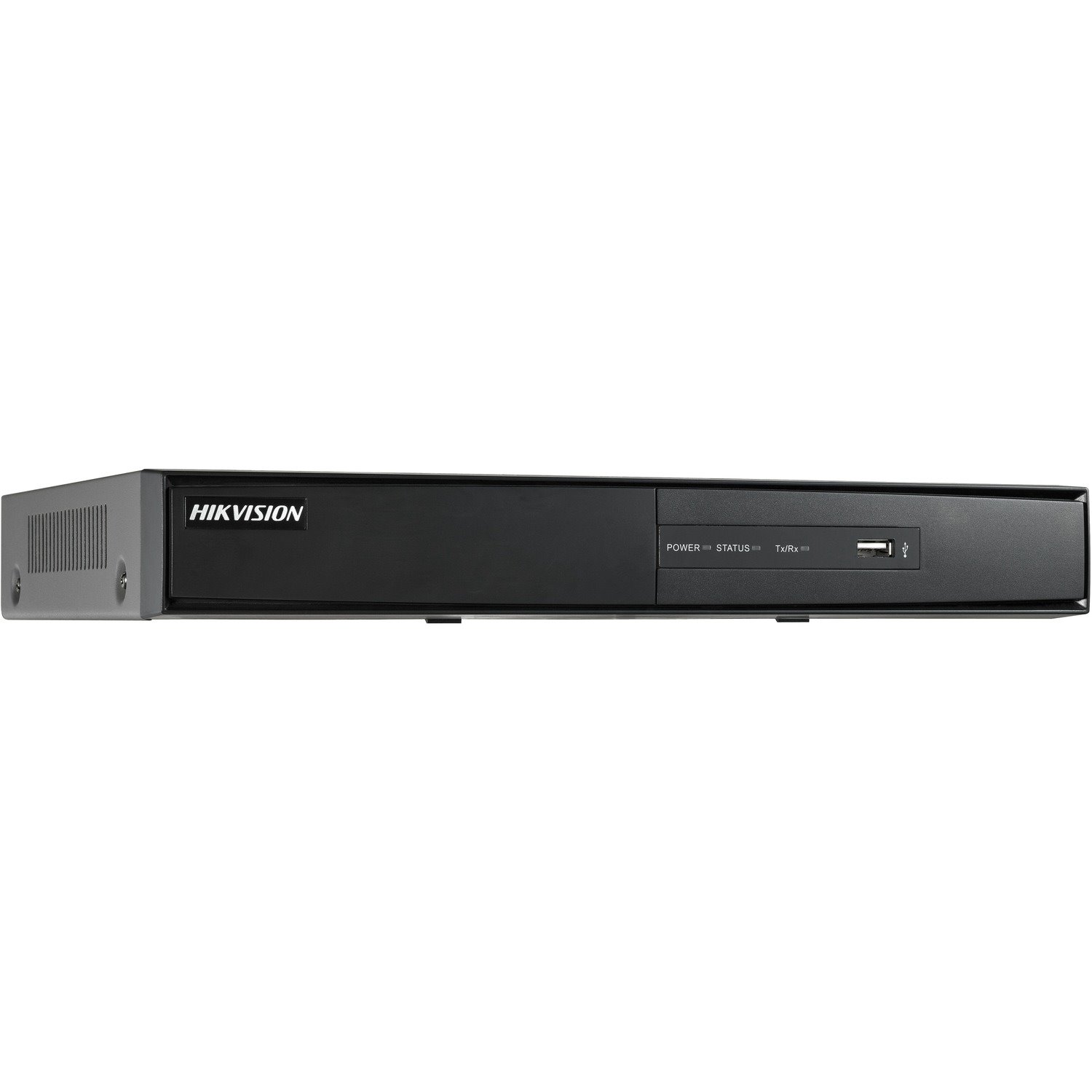

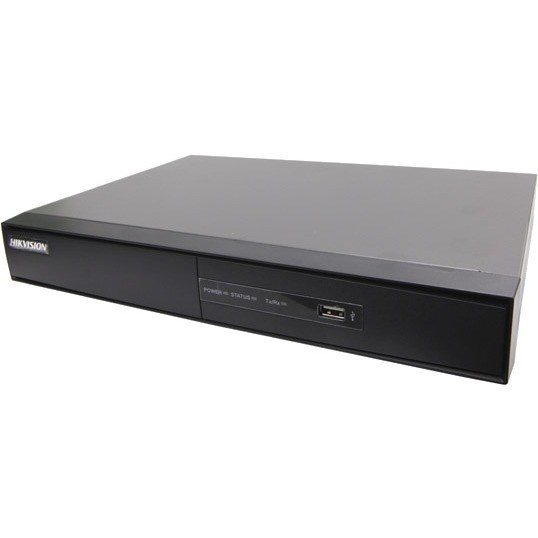

DS-7200HGHI-SH series DVR (Digital Video Recorder) is a new generation recorder devel oped by Hikvision independently which can connect HD analog / network cameras and Coaxitron cameras and provide powerful surveillance . Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and int elligent technology. It can both work alone as a recorder and cooperate with other device s to build a comprehensive surveillance system.
The DS-7200HGHI-SH series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc..
- Technical Information
- Total Number of Channels
- 4
- Connectivity Technology
- Wired
- HD Recording
- Yes
- System Components
- Tribrid Video Recorder
- Video
- Video Formats
- H.264
- Maximum Resolution
- 1920 x 1080
- Maximum Frame Rate
- 16 fps
- Network & Communication
- Ethernet
- Yes
- Remote Management
- Yes
- Interfaces/Ports
- USB
- Yes
- Composite Video In
- Yes
- Total Number of Audio In Ports
- 1
- Total Number of Audio Out Ports
- 1
- Number of VGA Out
- 1
- HDMI
- Yes
- Physical Characteristics
- Height
- 4"
- Width
- 19"
- Depth
- 4"
- Weight (Approximate)
- 5 lb
