- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- TurboHD
- Product Type
- Video Surveillance Station

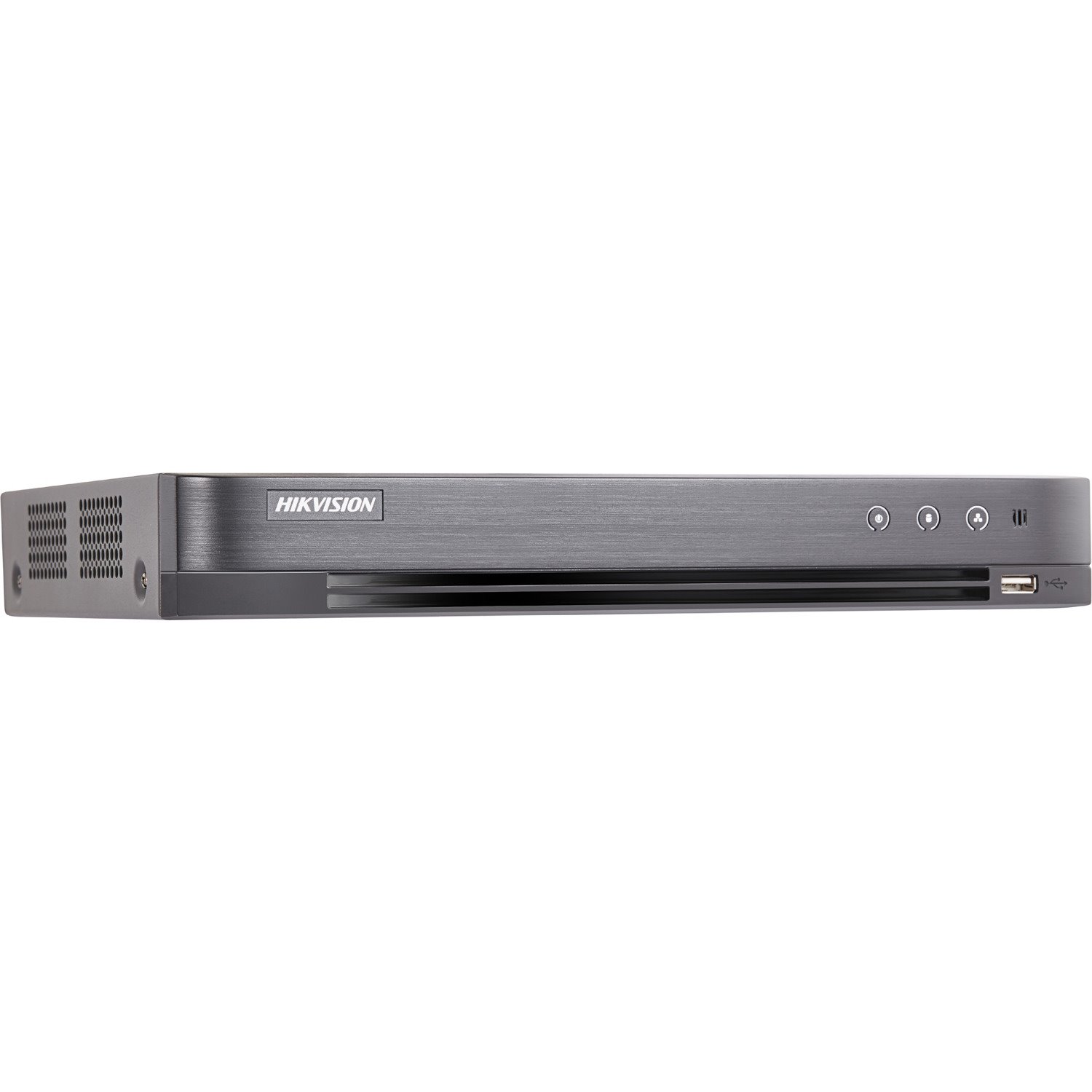

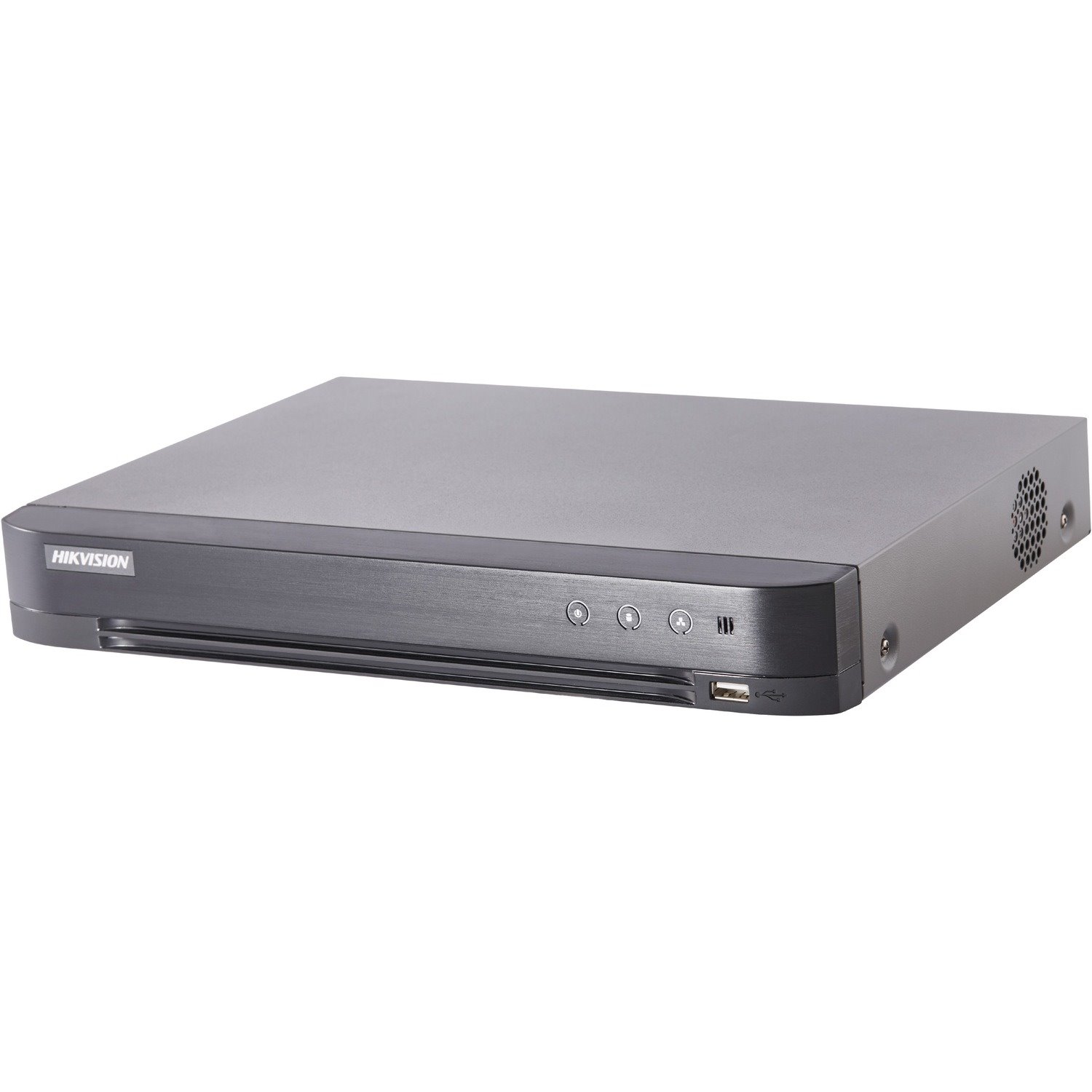

TurboHD DS-72xxHTI-Kx DVRs support up to 4K output resolution and offer camera support on up to 4/8 channels. They offer long transmission distances and feature the latest H.265+ compression technology, which improves recording efficiency and reduces data storage costs.
-
8-ch synchronous playback
-
H.265+/H.265/H.264+/H.264 Main Stream Encoding
-
VGA Output at Up to 1920 × 1080 Resolution HDMI Output at Up to 4K (3,840 x 2,160) Resolution
-
Main stream: 8 MP @ 12 fps, 5 MP @ 20 fps, 3 MP @ 18 fps
-
VGA Output: 1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz HDMI Output: 1-ch, 4K (3840 × 2160) / 30 Hz, 2K (2560 × 1440) / 60 Hz, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Total Number of Channels
- 8
- Connectivity Technology
- Wired
- HD Recording
- Yes
- System Components
- Digital Video Recorder
- Storage
- Hard Drive Capacity
- 2 TB
- Video
- Video Formats
- H.264
- H.264+
- H.265
- H.265+
- Video Signal Format
- NTSC
- PAL
- Maximum Resolution
- 8MP
- Maximum Frame Rate
- 30 fps
- Network & Communication
- Ethernet
- Yes
- Remote Management
- Yes
- Interfaces/Ports
- USB
- Yes
- Composite Video In
- Yes
- Composite Video Out
- Yes
- Total Number of Audio In Ports
- 4
- Total Number of Audio Out Ports
- 1
- Number of VGA Out
- 1
- HDMI
- Yes
- Physical Characteristics
- Height
- 1.9"
- Width
- 15"
- Depth
- 12.6"
- Weight (Approximate)
- 4.40 lb
