- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Series
- 8325
- Product Type
- Ethernet Switch

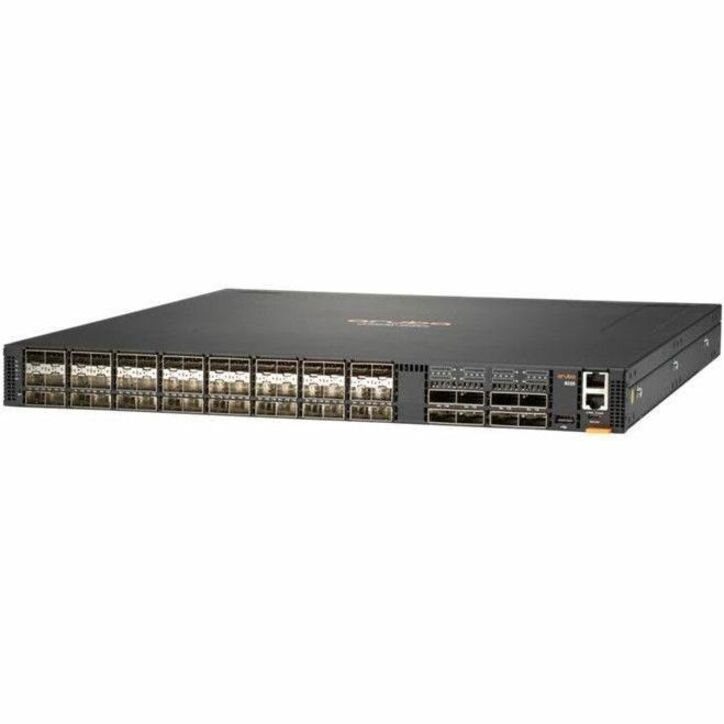

Aruba 8325 Switch Series
The Aruba CX 8325 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud and IoT era. These switches serve the needs of the next generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR). They provide over 6.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The CX 8325 series includes industry-leading line rate ports 1/10/25GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) with connectivity in a compact 1U form factor. These switches offer a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE to 100GbE ports.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Modular
- Yes
- Port/Expansion Slot Details
- 48 x 25 Gigabit Ethernet Expansion Slot
- 8 x 100 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 25 Gigabit Ethernet
- 100 Gigabit Ethernet
- Network Technology
- 25GBase-X
- 100GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 56.0
- Expansion Slot Type
- QSFP28
- SFP28
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3
- IEEE 802.3ba
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3ad
- IEEE 802.1ab
- IEEE 802.1ak
- IEEE 802.1t
- IEEE 802.1AX
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.3by
- IEEE 802.3z
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Power Consumption
- 550 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Cabinet Mount
- Surface Mount
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 21.1"
- Weight (Approximate)
- 22.05 lb
- Miscellaneous
- Package Contents
- 8325-48Y8C Ethernet Switch
- 2 x FB Power Supplies (JL632A) With No Additional Open PS Slots
- 6 x FB Fan Tray Bundles (JL628A) With No Additional Open FT Slots
- Application/Usage
- Network
- Industrial
- Business
- Enterprise
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
