- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- Chief
- Product Line
- ConnexSys
- Product Series
- LVS
- Product Type
- Wall Mount

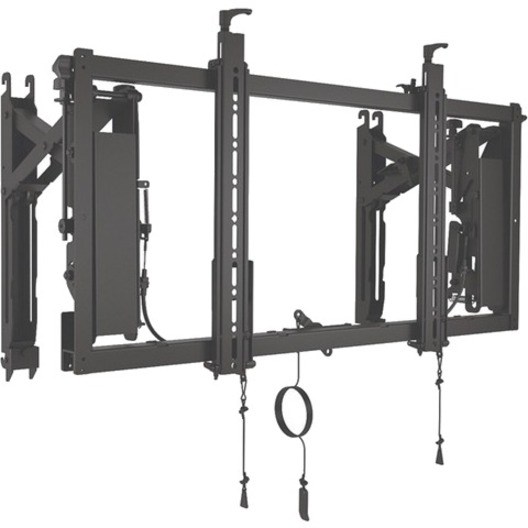

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
The LVSXU ConnexSys Video Wall system landscape mount ships without rails. Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.
- Warranty
- Limited Warranty
- 10 Year
- Product Information
- Device Supported
- Flat Panel Display
- Number of Displays Supported
- 1
- Maximum Load Capacity
- 150 lb
- Minimum Screen Size Supported
- 42"
- Maximum Screen Size Supported
- 80"
- Maximum Adjustable Depth
- 13.40"
- Features
- Tilt
- Pivot
- Adjustable Depth
- Lateral Adjustment
- Height Adjustable
- Yes
- Physical Characteristics
- Product Color
- Black
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 200 x 100
- 700 x 400
- Height
- 21.80"
- Width
- 35.50"
- Depth
- 4"
- Miscellaneous
- Additional Information
- Hang units on a single strut channel for quick row leveling
- PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount
- Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
Walls can be out of alignment by up to 2" (horizontally) - Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
- Compatibility
- 1-5/8" Sizes of Channel Strut
- Country of Origin
- China
