- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Line
- System x
- Product Series
- x3950 X6
- Product Type
- Server

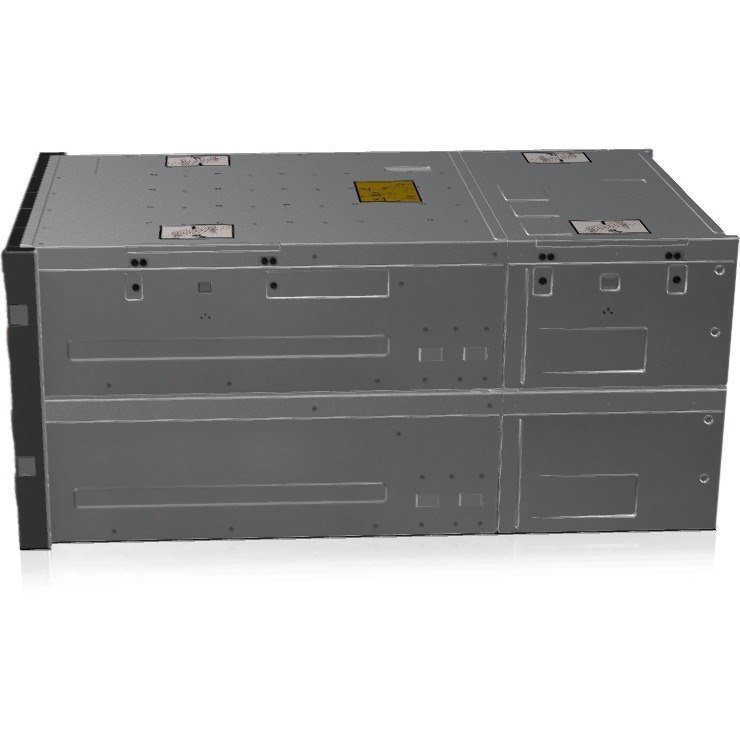

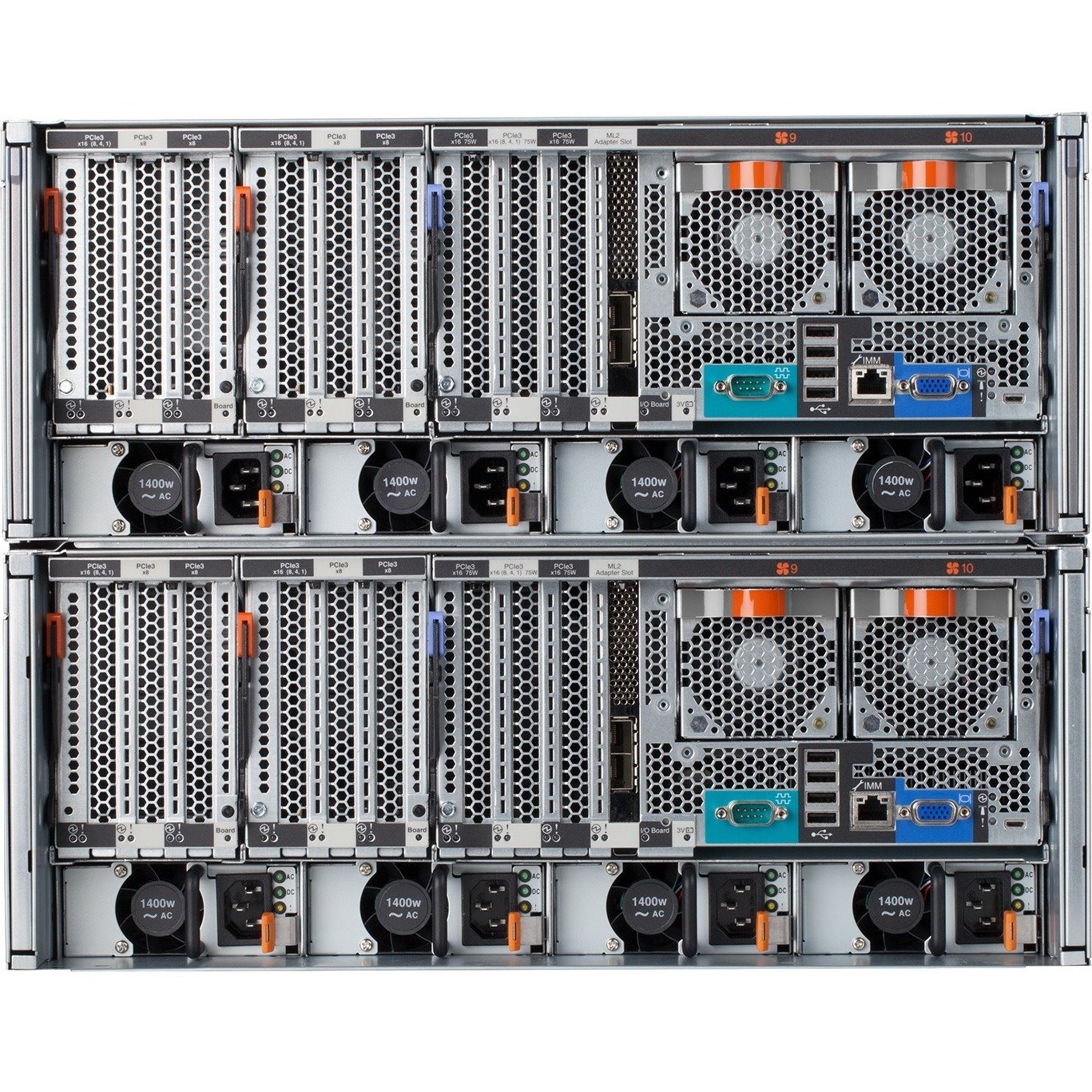

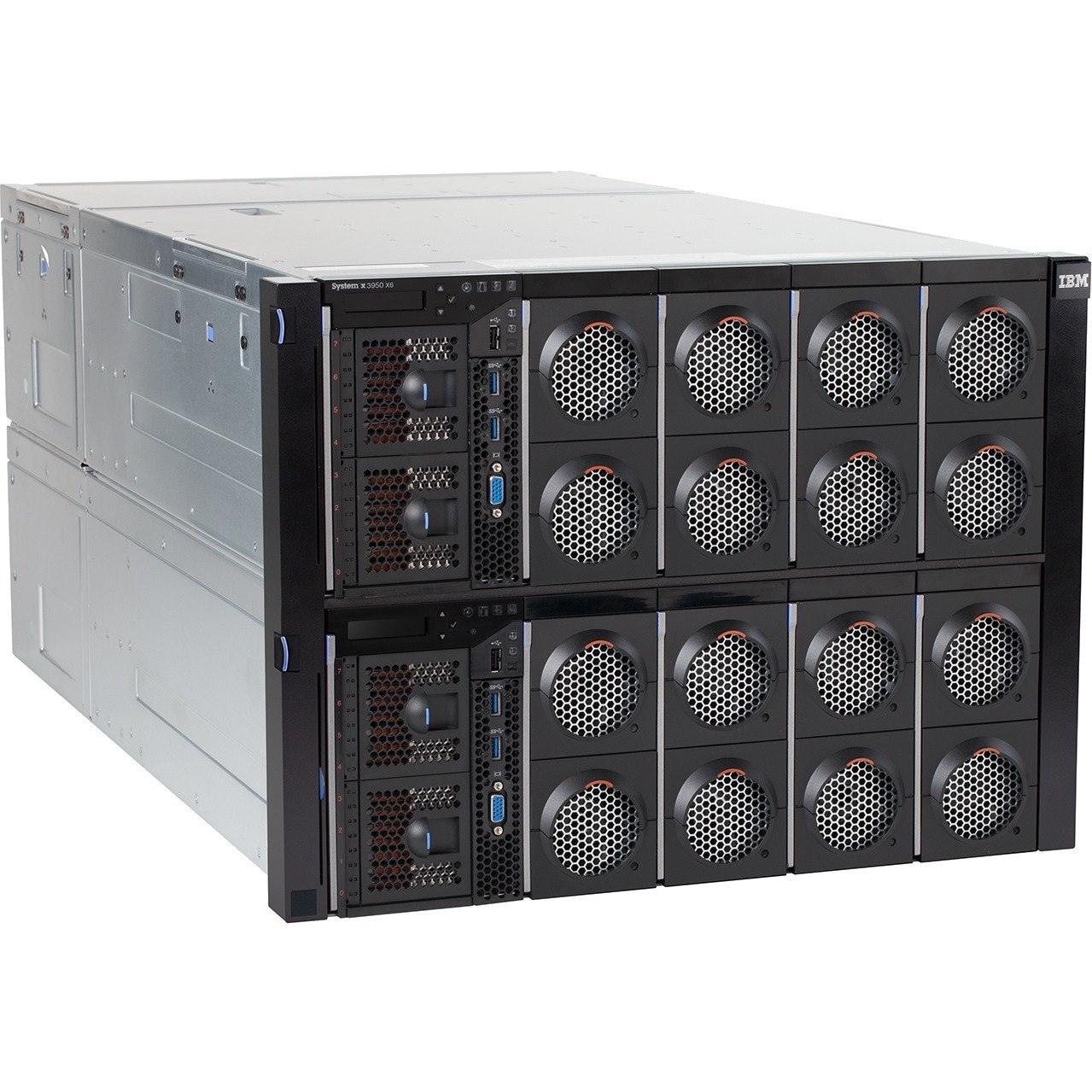

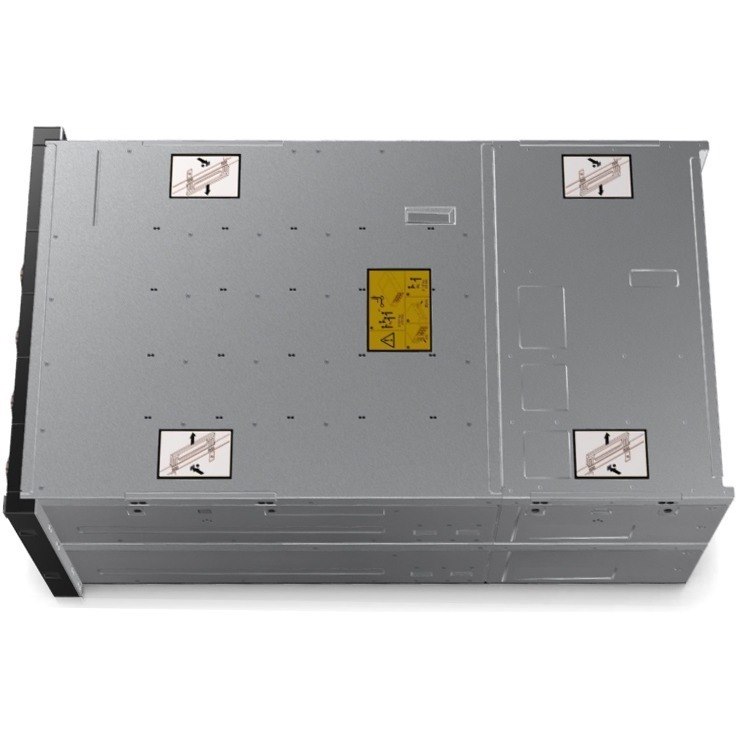

The Lenovo System x3950 X6 server, machine type 6241, is an eight-socket 8U rack-mounted server that represents the sixth generation of the Enterprise X-Architecture. Now with Intel Xeon E7 v4 processors, the x3950 X6 delivers fast application performance, is based on an agile system design, and is a resilient platform that is needed for mission-critical databases, enterprise applications, and virtualized environments.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 8
- Number of Processors Installed
- 8
- Processor Type
- Xeon
- Processor Model
- E7-8880 v4
- Processor Core
- Docosa-core (22 Core)
- Processor Speed
- 2.20 GHz
- Memory
- Standard Memory
- 2 TB
- Memory Technology
- TruDDR4
- Storage
- Total Hard Drive Capacity
- 14.40 TB
- Hard Drive Interface
- 6Gb/s SAS
- Hard Drive Configuration
- 12 x 1.2TB
- Total Solid State Drive Capacity
- 1.60 TB
- Solid State Drive Interface
- Serial ATA
- Solid State Drive Configuration
- 4 x 400GB
- Optical Drive Type
- No
- Controllers
- Controller Type
- 12Gb/s SAS
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 10, JBOD
- Display & Graphics
- Graphics Controller Model
- G200eR2
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Gigabit Ethernet
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 8
- Plug/Connector Type
- C13
- Maximum Power Supply Wattage
- 1400 W
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 8U
- Height
- 13.7"
- Width
- 19"
- Depth
- 31.6"
- Weight (Approximate)
- 242.51 lb
- Miscellaneous
- Package Contents
- System x3950 X6 62418JU Server
- Rail kit
- Cable management brackets
- 8 x 2.8 m (9.18 ft) C13-C14 power cord
- Documentation CD and safety/warranty/installation information
- Certifications & Standards
- GS
- Environmentally Friendly
- Yes
