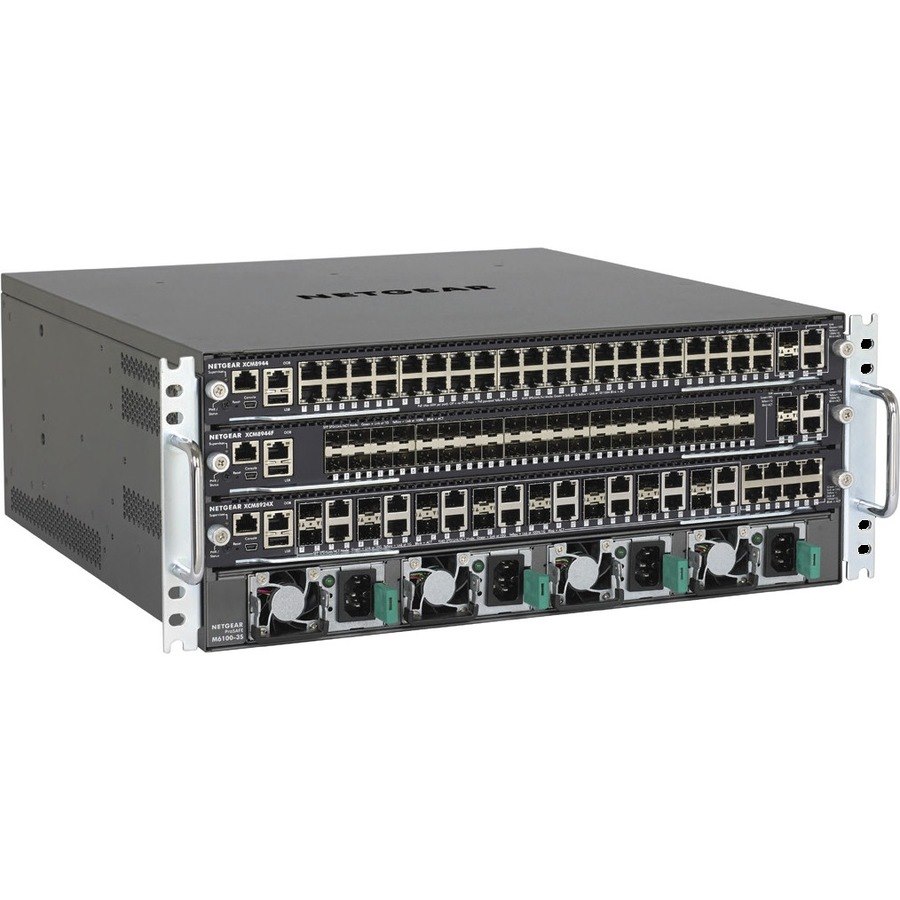

The NETGEAR® LAN Access and Aggregation Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G/10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class. NETGEAR Lan Access and Aggregation Chassis Switch solutions combine the latest advances in hardware and software engineering for higher flexibility, lower complexity and stronger investment protection, at a high-value price point.
- General Information
- Manufacturer
- Netgear, Inc
- Manufacturer Website Address
- http://www.netgear.com
- Brand Name
- Netgear
- Product Line
- ProSafe
- Product Series
- M6100
- Product Type
- Switch Chassis
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Token Ring Port
- No
- LRE Port
- No
- Uplink Port
- No
- Bypass
- No
- Modular
- No
- Management Port
- No
- USB
- No
- Stack Port
- No
- Port/Expansion Slot Details
- 3 x Expansion Slot
- I/O Expansions
- Total Number of Expansion Slots
- 3.0
- Expansion Slot Type
- Line Card
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- Out-of-band Management
- Web-based Management
- CLI
- Telnet
- SSH
- SNMP V1, V2, V3
- MIBs
- RSPAN
- RMON 1,2,3,9
- Syslog
- Reliability
- MTBF
- 3393051 Hour
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 4U
- Form Factor
- Rack-mountable
- Rail-mountable
- Height
- 6.9"
- Width
- 17"
- Depth
- 17.4"
- Weight (Approximate)
- 27.34 lb
- Miscellaneous
- Package Contents
- M6100-3S Chassis Switch (XCM8903)
- 2-Post Rack Mount Kit
- 1 Pair of 4-Post Sliding Rails
- 2 x Blank Panels for Empty I/O Slots
- 3 x Power Supply Panels for Empty PSU Slots
- Installation Guide
- Resource CD (Technical Documentation, Manuals)
- C14 to C15 Power Cord (for PDUs and UPS)
- Australian Power Cord (AC Plug --> C15)
- Japanese Power Cord (AC Plug --> C15)
- Certifications & Standards
- CE mark, commercial
- FCC Part 15 Class A
- VCCI Class A
- Class A EN 55022
- (CISPR 22) Class A
- Class A C-Tick
- EN 50082-1
- EN 55024
- CE mark, commercial
- CSA certifid (CSA 22.2 #950)
- UL listed (UL 1950)/cUL IEC 950/EN 60950
- Country of Origin
- Taiwan
