- General Information
- Manufacturer
- NVIDIA Corporation
- Manufacturer Website Address
- http://www.nvidia.com
- Brand Name
- Mellanox
- Product Line
- LinkX
- Product Type
- Network Cable

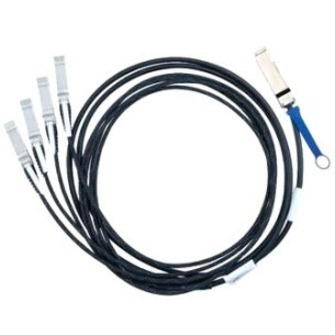

NVIDIA MC2609130-003 Direct Attach Copper Splitter Cable Ethernet 40GbE to 4x10GbE QSFP to 4xSFP+ 3m
40GbE to 4x10GbE QSFP+ to 4xSFP+ Direct Attach Copper Splitter Cable
NVIDIA's QSFP+ to 4x SFP+ passive splitter breakout cables are 40GbE to 10GbE cable assemblies. The cables are compliant with SFF-8418/8419 and SFF-8685/8436 specifications and provide connectivity between devices using QSFP+ port on one end and four SFP+ ports on the other end.
NVIDIA's unique, quality, passive, copper, cable solutions provide power-efficient replacement for active power connectivity such as fiber optic cables. Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- 40GbE to 4x10GbE data rate
- SFF-8685/8436 compliant
- Operating case temperature of 0-70C
- 3.3V power supply
- BER better than 1E-15
- Hot pluggable
- RoHS compliant
- SFF-8431/8432 compliant H
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Cable Type
- QSFP+/SFP+
- Cable Characteristic
- Splitter Cable
- Cable Length
- 9.84 ft
- Connector Type on First End
- QSFP+ Network
- Connector on First End Details
- 1 x QSFP+ Network
- Connector Type on Second End
- SFP+ Network
- Connector on Second End Details
- 4 x SFP+ Network
- Device Supported
- Network Device
- Switch
- Data Transfer Rate
- 40 Gbit/s
- Features
- Passive
- Physical Characteristics
- Product Color
- Black
- Product Material
- Copper
- Material Details
Copper - Cable
- Miscellaneous
- Environmentally Friendly
- Yes
- TAA Compliant
- Yes
