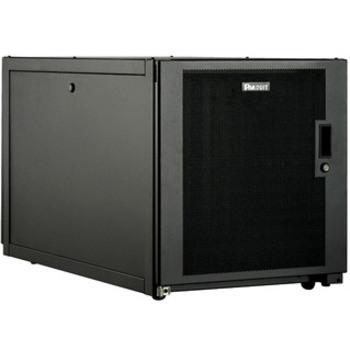

The Net-Access™ Enterprise Cabinet shall consist of a metal frame available in 600mm (23.5") width, 1070mm (42.0") depth and 654mm (25.75") height. The top of cabinet shall include two
1.5" x 5.0" breakouts for cable entry openings to prevent air leakage. Cabinets shall include front and rear single hinge doors with 69% open perforation with keyed swing handles and solid single piece steel side panels with ΒΌ turn locks. The design shall accept 19" patch panels, servers, and network equipment. Cabinet shall come assembled or in a flat packaged carton ready for customer assembly. Cabinets shall have a 567kg (1250 lbs.) load rating and 227kg (500 lbs.) rolling load rating.
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Line
- Net-Access
- Product Type
- Rack Cabinet
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Application/Usage
- Patch Panel
- Server
- LAN Switch
- Features
- Perforated Door
- Lockable
- Casters
- Cable Management
- Adjustable Rear Rail
- Fixed Front Rail
- Physical Characteristics
- Form Factor
- Floor Standing
- Color Family
- Black
- Product Color
- Black Powder Coat
- Product Material
- Steel
- Metal
- Units Per Pallet
- 1
- Maximum Weight Capacity
- 1250 lb
- Dynamic/Rolling Weight Capacity
- 500 lb
- Height
- 25.7"
- Width
- 23.5"
- Depth
- 42"
- Weight (Approximate)
- 77 lb
- Rack Height
- 12U
- Rack Width
- 19"
- Miscellaneous
- Certifications & Standards
- EIA-310-D
- TIA/EIA-942
- Assembly Required
- No
- Country of Origin
- Mexico
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
