- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Packaged Quantity
- 1
- Product Type
- PDU

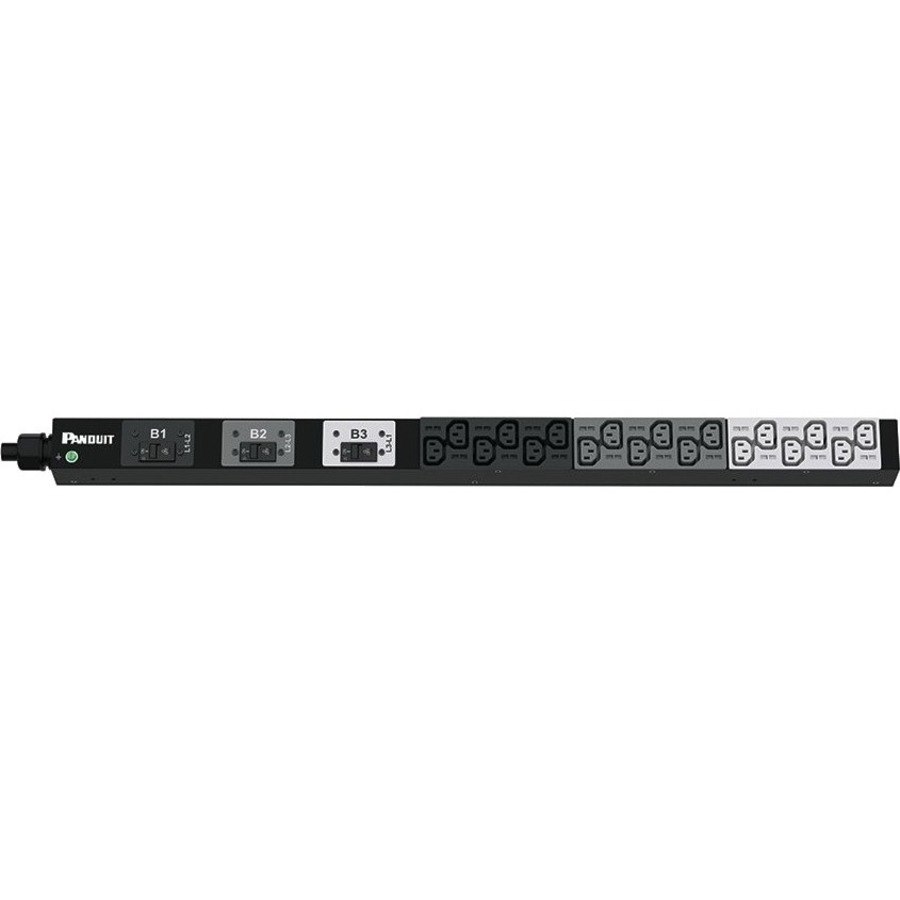

The 60A, 208V vertical 3 Phase Delta PDU has (18) C13 and (6) C19 receptacles, a 10' (3m) power cord with a IEC 60309 3P+E 9h 60A plug, and measures 36.0"L x 2.0"W x 4.4"D (914.4mm x 50.8mm x 111.8mm). UL Listed. Color: Black
- Technical Information
- PDU Type
- Basic
- Phase
- Three Phase
- Plug/Connector Type
- NEMA L21-30P
- Receptacle Type
- IEC 60320 C13
- Receptacle Detail
- 18 x IEC 60320 C13
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 230 V AC
- Power Rating (VA)
- 8600 VA
- Input Current
- 30 A
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Width
- 2"
- Depth
- 2.1"
- Length
- 32.2"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
