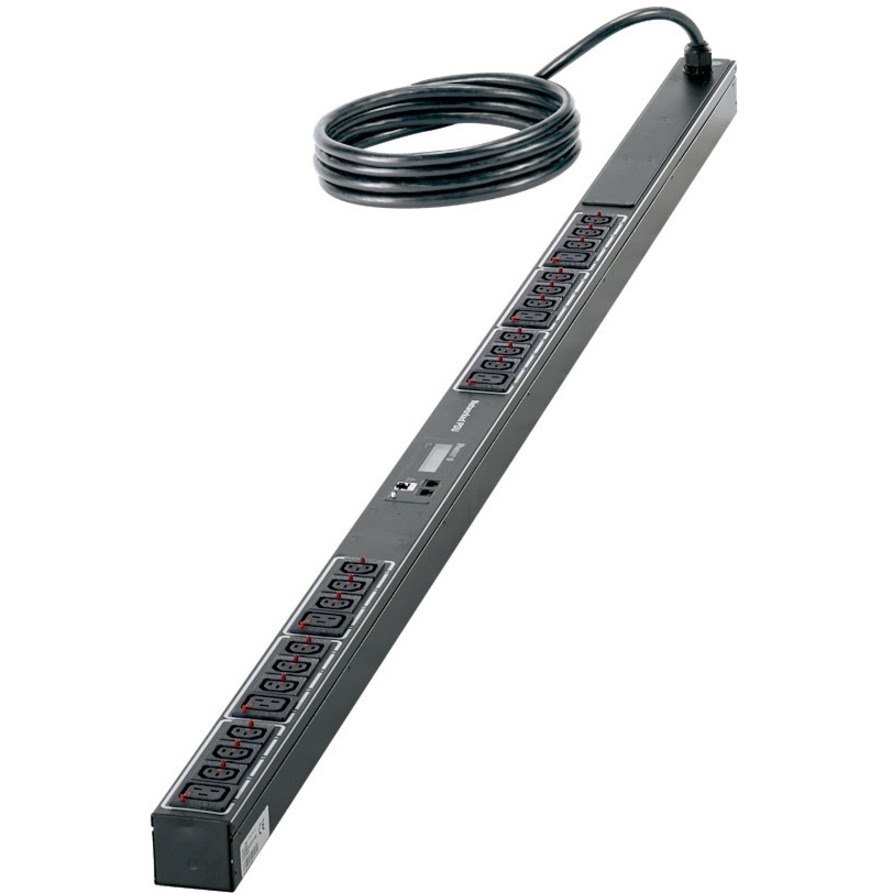

SmartZone Network-Enabled M Series Rack PDU for aggregate monitoring, vertical, 30A, 120V single phase, (24) NEMA 5-20R receptacles, LCD display, 10/100 RJ-45 Ethernet port with two RJ45 remote environmental ports, 10' (3m) NEMA L5-30P input cord. Dimensions: 70.0"H x 2.5"W x 2.4"D (1778mm x 64mm x 60mm)
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Line
- SmartZone
- Product Series
- M
- Packaged Quantity
- 1
- Product Type
- PDU
- Technical Information
- Plug/Connector Type
- NEMA L5-30P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 24 x NEMA 5-20R
- Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Input Current
- 30 A
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Height
- 70"
- Width
- 2.5"
- Depth
- 2.4"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
