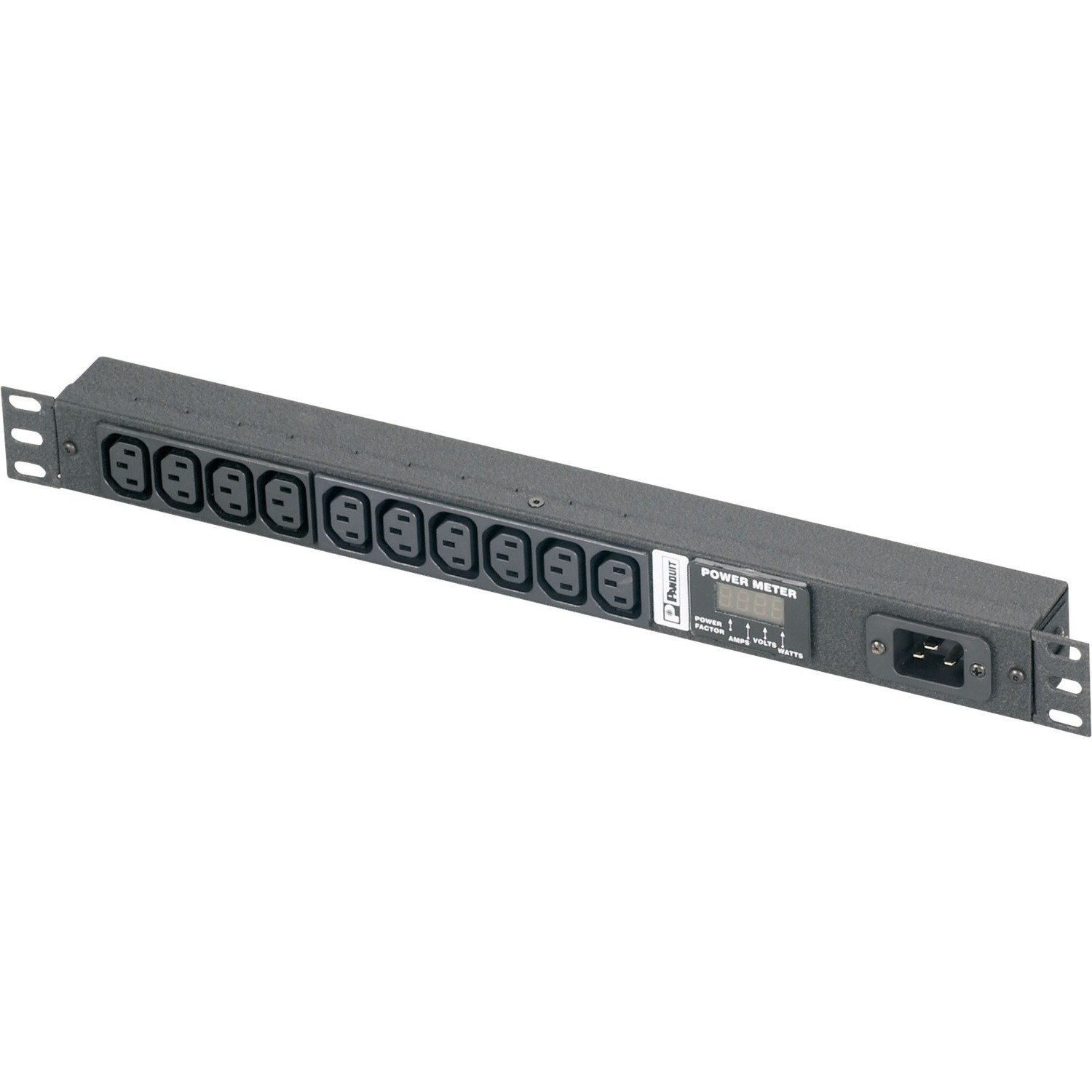

Panduit SmartZone M 10-Outlet PDU

  • Part: 2124370
  • Model: P1N1B1M2M10AKA0
$556.00

Availability

In Stock

SmartZone Network-Enabled M Series Rack PDU for aggregate monitoring, horizontal 1RU, 30A, 120V single phase, (10) NEMA 5-20R receptacles, LCD display, 10/100 RJ-45 Ethernet port with two RJ45 remote environmental ports, 10' (3m) NEMA L5-30P input cord. Dimensions: 1.7"H x 17.0"W x 8.8"D (44mm x 432mm x 225mm)

  • General Information
    • Manufacturer
    • PANDUIT CORP
    • Manufacturer Website Address
    • http://www.panduit.com
    • Brand Name
    • Panduit
    • Product Line
    • SmartZone
    • Product Series
    • M
    • Packaged Quantity
    • 1
    • Product Type
    • PDU
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Plug/Connector Type
    • NEMA L5-30P
    • Receptacle Type
    • NEMA 5-20R
    • Receptacle Detail
    • 10 x NEMA 5-20R
  • Power Description
    • Input Voltage
    • 120 V AC
    • Output Voltage
    • 120 V AC
    • Power Rating (Watt)
    • 2800 W
    • Input Current
    • 30 A
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
  • Physical Characteristics
    • Mounting Orientation
    • Horizontal
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 1U
    • Height
    • 1.7"
    • Width
    • 17"
    • Depth
    • 8.8"
  • Miscellaneous
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
