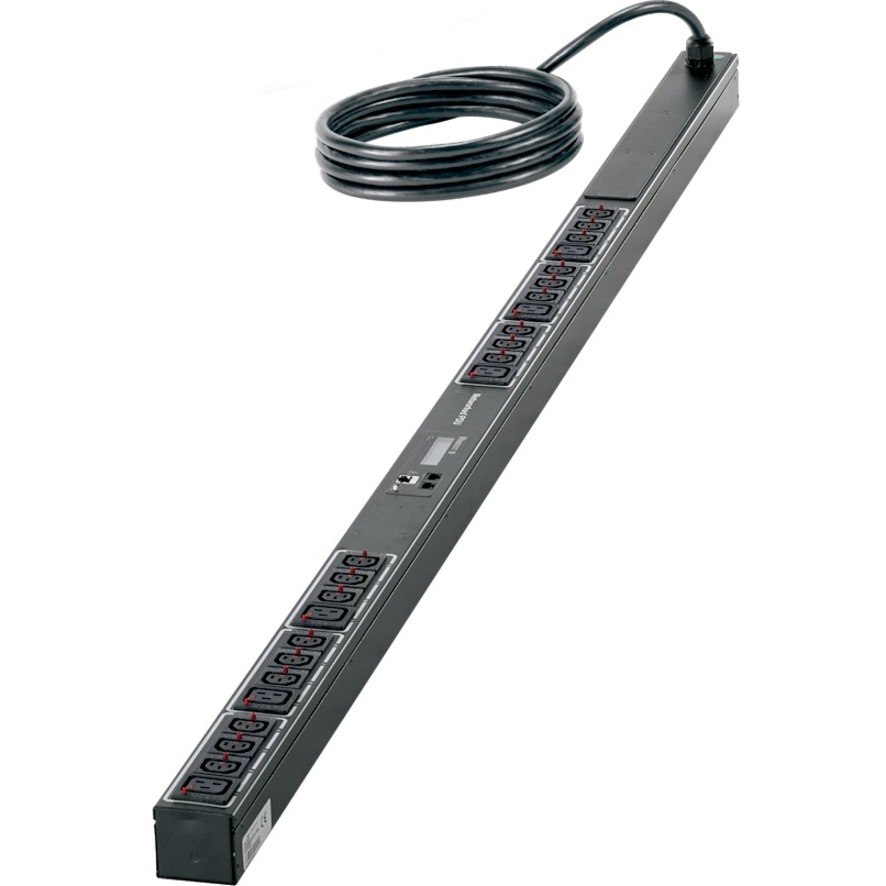

SmartZone™ Network-Enabled MS Series Rack PDU for aggregate power monitoring with switching, 60 A Single Phase Vertical Rack PDU, 208V, 18 IEC C-13 and 6 IEC C-19 locking receptacles, and IEC 60309 - 9H blue splash proof plug. Dimensions: 70.0"H x 3.25"W x 2.4"D (1778mm x 83mm x 60mm).
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Line
- SmartZone
- Packaged Quantity
- 1
- Product Type
- PDU
- Technical Information
- Plug/Connector Type
- IEC 60309 - 9H (3P+E) Blue
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 18 x IEC 60320 C13
- 6 x IEC 60320 C19
- Power Description
- Input Voltage
- 230 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 17.20 kW
- Input Current
- 60 A
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Height
- 70"
- Width
- 3.3"
- Depth
- 3.7"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
