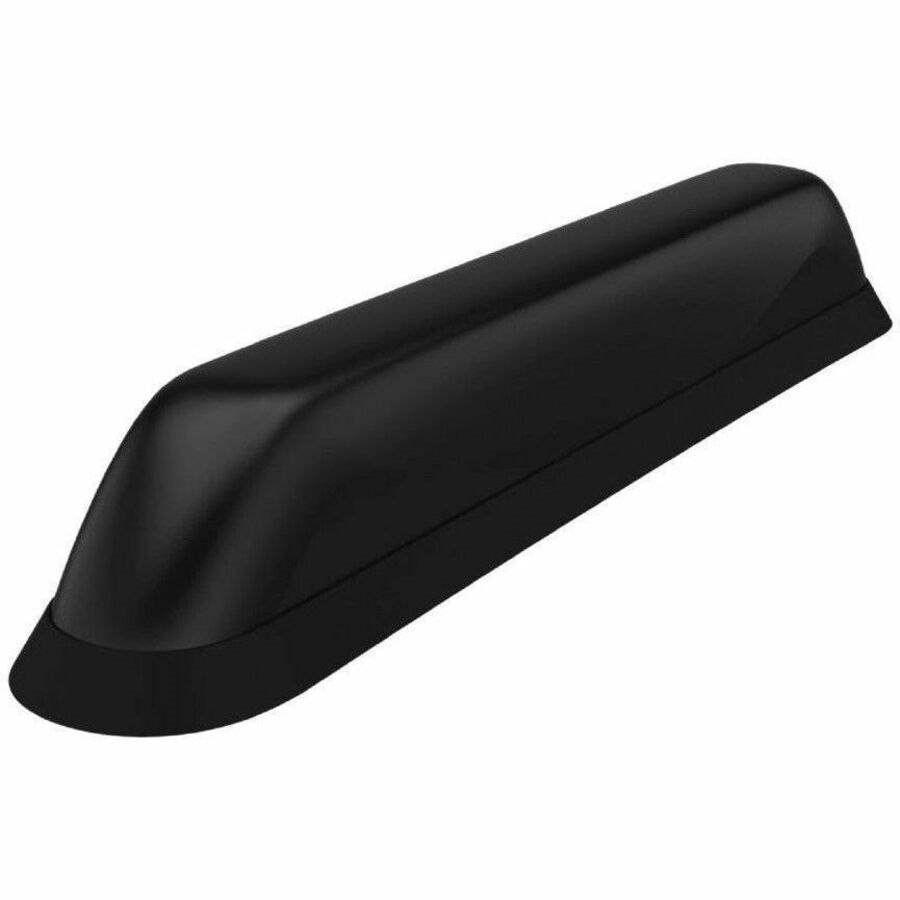

The 7-in-1 Reef Sharkfin is a specialized antenna solution engineered and certified for AirLink XR60 mobility applications.
The antenna has a sleek sharkfin design with discrete low-profile housing featuring a 4x4 MiMo for 4G/5G (617-6000MHz), dual-band 2.5/5GHz Wi-Fi, and an active L1/L5 GPS/GNSS antenna.
- General Information
- Manufacturer
- Sierra Wireless
- Manufacturer Website Address
- http://www.sierrawireless.com
- Brand Name
- Semtech
- Product Type
- Antenna
- Technical Information
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz to 960 MHz
- 1427 MHz to 6000 MHz
- 1559 MHz to 1612 MHz
- 1164 MHz to 1189 MHz
- Antenna Gain
- 30 dB
- Antenna Gain (Isotropic)
- 6.4 dBi
- Interfaces/Ports
- Connector Type
- SMA
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 2.05"
- Width
- 2.36"
- Form Factor
- Bolt Mount
- Miscellaneous
- Application/Usage
- GPS
- Router
- Cellular Network
- Package Contents
- Reef sharkfin antenna with pigtails
- extension cables
- Mounting Bolt
- Sealing Pad
- Compatibility
AirLin XR60 Rugged 5G Router
