- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Product Type
- LCD Rack Console

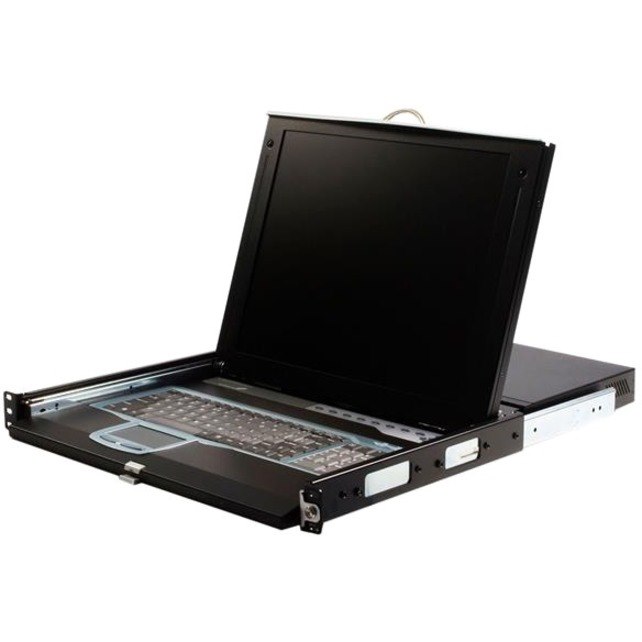

This 1U Rack Mount LCD KVM Console features an integrated 16 Port Multi-Platform IP KVM Switch module, 17in active matrix LCD monitor, 105-key keyboard and mouse touchpad neatly combined into 1U of space in any standard rack or cabinet 30in (or greater) in depth.
The IP KVM console offers a design similar to that of a rackmounted laptop computer - when the console is not in use, it's as simple as folding the LCD display and keyboard/mouse up and sliding it back into the server rack on the sturdy mounting rails (included).
A highly-scalable server control solution, the integrated 16-port IP-based KVM switch allows 16 computers (up to 136 computers through eight cascaded 16-port KVMs) to be directly controlled from the console or via the LAN, WAN or Internet, with system navigation options including front panel pushbuttons, hotkey commands and a convenient on-screen display.
To ensure a comprehensive server remote control solution, the LCD KVM Console offers BIOS level control and full interaction with your system's boot process, providing exceptional remote monitoring capability and control of every aspect of the connected computers.
The IP KVM Console also provides a secure and convenient operating experience, allowing each of the connected computers to be given unique names and locked to prevent unauthorized access.
Providing further versatility, the console is designed for guaranteed compatibility with Dell, Compaq, IBM and HP servers and systems and includes all required rack mounting hardware.
This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support.
More from the Manufacturer
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- KVM Switch
- Yes
- Number of Computers Supported
- 16
- Daisy Chain
- Yes
- Device Type
- LCD Rack Console
- Display & Graphics
- Screen Size
- 17"
- Display Screen Type
- LCD
- Screen Mode
- SXGA
- Screen Resolution
- 1280 x 1024
- Aspect Ratio
- 4:3
- Input Devices
- Keyboard
- Yes
- Pointing Device Type
- TouchPad
- Interfaces/Ports
- Network (RJ-45)
- Yes
- PS/2 Port
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of PS/2 Ports
- 2
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100V AC to 240V AC
- Power Consumption
- 48 W
- Physical Characteristics
- Product Color
- Black
- Rack Height
- 1U
- Height
- 8"
- Width
- 24.7"
- Depth
- 21.7"
- Miscellaneous
- Package Contents
- 1U 17" Rack Mount LCD Console with 16 Port IP KVM
- 2 x Rack Mount Brackets
- 1 x Power Plug
- 1 x Power Adapter
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
