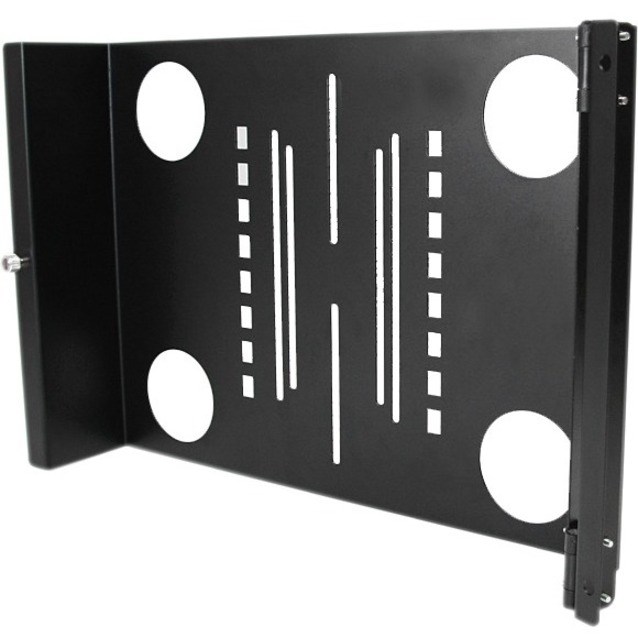

The RKLCDBKT Universal Swivel VESA LCD Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or touch screen into a server rack/cabinet, with tilt and swivel motion for maximum visible range. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Hinged on one of the rail mounts, the LCD bracket can be released to swing out from the rack, as well as offering vertical tilt allowing for perfect placement of your LCD panel with minimal adjustment.
Constructed from solid cold pressed steel (SPCC), the LCD mounting bracket is designed to support 75mm and 100mm VESA mounted panels, and meets ANSI/EIA RS-310-D rack mounting standards.
Backed by a StarTech.com Lifetime warranty.
More from the Manufacturer
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Product Type
- Mounting Bracket
- Warranty
- Limited Warranty
- Lifetime
- Product Information
- Device Supported
- LCD Monitor
- Number of Displays Supported
- 1
- Maximum Load Capacity
- 35.40 lb
- Minimum Screen Size Supported
- 17"
- Maximum Screen Size Supported
- 19"
- Features
- Swivel
- Physical Characteristics
- Product Color
- Black
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 75 x 75
- 100 x 100
- Product Material
- Steel
- Height
- 12.24"
- Width
- 19.12"
- Depth
- 4.80"
- Weight (Approximate)
- 6.30 lb
- Miscellaneous
- Package Contents
- 1 x Mounting Back Plate
- 1 x LCD Swivel Mounting Bracket
- 1 x Package of Assembly Screws (4 x M5*16 Panel screws, 4 x M5 Cage nuts, 2 x M4*8 screws)
- 1 x Package of 4 LCD Mounting Screws
- Compatibility
- LCD
- Certifications & Standards
- CE
- EIA-310D
VESA:
- MIS-D 75
- MIS-D 100
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
