Buy Supermicro X10SRM-F Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Micro ATX

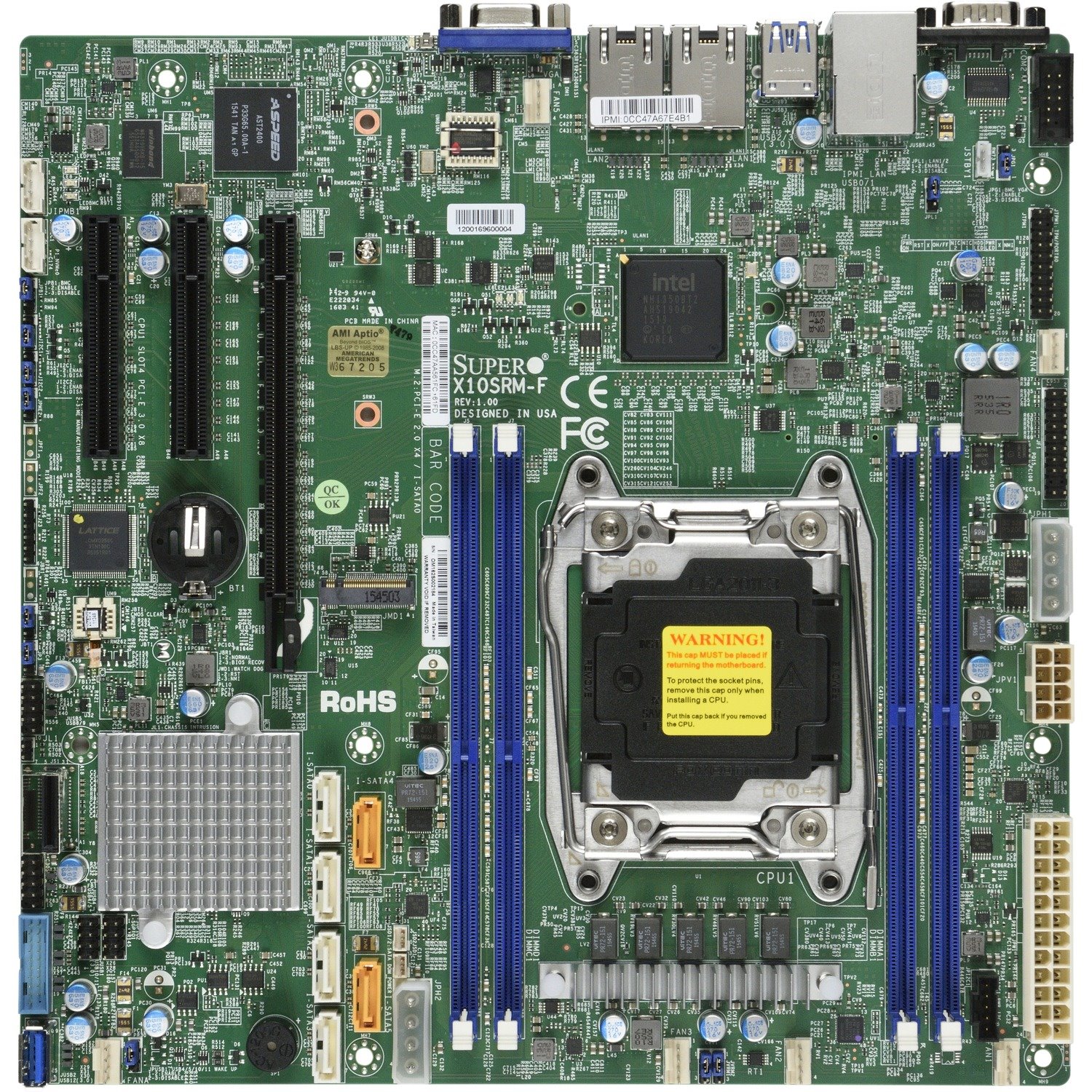

Supermicro X10SRM-F Server Motherboard - Intel C612 Chipset - Socket LGA 2011-v3 - Micro ATX

Part: 1253750
Model: MBD-X10SRM-F-B

$395.00

Availability

In Stock

Xeon® E5 Family Boards / Socket R3 (LGA 2011)

The new Supermicro's X10 UP Serverboards offer the latest Xeon E5-2600/1600 v4/v3 technology solutions with the highest levels of performance in different form factors to meet various application needs. X10SRL-F, with 7x PCIe (up to 5x PCIe 3.0 x8) slots onboard, is the best choice to maximize your I/O intensive application demand. On the other hand, X10SRi-F offers the latest virtualization support at low cost. For customers who need multiple I/O solutions in a 1U chassis, X10SRW-F (up to 3x AOC) and X10SRG-F (up to 5x AOC) provide the ultimate solutions. Supermicro's first UP Storage serverboard, X10SRH-CF/-CLN4F, brings the latest SAS3 (12Gb/s data rate) technology to the market with the best performance per dollar value.

General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Package Type
- Bulk
- Product Type
- Server Motherboard

Warranty
- Limited Warranty
- 1 Year

Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C612
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA 2011-v3
- Processor Supported
- Xeon

Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- RDIMM
- LRDIMM
- DIMM
- Maximum Memory Supported
- 512 GB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 1866 MHz
- 2400 MHz
- 1600 MHz
- 2133 MHz

I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 10
- 1
- 0

Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Model
- AST2400

Network & Communication
- Gigabit Ethernet
- Yes

I/O Expansions
- Total Number of Expansion Slots
- 3
- Total Number of PCI Express Slots
- 3
- Number of PCI Express x8 Slots
- 2
- Number of PCI Express x16 Slots
- 1

Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 3.0 Ports
- 2
- VGA
- Yes

Onboard Interfaces
- Number of SATA Interfaces
- 10
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 3.0 Ports
- 3

Physical Characteristics
- Form Factor
- Micro ATX
- Width
- 9.6"
- Depth
- 9.6"

Miscellaneous
- Compatibility
- Supermicro SuperChassis(s)

  1U Chassis:
  - SC514-R400C
  - SC514-505
  - SC515-R407
  - SC515-505
  - SC515-350
  - SC113MFAC2-605CB
  - SC113MFAC2-R606CB
  - SC813MFTQC-R407CB
  - SC813MFTQC-350CB
  2U Chassis:
  - SC825TQC-R740LPB
  - SC825MTQ-R700LPB
  - SC213LT-600LPB
  - SC823TQ-653LPB
  3U Chassis:
  - SC833T-653B
  Mid/Mini Tower Chassis:
  - SC731i-300B
- Environmentally Friendly
- Yes
