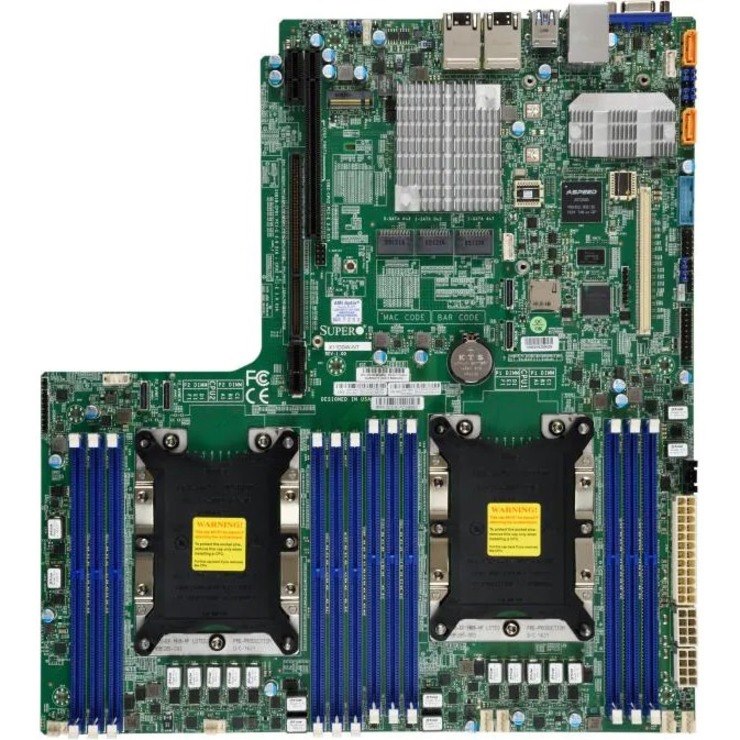

Supermicro X11DDW-NT Server Motherboard - Intel C622 Chipset - Socket P LGA-3647 - Proprietary Form Factor

  • Part: 1404404
  • Model: MBD-X11DDW-NT-O
$808.75

Availability

In Stock
  • General Information
    • Manufacturer
    • Supermicro Computer, Inc
    • Manufacturer Website Address
    • http://www.supermicro.com
    • Brand Name
    • Supermicro
    • Packaged Quantity
    • 1
    • Package Type
    • Retail
    • Product Type
    • Server Motherboard

DP Xeon® Motherboards - Socket P (LGA 3647)

BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)

Supermicro's new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.

  • Processor & Chipset
    • Chipset Manufacturer
    • Intel
    • Chipset Model
    • C622
    • Total Processor Supported
    • 2
    • Processor Socket
    • Socket P LGA-3647
    • Processor Supported
    • Xeon
  • Memory
    • Number of Memory Slots
    • 12
    • Memory Form Factor
    • RDIMM
    • DIMM
    • LRDIMM
    • Maximum Memory Supported
    • 1.50 TB
    • Memory Technology
    • DDR4 SDRAM
    • Memory Speed Supported
    • 2666 MHz
    • 2400 MHz
    • 2133 MHz
  • I/O Controller
    • Controller Type
    • Serial ATA/600
    • RAID Supported
    • Yes
    • RAID Levels
    • 10
    • 5
    • 1
    • 0
  • Video
    • Onboard Video
    • On-board Video Chipset
    • Graphics Controller Model
    • AST2500
  • Audio
    • Audio Channels
    • 7.1
  • Network & Communication
    • 10Gigabit Ethernet
    • Yes
  • I/O Expansions
    • Total Number of Expansion Slots
    • 3
    • Total Number of PCI Express Slots
    • 3
    • Number of PCI Express x16 Slots
    • 2
    • Number of PCI Express x32 Slots
    • 1
  • Interfaces/Ports
    • Total Number of USB Ports
    • 4
    • Number of USB 3.0 Ports
    • 4
    • VGA
    • Yes
  • Onboard Interfaces
    • Number of SATA Interfaces
    • 14
    • Number of M.2 Interfaces
    • 1
    • Total Number of Onboard USB Ports
    • 2
    • Number of Onboard USB 3.0 Ports
    • 2
    • Number of NVMe Ports
    • 4
  • Physical Characteristics
    • Form Factor
    • Proprietary Form Factor
    • Width
    • 13.4"
    • Depth
    • 12.3"
  • Miscellaneous
    • Compatibility

    • SuperServer:

      • SYS-1029P-WTRT
      • SYS-6029P-WTRT

      Chassis:

      • SC815TQC-R706WB2
      • SC815TQC-605WB
      • SC116AC2-R706WB2
      • SC113AC2-R706WB2
      • SC113AC2-605WB
      • SC825TQC-R1K03WB
      • SC826BAC4-R1K23WB
