- General Information
- Manufacturer
- Taoglas
- Manufacturer Website Address
- http://www.taoglas.com
- Brand Name
- Taoglas
- Product Line
- Spartan
- Packaged Quantity
- 1
- Product Type
- Antenna

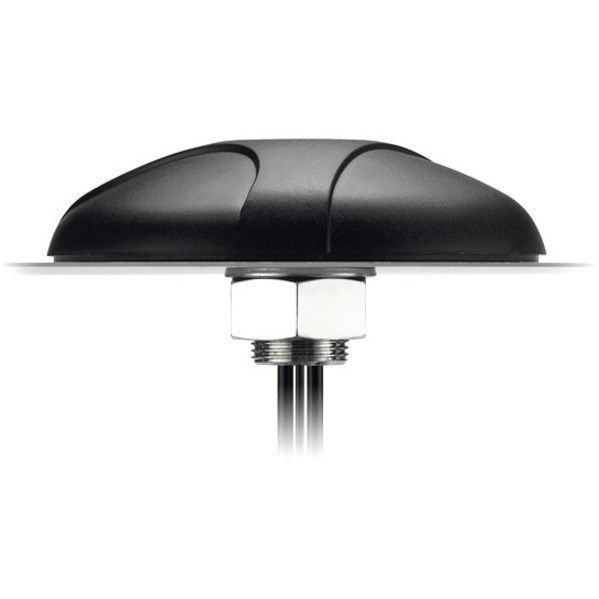

The Spartan MA602 antenna is a heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
The Spartan is unique in the market because it combines a 3in1 GPS/GLONASS/GALILEO, Cellular (3G and 2G) and IRIDIUM, heavy-duty antenna with high efficiency in a compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket.
For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the Spartan provides a robust, rugged antenna that is durable, even in extreme environments.
Customized cables and connectors version available.
- Technical Information
- Operating Frequency Range
- 1575 MHz to 1602 MHz
- 824 MHz to 2170 MHz
- 1616 MHz to 1626.5 MHz
- Antenna Gain (Isotropic)
- 4 dBi
- Interfaces/Ports
- Connector Type
- SMA
- Physical Characteristics
- Product Color
- Black
- Height
- 1.38"
- Diameter
- 5.73"
- Form Factor
- Screw Mount
- Weight (Approximate)
- 2.27 lb
- Miscellaneous
- Application/Usage
- GPS
- GLONASS
- Cellular Network
- Outdoor
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
