- General Information
- Manufacturer
- Taoglas
- Manufacturer Website Address
- http://www.taoglas.com
- Brand Name
- Taoglas
- Product Line
- Spartan
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk

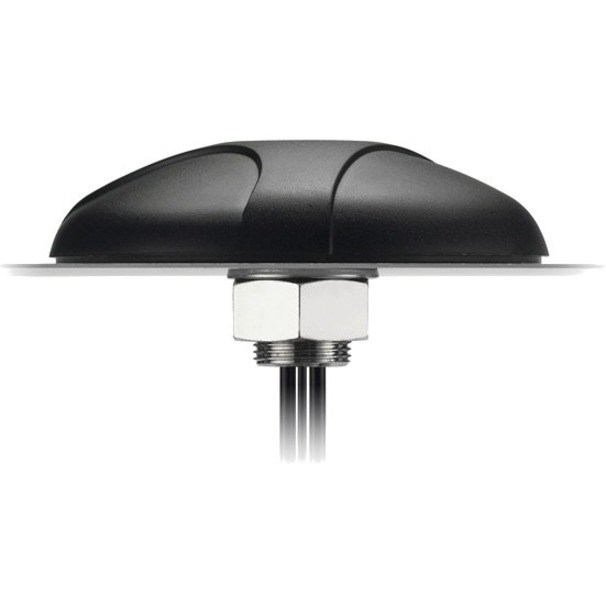

The Spartan MA671 Public Safety 3 x MIMO antenna is a low profile, heavy - duty, fully IP67 waterproof external M2M antenna for use in remote monitoring and public safety applications.
The Spartan 3 x MIMO antenna is unique in t he market because it combines thr ee 4.5~4.9GHz antenna elements in a heavy - duty structure with high efficiency in a low profile compact format. The antenna screws down permanently onto a roof or metal panel and can be pole or wall - mounted. Two of the antenna elements are vertically polarized and one is horizontally polarized to maximize diversity gain and MIMO throughput.
For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 40mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments.
- Technical Information
- Frequency Band Type
- SHF
- Operating Frequency Range
- 4.5 GHz to 4.9 GHz
- Antenna Gain (Isotropic)
- 4.4 dBi
- Interfaces/Ports
- Connector Type
- RP-SMA
- Physical Characteristics
- Product Color
- Black
- Height
- 1.97"
- Diameter
- 5.91"
- Form Factor
- Roof/Panel/Wall/Pole/Screw
- Weight (Approximate)
- 1.25 lb
- Miscellaneous
- Application/Usage
- Outdoor
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
