What This Product Does

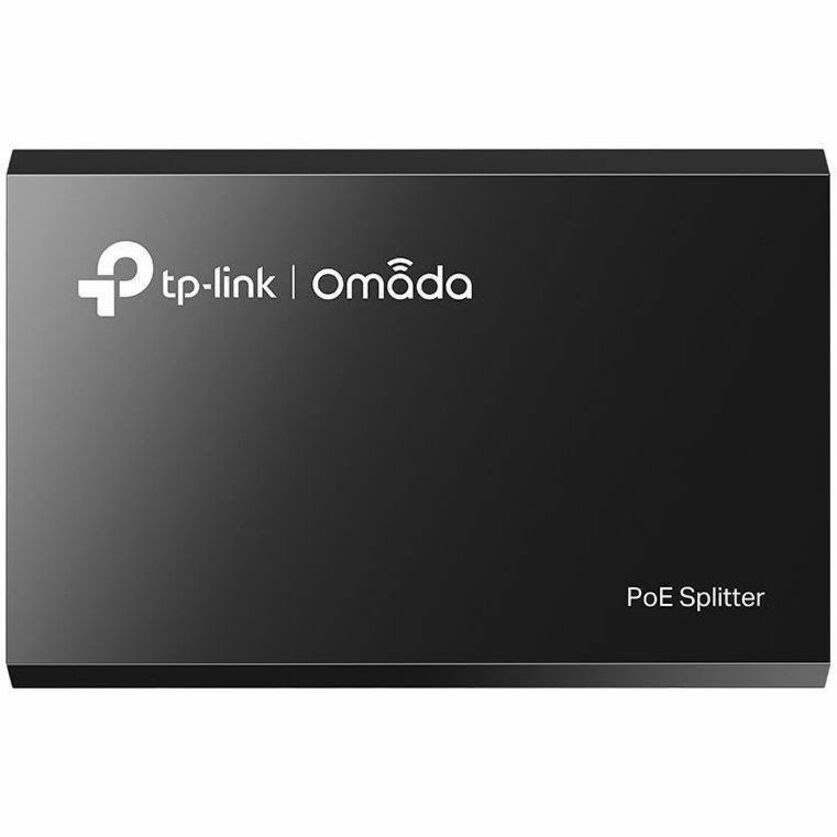

The PoE Splitter POE10R (TL-POE10R) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Type
- PoE Splitter
- Technical Information
- Protection Type
- Short Circuit
- Power Description
- Minimum Output Voltage
- 5 V DC
- Maximum Output Voltage
- 12 V DC
- Minimum Output Current
- 1 A
- Maximum Output Current
- 2 A
- Maximum Output Power
- 12 W
- Interfaces/Ports
- Input Ports
- 1 x PoE
- Output Ports
- 1 x RJ-45
- Physical Characteristics
- Height
- 0.9"
- Width
- 3.2"
- Depth
- 2.1"
- Miscellaneous
- Package Contents
- POE10R PoE Splitter
- Power Cord
- RJ45 Cable
- Installation Guide
- Compatibility
Compatible Products:
- Access Point
- IP Camera
- IP Phone
- TL-SF1008P Desktop Switch
- Certifications & Standards
- IEEE 802.3af
- IEEE802.3
- IEEE802.3u
- IEEE802.3ab
- FCC
- CE
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
