Transition Networks N-FXE-SC-02 Fast Ethernet Card

  • Part: 2150425
  • Model: N-FXE-SC-02-F
$131.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Transition Networks, Inc
    • Manufacturer Website Address
    • http://www.transition.com
    • Brand Name
    • Transition Networks
    • Product Series
    • N-FXE-xx-02
    • Product Type
    • Fast Ethernet Card

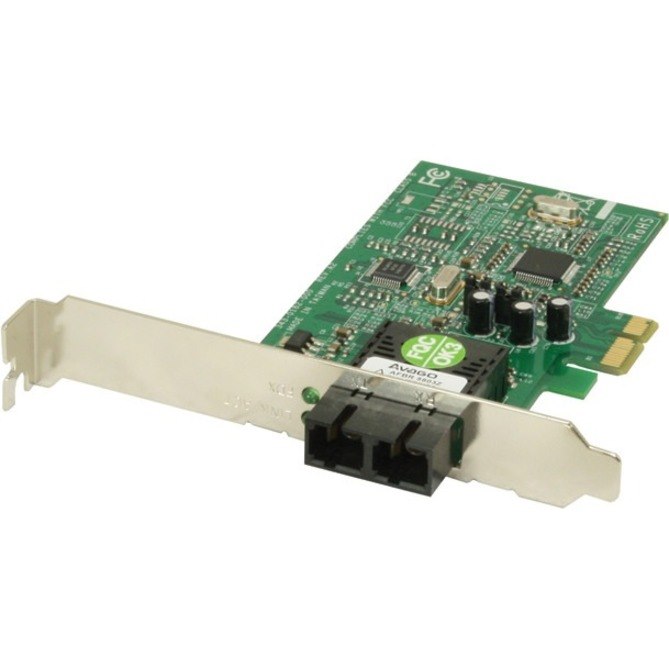

N-FXE-xx-02 is a Fiber Fast Ethernet to PCI-Express (PCIe) bus adapter that fully complies with all IEEE 802.3u and 100Base-FX standards. It provides up to 200Mbps full-duplex bandwidth capacity to support high-end systems. In addition, with advanced functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration and secure networking to users in a standards-based environment.

The PCI-Express (PCIe) design gives you the maximum possible bandwidth and bus efficiency, along with low power consumption.

For users equipped with PCI-Express systems, N-FXE-xx-02 provides the ability to easily build or connect to Fast Ethernet fiber networks.

  • Warranty
    • Limited Warranty
    • Lifetime

  • Interfaces/Ports
    • Host Interface
    • PCI Express 1.1 x1
    • Total Number of Ports
    • 1
    • Number of SC Ports
    • 1
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
  • Network & Communication
    • Network Technology
    • 100Base-FX
  • Physical Characteristics
    • Form Factor
    • Plug-in Card
    • Height
    • 2.7"
    • Depth
    • 4.3"
    • Weight (Approximate)
    • 1 lb
  • Miscellaneous
    • Package Contents
      • N-FXE-SC-02 Fast Ethernet Card
      • Low-profile bracket
    • Environmentally Friendly
    • Yes
    • Country of Origin
    • Taiwan
