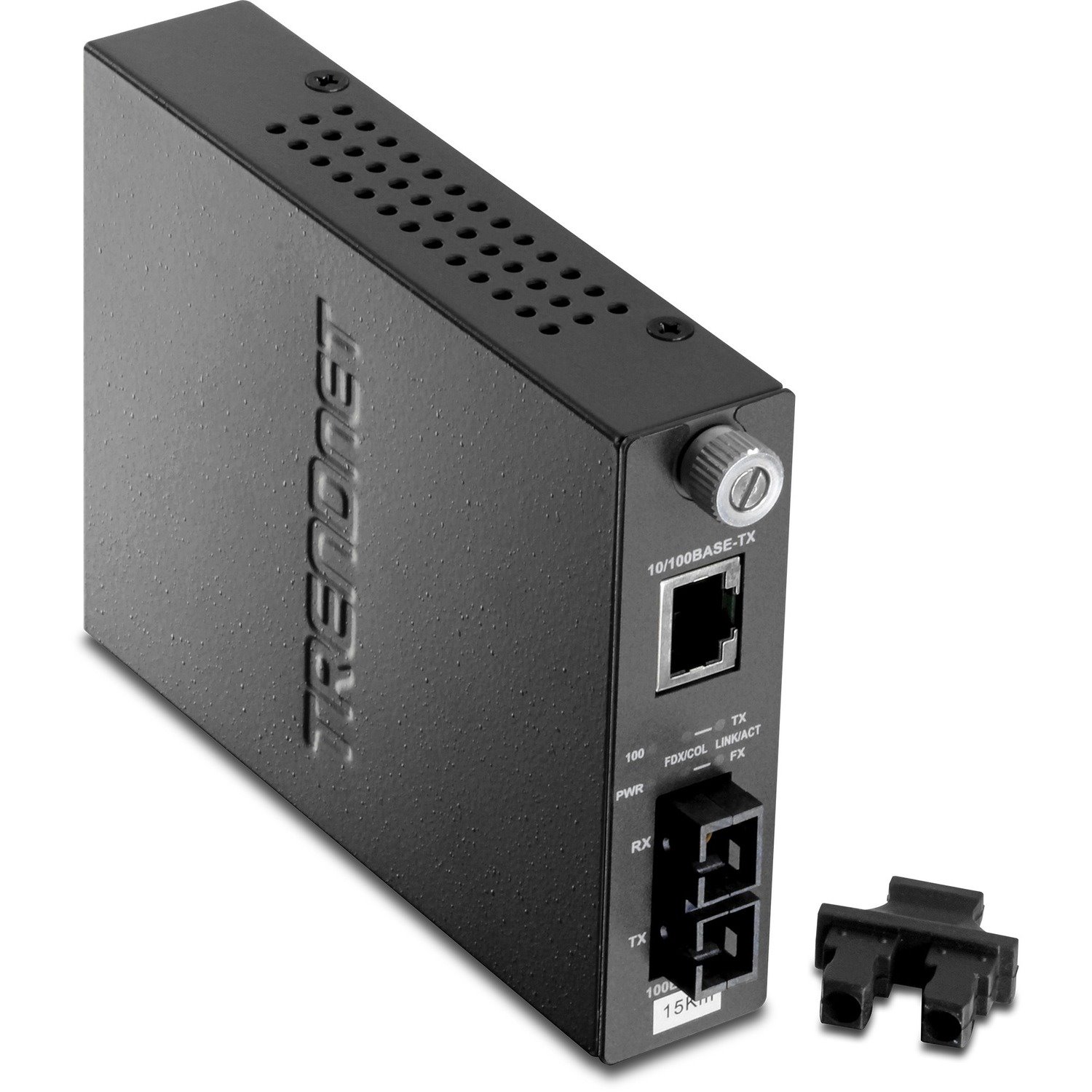

- The TFC-110S15 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit
- This converter is a Single Mode SC-Type fiber converter spanning distances up to 15km (9.3 miles)
- Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type)
- One 10/100 Base-TX auto-negotiation RJ-45 port
- Auto-negotiation 10/100 Mbps connection speed and half/full-duplex mode on TX port
- One 100 Mbps fiber port with single-mode SC-type connector
- Half/full-duplex mode selector on fiber port
- Status LED indicators for power, link/activity, full-duplex, and speed
- NDAA / TAA compliant (U.S. and Canada only)
The TFC-110S15 Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with single-mode SC-type connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Dip-switch for full and half duplex selection on fiber port
Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Lifetime TRENDnet Manufacturer's Warranty
PACKAGE CONTENTS
TFC-110S15
Multi-Language Quick Installation Guide
Power Adapter (5V, 1A)
- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Condition
- New
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 3 Year Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Maximum Distance Supported
- 15 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX
- 100Base-FX
- Power Description
- Input Voltage
- 7.5 V DC
- Power Consumption
- 7.20 W
- Physical Characteristics
- Form Factor
- Wall Mountable
- Rack-mountable
- Height
- 5"
- Width
- 12"
- Depth
- 17"
- Weight (Approximate)
- 8.80 lb
- Miscellaneous
- Additional Information
- Wavelength: 1300nm
- Protocol: CSMA/CD
- Supported Frame Size: Standard Ethernet up to 1522-Byte
- The fiber connection can be multi-mode SC, MT-RJ
- Optional 19" system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
Used with TFC1600. TFC-1600 is a 19" system chassis. holds up to 16 TFC series Media Converters TFC-110MSC, TFC-110MST, TFC110S15, TFC-110S30 and TFC-1000MSC
- Certifications & Standards
- IEEE 802.3: 10Base-T
- IEEE 802.3u: 100Base-TX and 100Base-FX
- FCC
- CE
- VCCI
- Country of Origin
- China
