Tripp Lite by Eaton 24-Port Gigabit Ethernet Switch with 12 Outlet PDU, 2 SFP Ports

  • Part: 1186953
  • Model: NSU-G24C2
$338.00

Availability

Out of Stock

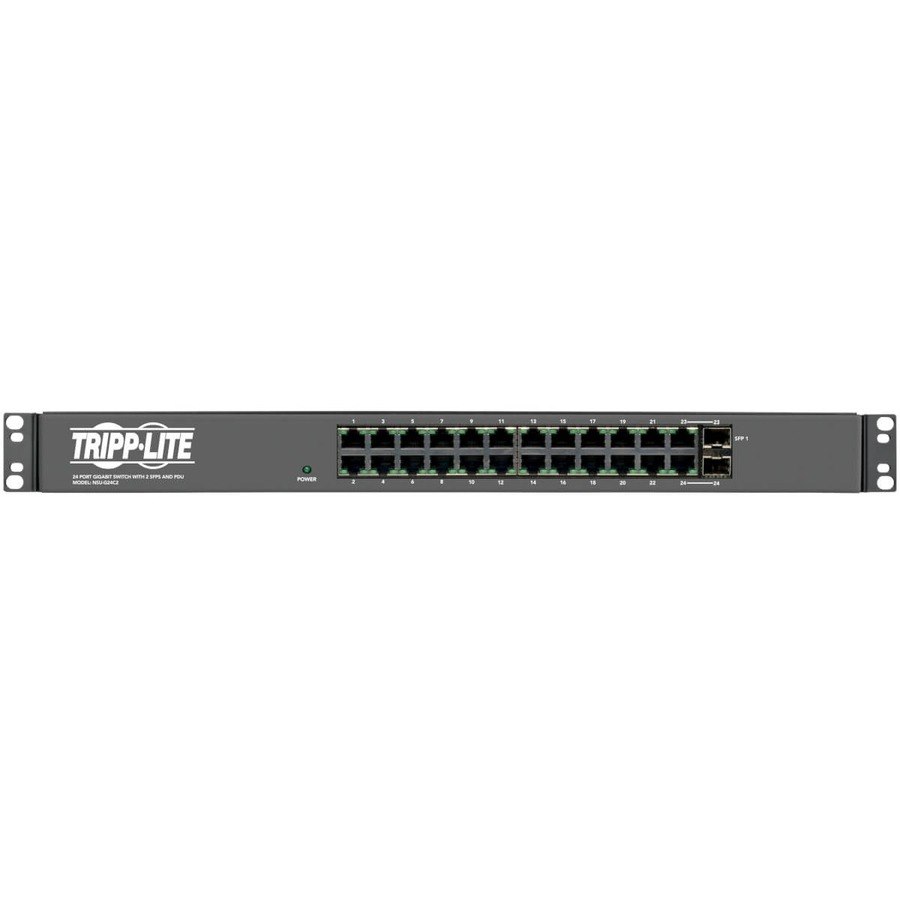

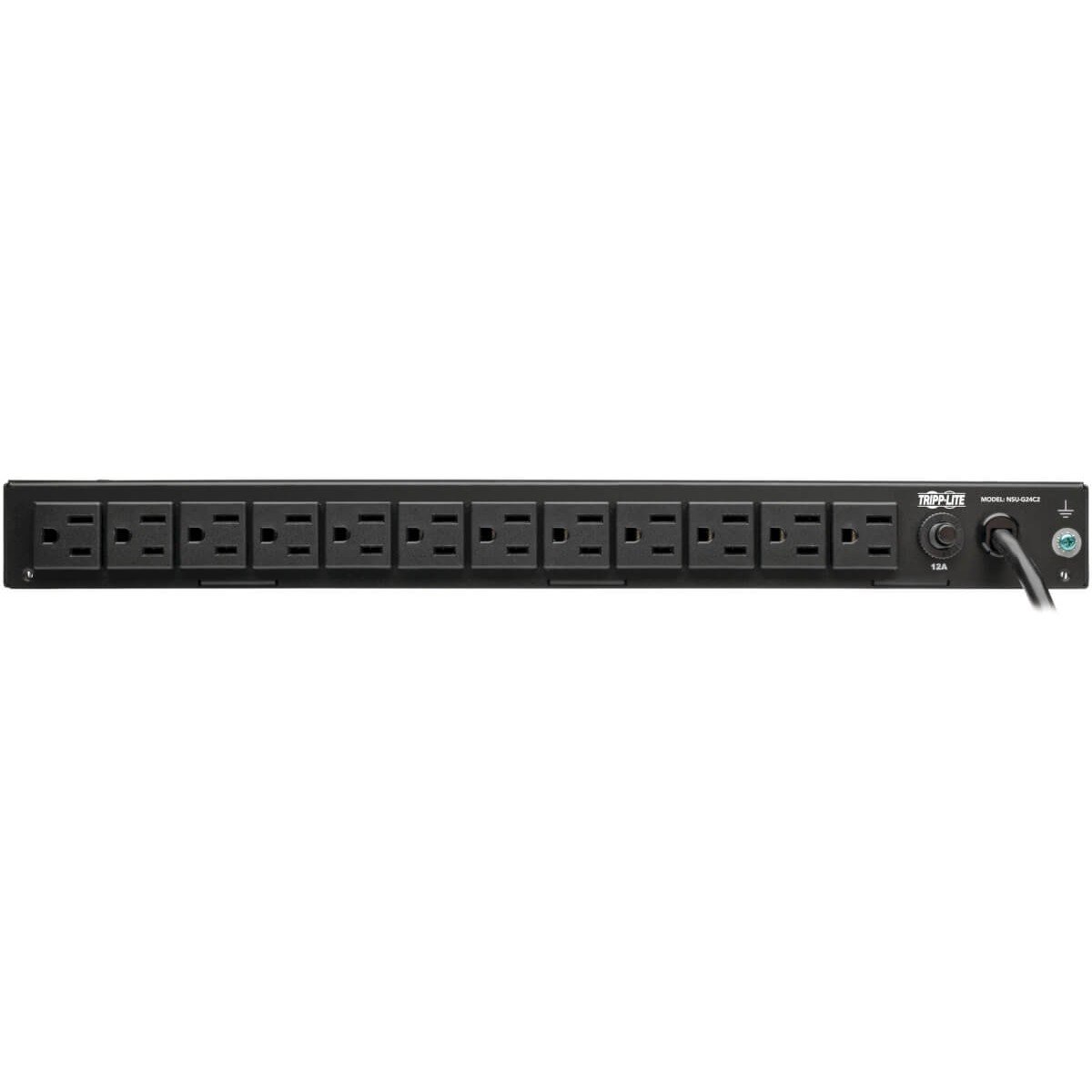

Tripp Lite's NSU-G24C2 combines a 1.44kW single-phase 120V Basic Power Distribution Unit (PDU) and an Unmanaged 24-Port Gigabit Ethernet Switch with 2 Combo SFP (Small Form-Factor Pluggable) uplink ports for an all-in-one 1U rack-mount solution. It is perfect for racks in smaller, distributed networks where space is at a premium by providing both power and Ethernet connectivity in only 1U of rack space. The power distribution unit supplies continuous AC power from a connected UPS system or alternate source and contains 12 NEMA 5-15R outlets allowing you to power critical IT equipment. The Gigabit Ethernet Network Switch has 24 RJ45 ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for true "plug and play" capability. Two Combo SFP ports can uplink to other switches using optical fiber. Utilizing Green Ethernet technology, power consumption is automatically lowered by (i) turning off Ethernet ports not in use or connected to a shutdown computer, and (ii) detecting the connected network cable lengths to adjust the power usage to only what is necessary. Constructed of heavy-duty steel housing, the NSU-G24C2 has a rugged design built for years of reliable performance.

  • General Information
    • Manufacturer
    • Eaton Corporation
    • Manufacturer Website Address
    • http://www.eaton.com
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • PDU
  • Warranty
    • Limited Warranty
    • 5 Year

  • Technical Information
    • PDU Type
    • Basic
    • Phase
    • Single Phase
    • Plug/Connector Type
    • NEMA 5-15P
    • Receptacle Type
    • NEMA 5-15R
    • Receptacle Detail
    • 12 x NEMA 5-15R
  • Power Description
    • Input Voltage
    • 120 V AC
    • Power Rating (Watt)
    • 1440 W
    • Input Current
    • 12 A
    • Circuit Breaker
    • Yes
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Mounting Orientation
    • Horizontal
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 1U
    • Cord Length
    • 6 ft
    • Height
    • 1.7"
    • Width
    • 18.7"
    • Depth
    • 8.4"
    • Weight (Approximate)
    • 6.75 lb
  • Miscellaneous
    • Package Contents
      • PDU Ethernet Switch 1U Combo with 24 Unmanaged Gigabit Ports and 2 SFP Ports
      • Rack-mount Hardware
      • Owner's Manual
    • Certifications & Standards
      • IEEE 802.3ab (1000BASE-T GbE)
      • IEEE 802.3u (100BASE-TX Fast Ethernet)
      • IEEE 802.3i (10BASE-T Ethernet)
      • IEEE 802.3x (Full Duplex/Flow Control)
      • IEEE 802.3 (NWAY Auto-Negotiation)
      • 802.3ac (VLAN) and 802.3az (Energy Efficient Ethernet)
    • Country of Origin
    • China
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
