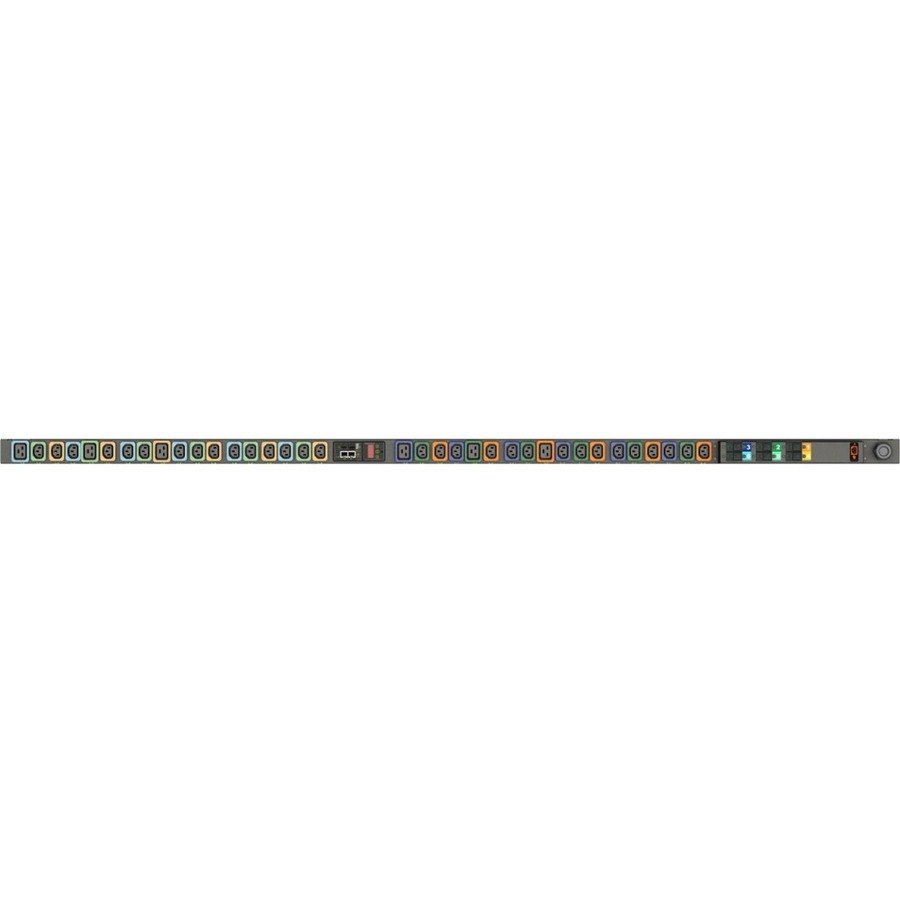

The GU30010L provides IP-based monitoring and outlet control with quick access to real-time outlet-level power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, GU30010L optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Type
- PDU
- Technical Information
- PDU Type
- Switched
- Phase
- Three Phase
- Plug/Connector Type
- IEC 60309 3P+N+E (IP44)
- Plug/Connector Detail
- 1 x IEC 60309 3P+N+E (IP44)
- Receptacle Type
- U-Lock IEC 60320 C19
- U-Lock IEC 60320 C13
- Receptacle Detail
- 6 x U-Lock IEC 60320 C19
- 30 x U-Lock IEC 60320 C13
- Protection Type
- Overcurrent Protection
- Single Pole
- Locking Receptacles
- IEC 60320 C13
- IEC 60320 C19
- Power Description
- Input Voltage
- 230 V AC
- 415 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- 346 V AC - 415 V AC
- Output Voltage
- 230 V AC
- Power Rating (Watt)
- 22 kW
- Input Current
- 32 A
- Management
- Management
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Width
- 2"
- Depth
- 2.6"
- Length
- 72"
- Miscellaneous
- TAA Compliant
- Yes
