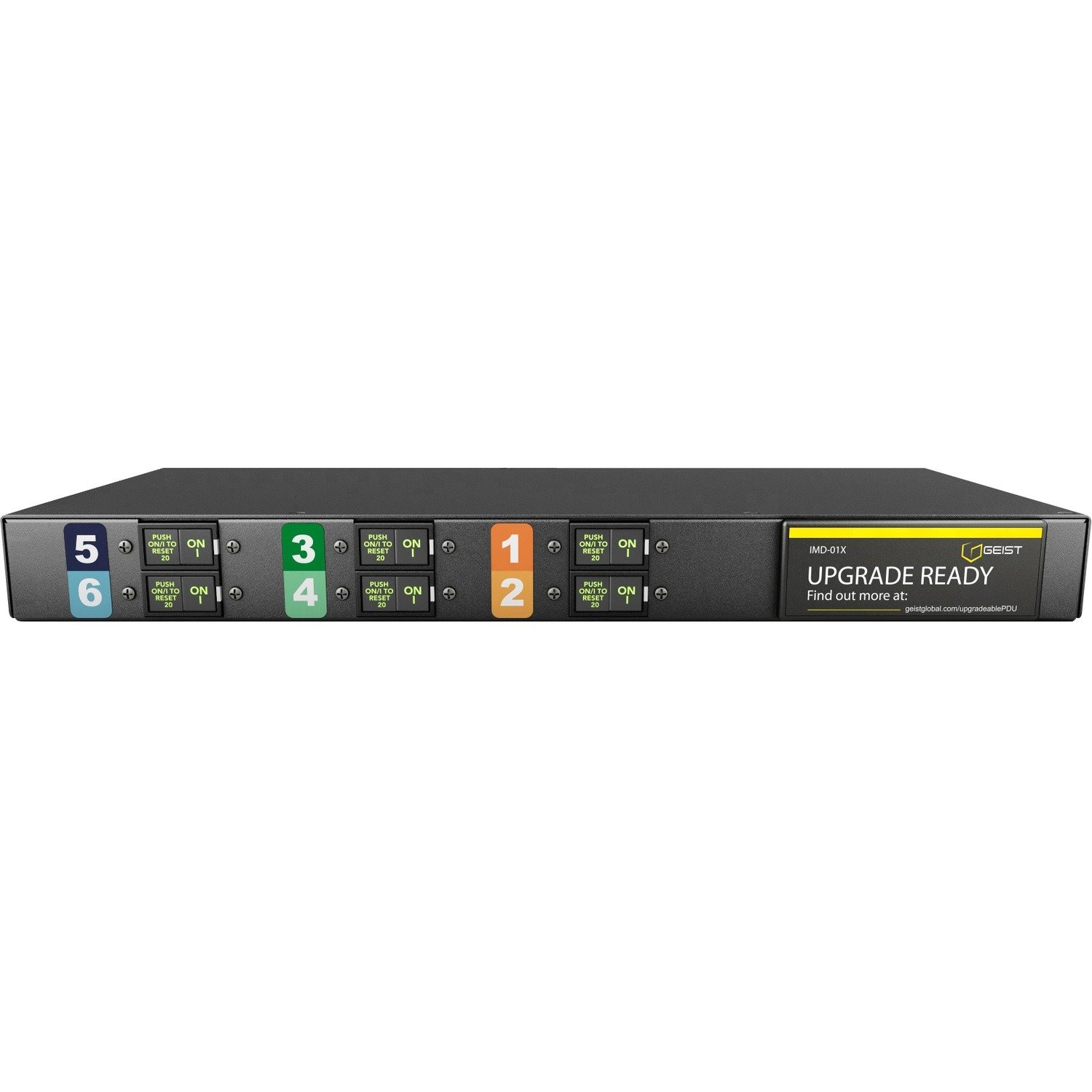

I10108L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Type
- PDU
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Basic
- Phase
- Three Phase
- Plug/Connector Type
- NEMA L22-30P
- Plug/Connector Detail
- 1 x NEMA L22-30P
- Receptacle Type

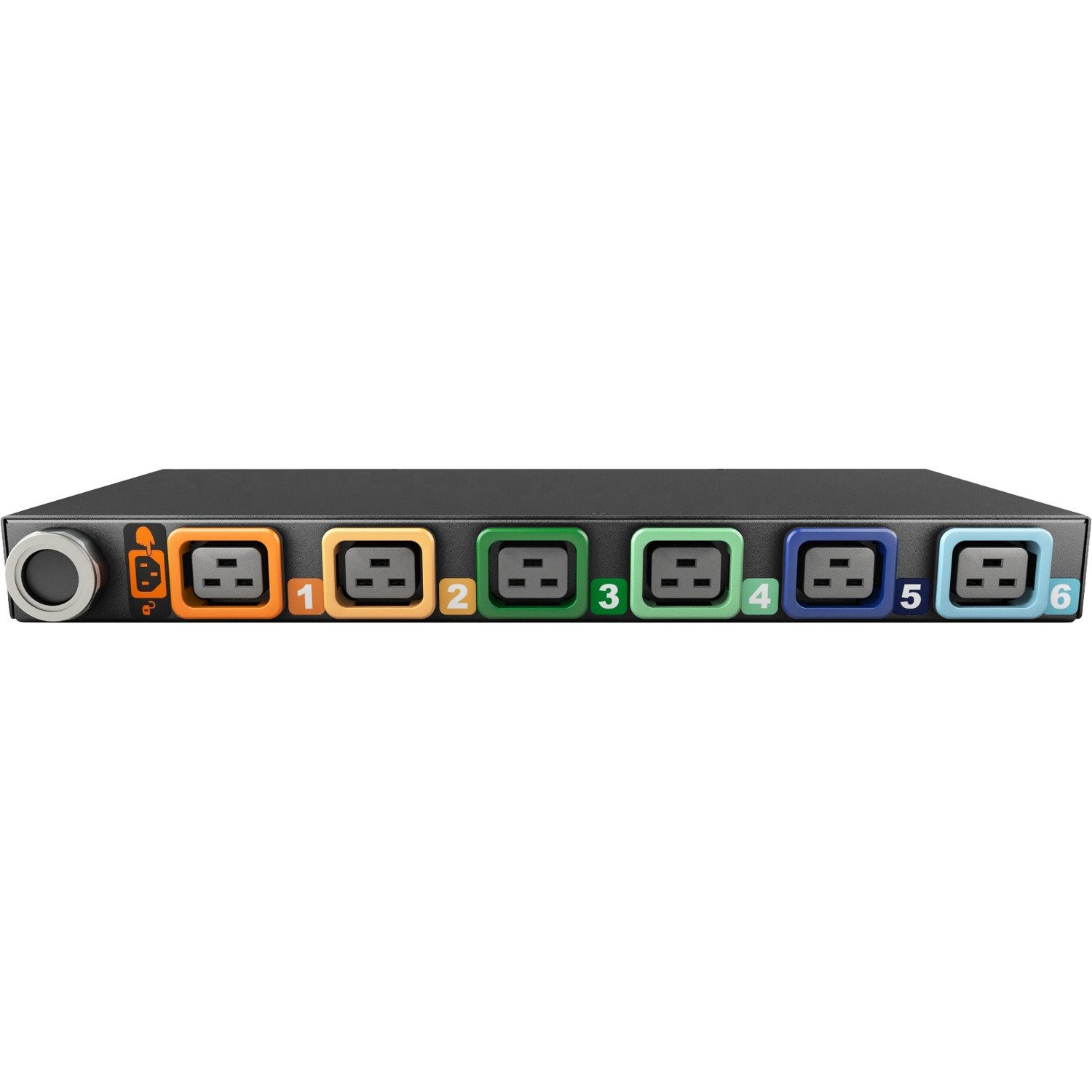

- U-Lock IEC 60320 C19
- Receptacle Detail
- 6 x U-Lock IEC 60320 C19
- Protection Type
- Overcurrent Protection
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 230 V AC - 400 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 16.60 kW
- Input Current
- 30 A
- Physical Characteristics
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17"
- Depth
- 8.5"
- Miscellaneous
- Package Contents
- MN01X1R1-06L193-3TL56A0H10-S 6-Outlets PDU
- Adjustable Mount Brackets
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
