Introduction

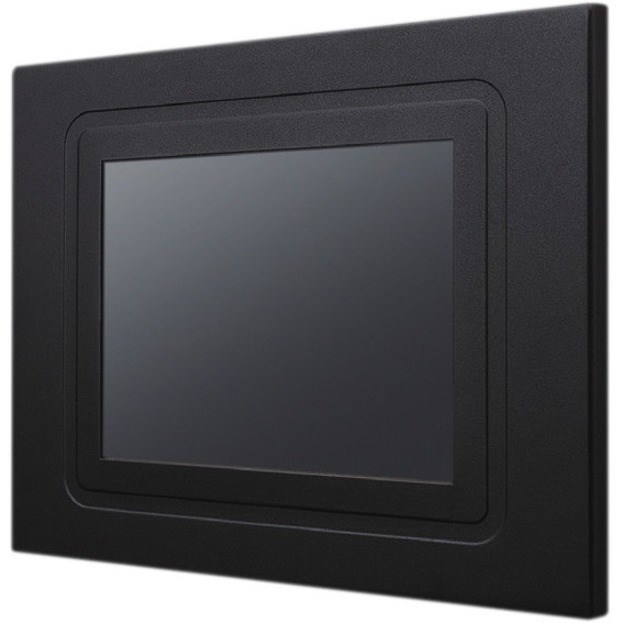

The Advantech IDS-3206 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Packaged Quantity
- 1
- Product Type
- LCD Touchscreen Monitor
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Screen Size Class
- 7"
- Viewable Screen Size
- 6.5"
- Screen Mode
- XGA
- Response Time
- 25 ms
- Mount Type
- Panel Mount
- Rear Mount
- Backlight Technology
- LED
- Video
- Maximum Resolution
- 640 x 480
- Color Supported
- 16.2 Million Colors
- Native Contrast Ratio
- 600:1
- Brightness
- 800 Nit
- Touchscreen Information
- Touchscreen Type
- 4-wire Resistive

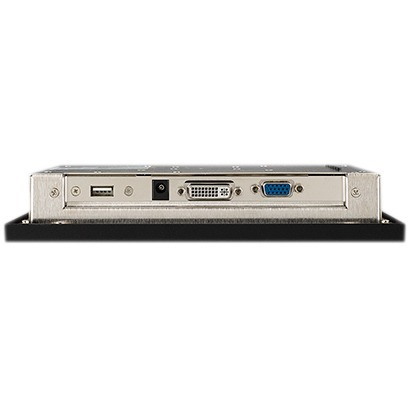

- Interfaces/Ports
- DVI
- Yes
- USB
- Yes
- VGA
- Yes
- Number of USB Ports
- 1

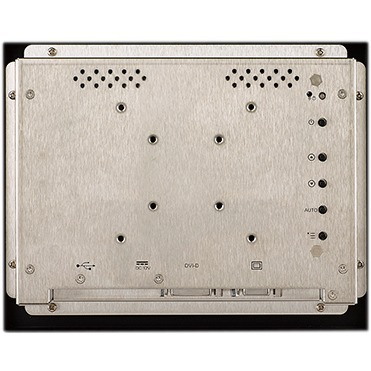

- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 75 x 75
- Height
- 6.8"
- Width
- 8.6"
- Depth
- 1.5"
- Weight (Approximate)
- 2.65 lb
- Miscellaneous
- Package Contents
- IDS-3206 6.5" VGA Industrial Panel Mount Monitor
- 1 x M Cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA cable 15P(M) 1.8 meter
- 4 x Clamper
- 4 x Screw of clamper M4_25L
- USB Cable
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
