- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- LCD Touchscreen Monitor
Introduction

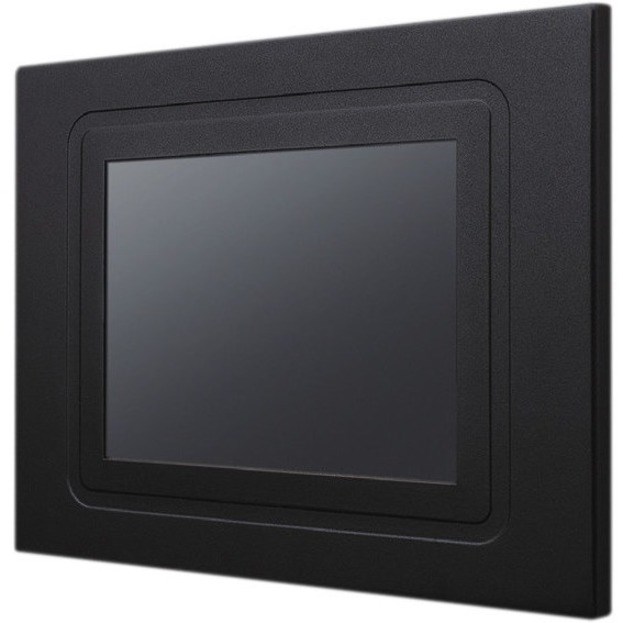

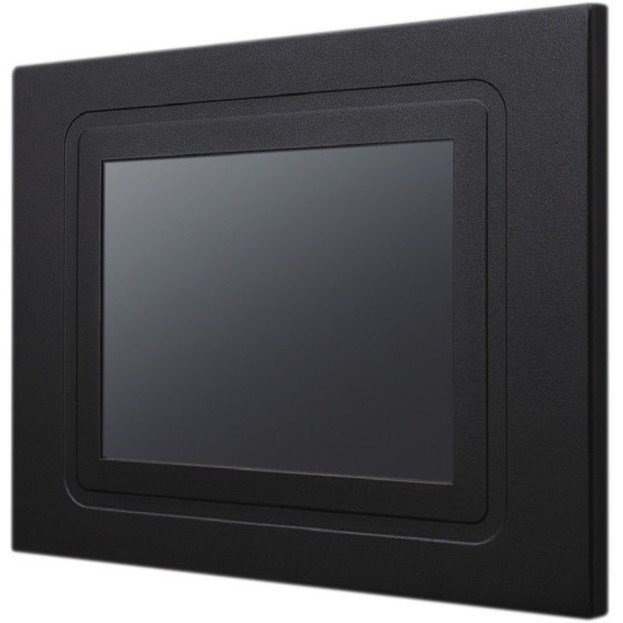

The Advantech IDS-3206 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Screen Size Class
- 7"
- Viewable Screen Size
- 6.5"
- Screen Mode
- XGA
- Response Time
- 25 ms

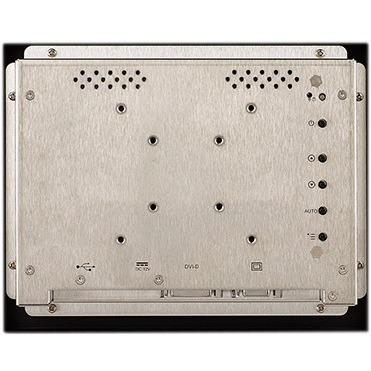

- Mount Type
- Rear Mount
- Backlight Technology
- LED
- Video
- Maximum Resolution
- 640 x 480
- Color Supported
- 16.2 Million Colors
- Native Contrast Ratio
- 600:1
- Brightness
- 800 Nit
- Touchscreen Information
- Touchscreen Type
- 4-wire Resistive

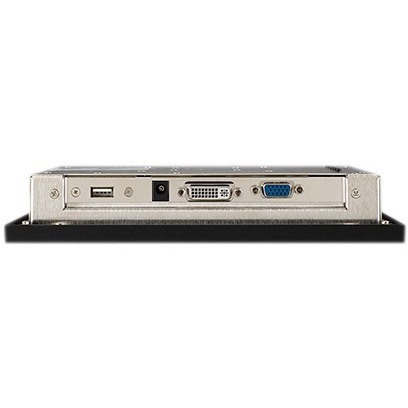

- Interfaces/Ports
- DVI
- Yes
- USB
- Yes
- VGA
- Yes
- Number of USB Ports
- 1
- Power Description
- Operating Power Consumption
- 36 W
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 75 x 75
- Height
- 6.8"
- Width
- 8.6"
- Depth
- 1.5"
- Weight (Approximate)
- 2.65 lb
- Miscellaneous
- Package Contents
- 6.5" VGA Industrial Panel Mount Monitor
- 1 x M Cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA cable 15P(M) 1.8 meter
- 4 x Clamper
- 4 x Screw of clamper M4_25L
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
