Buy CyberPower PDU20MT2F8R 100 - 125 VAC 20A Metered

CyberPower PDU20MT2F8R 100 - 125 VAC 20A Metered

Part: 2097418
Model: PDU20MT2F8R

$103.00

Availability

Out of Stock

General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Type
- PDU

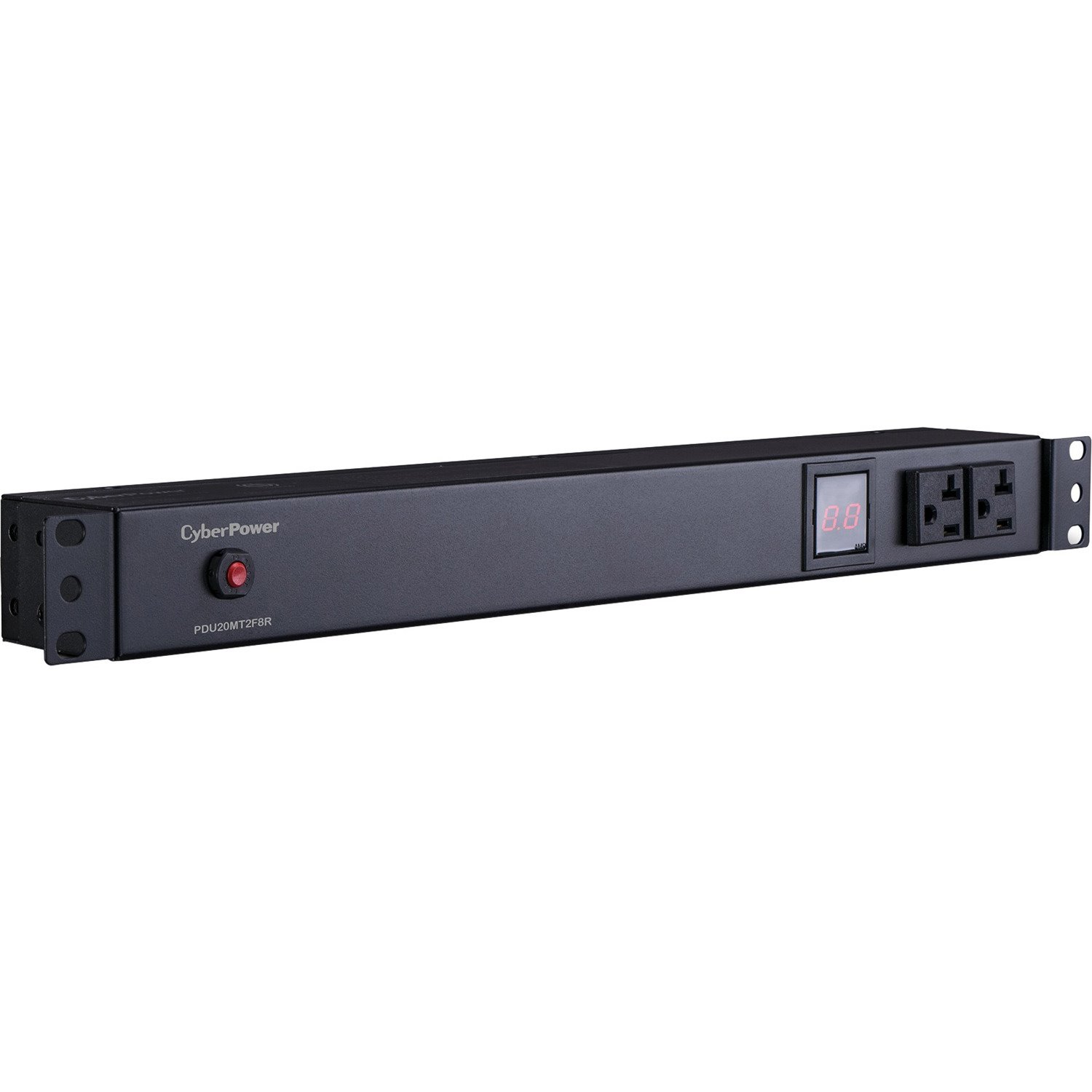

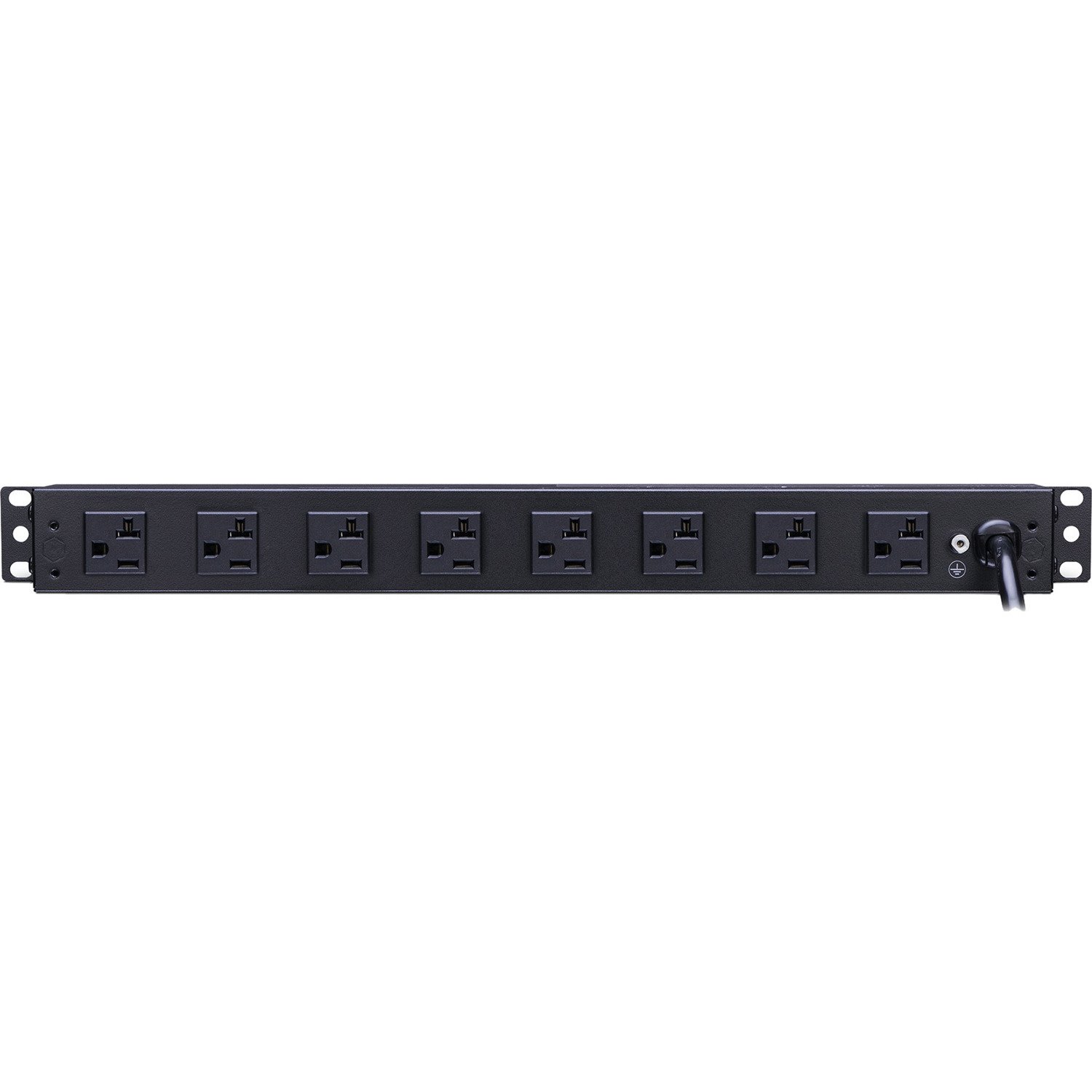

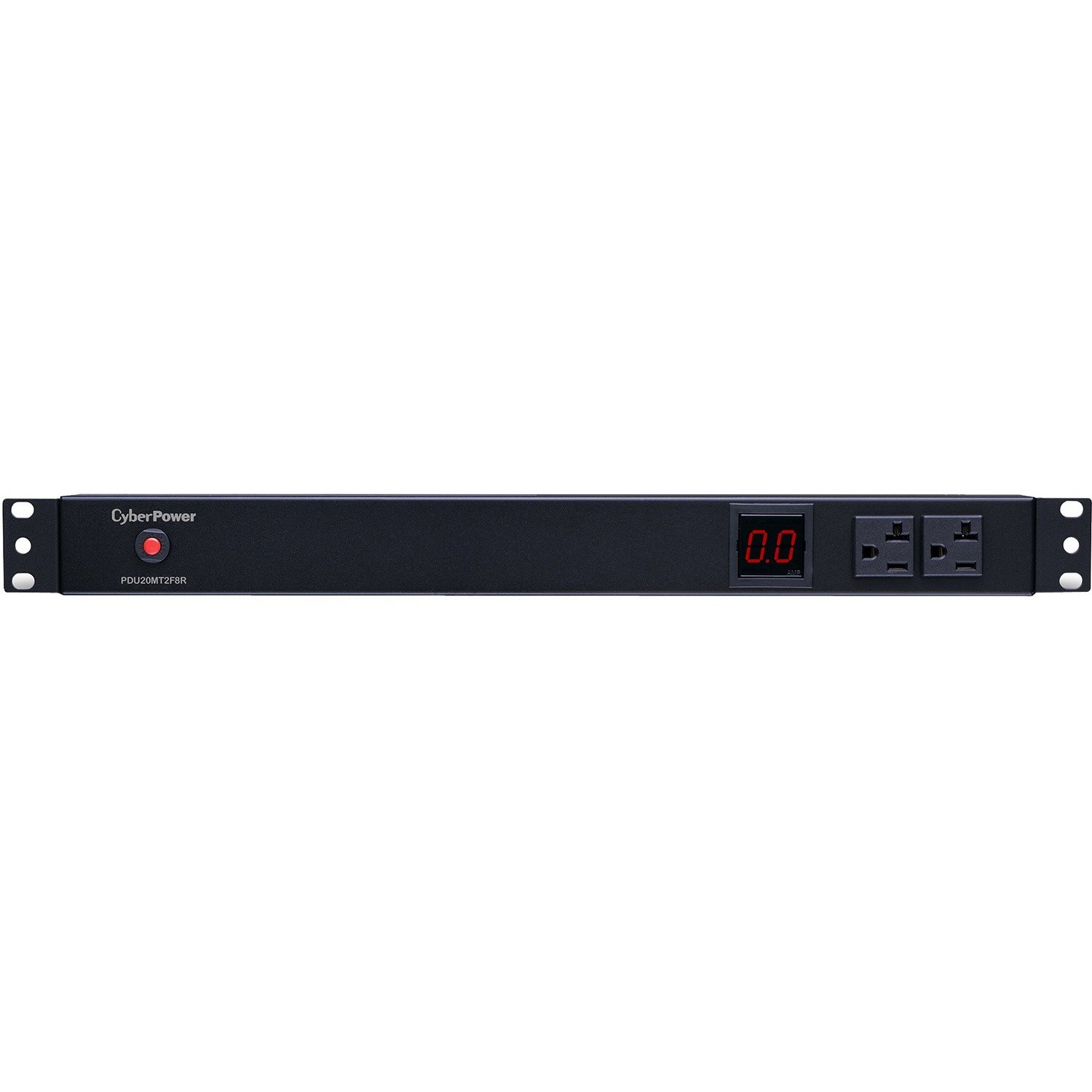

The CyberPower PDU20MT2F8R, a 10-outlet (2 front, 8 rear) rackmount metered power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

Warranty
- Limited Warranty
- Lifetime

Technical Information
- Plug/Connector Type
- NEMA L5-20P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 10 x NEMA 5-20R
- Protection Type
- Overload Protection

Power Description
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC

Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.8"
- Width
- 17.5"
- Length
- 2.3"
- Weight (Approximate)
- 5 lb

Miscellaneous
- Package Contents
- - Metered PDU20MT2F8R 10-Outlets PDU
  - Cord Retention Tray
- Additional Information
- - Physical Dimensions - (WxHxD) (cm) : 44.45 x 4.45 x 5.72 (cm)
  - Physical Dimensions - (WxHxD) (in) : 17.5 x 1.75 x 2.25 (in)
  - Physical Dimensions - (WxHxD) (mm) : 445 x 44 x 57 (mm)
  - Weight (kg) : 2.27
  - Weight (lb) : 5
  - Shipping Dimensions - (WxHxD) (cm) : 17.78 x 6.99 x 46.99 (cm)
  - Shipping - Dimensions (WxHxD, in) : 7.0 x 2.75 x 18.5 (in)
  - Shipping - Dimensions (WxHxD, mm) : 177.8 x 69.85 x 469.9 (mm)
  - Cord Length : 15 ft (4.6 m)
  - Input Frequency Range : 50 Hz - 60 Hz
  - Input Plug Type : NEMA L5-20P
  - Maximum Input Current : 20A
  - Plug Style : Straight (Twist Lock)
  - Meter Readout : Amperage
  - Nominal Output Voltage : 100 - 125 VAC
  - Outlets - Front : 2
  - Outlets - Rear : 8
  - Outlets - Total : 10
  - Outlet Type COMPUTED : 10 - NEMA 5-20R
  - Overload Protection : 20A
  - USB Charge Port : No
  - Adjustable Mounting Brackets : 2 sets (L-Short, L-Long)
  - Color : Black
  - Cord Retention Tray/Cord Organizers : Yes
  - External Site Ground Pin : Yes
  - Form Factors Supported : 1U Rackmount
  - Material of Construction : Metal
  - Rack Height : 1U
  - Style : Rackmount
  - Operating Elevation : 0 - 10000 ft (0 - 3048 m)
  - Operating Relative Humidity : 0 - 95 % (non-condensing)
  - Operating Temperature : 32 - 95 °F (0 - 35 °C)
  - Storage Elevation : 0 - 50000 ft (0 - 15239 m)
  - Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  - Environmental : RoHS Compliant
  - Safety : UL1363 certified by ETL
  - Product Warranty : Limited Lifetime Warranty
- Energy Star
- No
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
