- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- Performance
- Product Type
- Network Camera

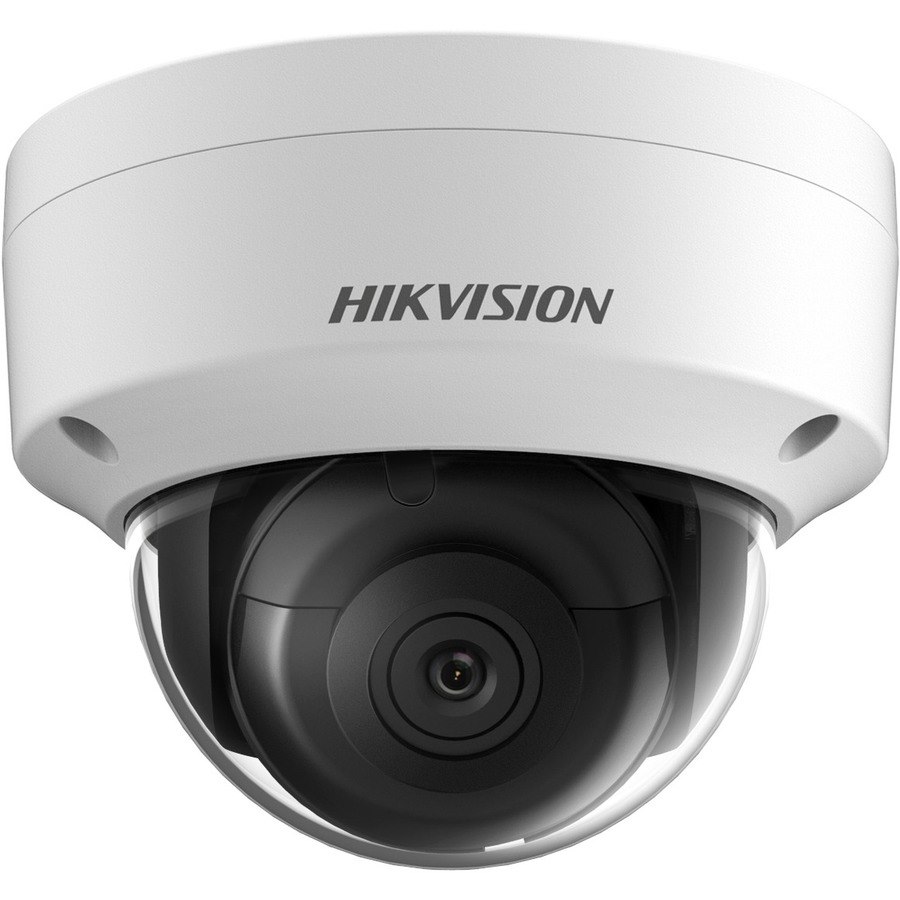

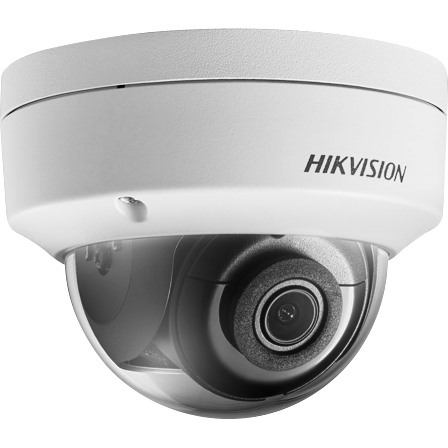

The Hikvision DS-2CD2145FWD-IS Outdoor IR Fixed Network Dome Camera provides high definition output. It supports H.265+ video compression, which assures savings in bandwidth and storage.
- Minimum Illumination: Color: 0.014 lux @ (f/1.6, AGC on) 0 lux with IR
- Up to 2688 x 1520 Resolution @ 30 fps
- 2.8 mm, 4 mm, and 6 mm Lens Options
- H.265+, H.265, H.264+, H.264
- Main Stream 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
- Up to 100 ft (30 m) EXIR 2.0 Range
- 12 VDC and PoE (802.3af)
- Warranty
- Limited Warranty
- 36 Month
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 98.43 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Effective Camera Resolution
- 4 Megapixel
- Video
- Video Formats
- H.264+
- H.264
- H.265
- H.265+
- MJPEG
- Maximum Video Resolution
- 2688 x 1520
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mount Type
- Wall Mount
- Pendant Mount
- Conduit Mount
- Corner Mount
- Pole Mount
- Form Factor
- Dome
- Height
- 3.2"
- Diameter
- 4.4"
- Weight (Approximate)
- 1.10 lb
- Miscellaneous
- Indoor/Outdoor
- Outdoor
