- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Line
- NetXtreme
- Product Type
- 10Gigabit Ethernet Card
Delivering 10 Gigabit Ethernet over an economical cabling infrastructur

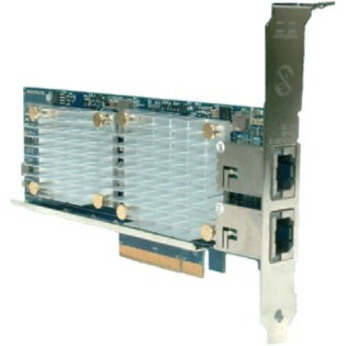

The Broadcom NetXtreme 10GBaseT Network Adapter Family for IBM® System x® features a robust, standards-based portfolio that delivers economical Ethernet features in an industry-standard PCIe Gen 2 form factor, and IBM exclusive ML2 form factor.
IBM ML2 Network Adapters are placed into a ML2 slot on equipped IBM System x servers, preserving a PCIe slot. IBM ML2 Adapters also enable the IBM System x server's management traffic to be combined with the application traffic. By merging this traffic onto a single port, your cabling and switching costs are greatly reduced.
- Warranty
- Limited Warranty
- 1 Year
- Interfaces/Ports
- Host Interface
- PCI Express x8
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- USB
- No
- Serial Port
- No
- Ethernet AUI
- No
- XJACK
- No
- PoE (RJ-45) Port
- No
- Number of Network (RJ-45) Ports
- 2
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 7
- Network & Communication
- Network Technology
- 10GBase-T
- InfiniBand
- No
- Physical Characteristics
- Card Height
- Low-profile
- Form Factor
- Plug-in Card
- Height
- 2.7"
- Width
- 6.6"
- Miscellaneous
- Device Supported
- Server
- Environmentally Friendly
- Yes
