- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Type
- Network Camera

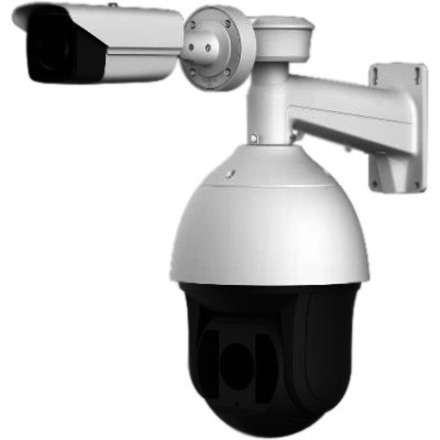

Hikvision DS-2TX3636-25A Thermal Smart Linkage Tracking Systems is formed by one fixed camera and one PTZ camera. The PTZ camera smartly tracks multiple moving targets, and the fixed camera offers the panoramic view. The linkage of both can be realized by the client software.
It provides you with smart detection of moving targets with up to 110 m effective detecting distance (to human targets) and 882 m effective detecting distance (to vehicle targets), and up to 30 targets can be tracked simultaneously. The system mainly applies to major industrial infrastructures requiring perimeter prevention, such as: airport, prison, railway, museum, enterprise, high-end villas and others.
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision Distance
- 656.17 ft
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- MJPEG
- H.265
- H.265+
- H.264+
- H.264
- MPEG-4
- Maximum Video Resolution
- 1920 x 1080
- Lens
- Lens Type
- Zoom
- Minimum Focal Length
- 5.70 mm
- Maximum Focal Length
- 205.20 mm
- Optical Zoom
- 36x
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mount Type
- Wall Mount
- Form Factor
- Bullet
- Height
- 22.6"
- Length
- 27.5"
- Diameter
- 10.5"
- Weight (Approximate)
- 24 lb
